Wilton Classic 400 Series Hargrave C Cla

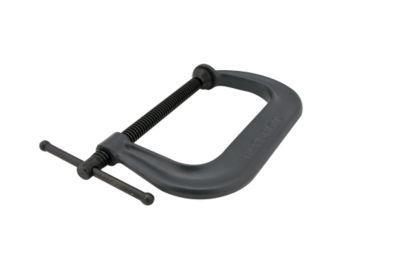

CLASSIC 400 SERIES HARGRAVE

  • Patented Design Frame Geometry Allows For Maximum Strength With Greater Throat Depth and Lower Weight
  • Oscillating Head: High Quality Steel Pad is Built to Last and Provides Firm Gripping Action on Angular Surfaces

PRIMARY USES

  • Steel Fabrication
  • Industrial Maintenance
  • Production
  • Repair Operations

COMMON FEATURES

  • Drop Forged Construction
  • ACME Rolled Spindle
  • Black Oxide Coating
Specifications
Stock
Number
Model Nominal
Opening
Capacity (In.)
Throat
Depth (In.)
Nominal
Rail Size
(In.)
Clamp
Pressure
(Lbs.)
Ship Wt
(Lbs.)
20301 H402 0 – 2 2 1/2 3,500 2
20302 H403 0 – 3 2-3/8 5/8 3,500 2
20303 H404 0 – 4 2-3/4 3/4 6,200 3
20304 H406 0 – 6 3-5/8 3/4 6,600 5
20305 H408 0 – 8 4-1/2 3/4 6,900 9
20306 H410 0 – 10 5-3/8 7/8 8,000 11
20307 H412 0 – 12 5-3/4 7/8 9,500 14



s-h alt WARRANTY AND SERVICE

WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Wilton® tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.



No accessories listed

20301
** H402, COLUMBIAN ECONOMY DROP FORGED C-CLAMP 0 - 2" OPENING CAPACITY ** SHIPS FROM OUR STORE IN MIAMI, FL
Mfg. item #: 20301
WMH20301
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.1019
$15.19

35
20302
** H403, COLUMBIAN ECONOMY DROP FORGED C-CLAMP 0 - 3" OPENING CAPACITY ** SHIPS FROM OUR STORE IN MIAMI, FL
Mfg. item #: 20302
WMH20302
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.1019
$21.27

35
20303
** H404, COLUMBIAN ECONOMY DROP FORGED C-CLAMP 0 - 4" OPENING CAPACITY ** SHIPS FROM OUR STORE IN MIAMI, FL
Mfg. item #: 20303
WMH20303
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.1019
$28.87

35
20304
** H406, COLUMBIAN ECONOMY DROP FORGED C-CLAMP 0 - 6" OPENING CAPACITY ** SHIPS FROM OUR STORE IN MIAMI, FL
Mfg. item #: 20304
WMH20304
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.1019
$44.06

35
20305
** H408, COLUMBIAN ECONOMY DROP FORGED C-CLAMP 0 - 8" OPENING CAPACITY ** SHIPS FROM OUR STORE IN MIAMI, FL
Mfg. item #: 20305
WMH20305
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.1019
$56.21

35
20306
** H410, COLUMBIAN ECONOMY DROP FORGED C-CLAMP 0 - 10" OPENING CAPACITY ** SHIPS FROM OUR STORE IN MIAMI, FL
Mfg. item #: 20306
WMH20306
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.1019
$80.52

35
20307
** H412, COLUMBIAN ECONOMY DROP FORGED C-CLAMP 0 - 12" OPENING CAPACITY ** SHIPS FROM OUR STORE IN MIAMI, FL
Mfg. item #: 20307
WMH20307
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.1019
$108.56

35
