Wilton Strut Cutter

Wilton Strut Cutter has a 1 Year warranty

  • Adustable back guage allows for quick production shearing for uniform lengths
  • The collapsible handle provides easy movement on the job site. Handle doubles as support legs
  • Compact and powerful, the 25 ton cylinder easily pushes through any production job. The quick-coupl connects to any 10,000 psi power supply
  • The 7075-T651 Precision machined, anodized aluminum frame is durable enough to last a lifetime
  • EDM profiled, heat-treated S7 tool steel dies are available in standard and custom profiles. Make thousands of cuts with no waste and no post-cut processing. Custom profiles avilable.
  • Hold any strut securely with the adjustable machined material rest.

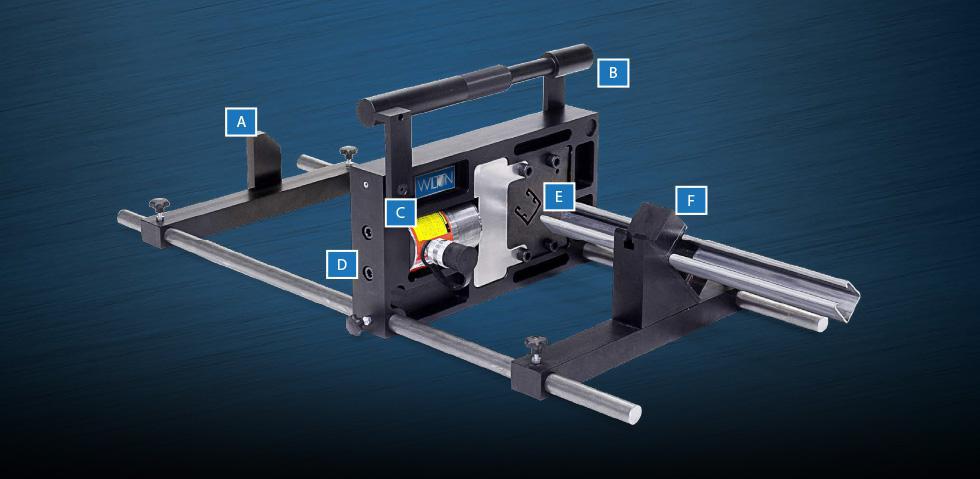

wilton strut cutter points

Ease of Use
A. Back Gauge  Adjustable back gauge allows for quick production shearing for uniform lengths.
B. Collapsible Handle System  The collapsible handle provideseasy movement on the job site. Handle doubles as support legs.

Durable
C. 25 TON HYDRAULIC CYLINDER  Compact and powerful, the 25 ton cylinder easily pushes through any production job. The quick-couple connects to any 10,000 psi power supply.
D. ALUMINUM FRAME  The Wilton Strut Cutters 7075-T651 precision-machined, anodized aluminum frame is durable enough to last a lifetime.

Functionality
E. CUTTING DIES  EDM pro led, heat-treated S7 tool steel dies are available in standard and custom pro les. Make thousands of cuts with no waste and no post-cut processing. Custom pro les available.
F. MATERIAL REST  Hold any strut securely with the adjustable machined material rest.

Detailed Specifications
Wilton Strut Cutter Starter Pack ESP1110
POWER UNIT and HOSE ESP1105
Edwards Strut Pro ESP1100
Deep Strut (In.) 1-5/8 x 1-5/8
Shallow Strut (In.) 1-5/8 x 13/16
Maximum Capacity 12 Gauge
Cylinder (Tons) 25
Stroke (In.)
Height (In.)
Height with Handles (In.) 13
Width (In.) 17
Depth (In.) 5-1/2
Height 9.1000
Length 14.6000
Weight 65.8000
Width 17.6000



SINGLE STRUT CUTTING TIME COMPARISON
Save time and money! The shearing action of the Wilton Strut Cutter provides a burr free cut that re-quires no post processing,nishing, or burr removal.
  Wilton Strut Cutter Reciprocating Saw Abrasive Saw Portaband Saw Metal Cutting Saw
Cutting Cycle 3 Sec 70 Sec 29 Sec 28 Sec 7 Sec
Change Cycle 7 Sec 7 Sec 10 Sec 10 Sec 10 Sec
De-Burring 0 Sec 10 Sec 10 Sec 10 Sec 10 Sec
Total Cut Time 10 Sec 87 Sec 46 Sec 45 Sec 24 Sec
Total Cuts/Hr. 360 41 78 80 150
Total Cuts/Day 2880 328 624 640 1200
LARGE STRUT BATCH CUTTING TIME COMPARISON
Save time and money! The shearing action of the Wilton Strut Cutter provides a burr free cut that re- quires no post processing, nishing, or burr removal
  Wilton Strut Cutter Reciprocating Saw Abrasive Saw Portaband Saw Metal Cutting Saw
Task Time 1 Hour 8.8 Hours 4.6 Hours 4.5 Hours 2.4 Hours
Labor Costs $50 $440 $230 $225 $120
Extra Labor Costs $0 $39 $180 $175 $70



  1 YEAR WARRANTY AND SERVICE
WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Jet tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.







ESP1110
++ WILTON STRUT CUTTER STARTER PAC
Mfg. item #: ESP1110
WMHESP1110
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

701
ESP1105
++ WILTON STRUT CUTTER POWER KIT -
Mfg. item #: ESP1105
WMHESP1105
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

701
ESP1100
WILTON STRUT CUTTER -- WHILE SUPPLI
Mfg. item #: ESP1100
WMHESP1100
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

701
