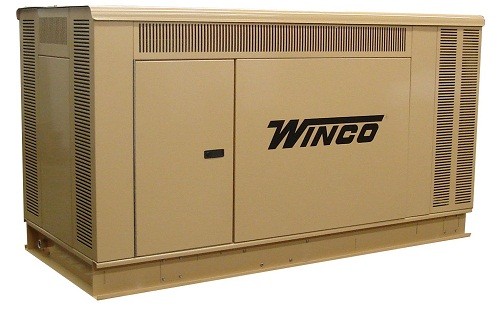

Winco PSS40 Liquid-Cooled Packaged Stand

Owner's Manual

Our PSS40 is equipped with a 6-cyl GM 4.3L  liquid cooled engine that can run off of NG or LP, and can start up to a 12HP Code G motor. This is a 2-wire unit and comes with a mainline circuit breaker as standard equipment. This generator is available in single phase 120/240V, and three phase 120/208V, 120/240V, 277/480V.

ENGINE FEATURES
The 4 cylinder, overhead valve GM 3.0L engine meets EPA/Carb Emission Regulations for LSI Engines. All engine functions are controlled by an engine mounted ECM. The engine features include an electronic ignition, engine blockheater and vapor fuel system. A critical grade muffler is installed to reduce engine noise levels. Battery rack, cables, and battery tender (charger) are factory installed. A BCI Group 24 650 CCA battery must be purchased separately. Engine cooling is provided by a unit mount radiator. The engine is equipped with a belt driven pusher type fan.

GENERATOR FEATURES
The generator is a single bearing rotating field generator mounted to the engine flywheel via dual flex drive discs. Three phase generators have 12 lead broad range reconnectable stators; single phase generators are 4 lead. An external voltage regulator maintains proper voltage output, accurate to +/- 1%. The engine generator combination has the ability to start and operate motors up to 8 hp Code G. Mainline circuit breaker included for generator protection.
OPTIONAL Excitation Boost System available.

Specifications
MODEL NUMBER PSS30-3 PSS30-4 PSS30-17 PSS30-18
STANDBY RATING POWER OUTPUT (60HZ) 120/240V, 1-Phase, 1.0 p.f. 120/208V, 3-Phase, .8 p.f. 120/240V, 3-Phase, .8 p.f. 277/480V, 3-Phase, .8 p.f.
KW (L.P. GAS) 40.0 40.0 40.0 40.0
KVA (L.P. GAS) 40.0 50.0 50.0 50.0
AMPS (L.P. GAS) 167 139 120 60
CB AMPS (L.P. GAS) 175 125 125 60
KW (NATURAL GAS) 40.0 40.0 40.0 40.0
KVA (NATURAL GAS) 40.0 50.0 50.0 50.0
AMPS (NATURAL GAS) 167 139 120 60
CB AMPS (NATURAL GAS) 175 125 125 60
Derating Factors: Temperature - No derate up to 122 degrees F; Elevation - 3.5% per 1,000 feet elevation above 6,500 feet

No Listed Accessories





PSS30-3
Mfg. item #: PSS30-3
WINPSS30-3
lease to own for as little as:$297 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$14,841.00

2031
PSS30-4
Mfg. item #: PSS30-4
WINPSS30-4
lease to own for as little as:$303 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$15,164.00

2031
PSS30-17
Mfg. item #: PSS30-17
WINPSS30-17
lease to own for as little as:$303 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$15,164.00

2031
PSS30-18
Mfg. item #: PSS30-18
WINPSS30-18
lease to own for as little as:$303 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$15,164.00

2031
