JET Wire Rope Pullers

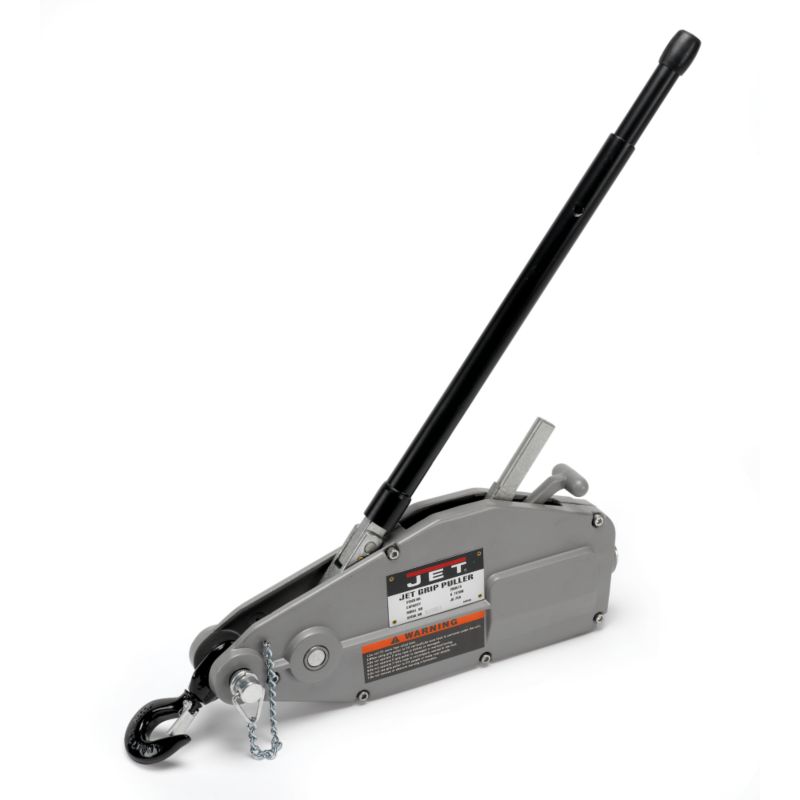

Grip Pullers
JCP Model
Web Strap
Warranty

Features:

May be used in any position to lift, pull, lower or stretch heavy loads
Operated manually by engaging clutch and working the handle
Uses standard ASA wire rope
66 feet of wire rope comes standard (On part #'s that end with a K)
Longer length wire rope may be used with pulley blocks
Shear pins in the handle will break under severe overload (extra pins are provided and are easily installed)
Safety latches are standard

Specifications
Stock#	286575K	286515K	286530K
Model#	JG-75A	JG-150A	JG-300A
Pulling Capacity (ton)	3/4	1-1/2	3
Lifting Capacity (lbs)	1650	3300	6600
Handle Length Min/Max (in)	17-3/4 / 29-1/8	31-1/2 / 47-1/4	31-1/2 / 47-1/4
Distance Per Stroke (in)	2	2.17	1.10
Dimensions (LxWxH) (in)	16-3/4 x 2-1/2 x 9-1/4	21-1/2 x 3-7/8 x 11	26 x 4-1/2 x 12-3/4
Wire Rope Diameter (in)	5/16	7/16	5/8
Approx Net Weight (lbs)	36	48	123

JCP Models:

General purpose cable puller designed to lift, lower, stretch or pull heavy loads
1 ton to 4 ton capacities
Lightweight zinc plated steel construction to resist corrosion
Double solid cast aluminum ratchet wheel brake system hold load securely in any position
Concealed spring lever control prevents accidental release
Drop forged hooks with safety latches standard
Aircraft quality 3/16 cable
Snatch block included with JCP-2 and JCP-4 models
Complies with ANSI/ASME B30.21 standards

Specifications
Part Number	180410	180420	180440
Capacity	1 ton	2 ton	4 ton
Lever Ratio	18:1	36:1	36:1
Max Lift Height	12 '	6 '	6 '
Lever Length	16-1/2"	16-1/2"	17-1/8"
Minimum Distance Between Hooks	17"	21"	22"
Model Number	JCP-1	JCP-2	JCP-4
Brand	Jet	Jet	Jet
Height	5 inch	5.4 inch	29.2 inch
Width	3.6 inch	25.3 inch	6.2 inch
Length	25.3 inch	4.2 inch	4.3 inch
Net Weight	8.55 pound	9.05 pound	13.1

Caution: Before installation read owners manual for additional warnings and precautions. Improper use and overloading can result in injury. Do not exceed rated capacity. Do not use to lift people or loads over people. Not for use in an explosive environment. Read and follow all instructions.

352100 JWS-2A 1 ton single pull web strap puller

JETs new JWS Series Web Strap Hoists provide unrivaled safety, dependability and long service life for a wide range of lifting, pulling and holding operations. They are precision-engineered and constructed of premium materials to ensure reliability, boost productivity and minimize downtime.

JWS-2A, 1 ton and JWS-3A 1-1/2 Ton Single Pull Web Strap Pullers have a Lifetime warranty

Isolated ratcheting gear, oversized strap guide and bottom block assembly guides the web strap smoothly onto the drum and prevents the strap from binding.
Corrosion-resistant stainless steel springs, bronze bushings, drum shafts, self lubricating bearings and drop-forged steel hooks for added durability
1:1 gear ratio allows for low handle effort and up to 1-1/2 inch lift per 45 degree handle stroke
Friction brake design and double interlocking pawls allow for micro-inching when lowering loads
The ratcheting drum releases the web strap slack without freefalling
Open housing design for quick cleaning and fast daily inspections
Larger, easy opening, 360 degree swivel hooks with safety latches
This Product Complies with ASME/ANSI Standard B30.21

Detailed Specifications
Part Number	352100	352110
Single Pull Capacity (Ton)	1	1-1/2
Single Pull Distance Min. (In.)	20	21
Single Pull Distance Max. (In.)	72	73
Hook Type	Standard Latching Hooks
Hook Throat Opening (In.)	0.8
Headroom (In.)	13-1/2
Handle Length (In.)	12-4/5	15
Strap Length (Ft.)	10
Overall Dimensions (L x W x H) (In.)	13-1/2 x 4.5 x 4
Weight (Lbs.)	7-1/2	9
Height	4
Length	13.5
Weight	9	11
Width	4.5

352105 jws-25a 1 ton double pull web strap puller

JWS-25A, 1 Ton and JWS-4A 1-1/2 Ton Double Pull Web Strap Pullers have a Lifetime warranty

Convertible web strap hoist quickly changes from a single line to a double line
Isolated ratcheting gear, oversized strap guide and bottom block assembly guides the web strap smoothly onto the drum and prevents the strap from binding.
Corrosion-resistant stainless steel springs, bronze bushings, drum shafts, self lubricating bearings and drop-forged steel hooks for added durability
1:1 gear ratio allows for low handle effort and up to 1-1/2 inch lift per 45 degree handle stroke
Friction brake design and double interlocking pawls allow for micro-inching when lowering loads
The ratcheting drum releases the web strap slack without freefalling
Open housing design for quick cleaning and fast daily inspections
Larger, easy opening, 360 degree swivel hooks with safety latches
This Product Complies with ASME/ANSI Standard B30.21

Detailed Specifications
Part Number	352105	352115
Single Pull Capacity (Ton)	1/2	3/4
Single Pull Distance Min. (In.)	72	73
Single Pull Distance Max. (In.)	20	21
Double Pull Capacity (Ton)	1	1-1/2
Double Pull Distance Min. (In.)	25	21
Double Pull Distance Max. (In.)	75	76
Hook Type	Standard Latching Hooks
Hook Throat Opening (In.)	0.8
Headroom (In.)	20	21
Handle Length (In.)	12-4/5	15
Strap Length (Ft.)	10
Overall Dimensions (L x W x H) (In.)	20 x 4.5 x 4	21 x 4.5 x 4
Weight (Lbs.)	10	12
Height	4
Length	20	21
Weight	12	14
Width	4.5

Models and Accessories
352100	JWS-2A 1 Ton Single Pull Web Strap Puller
352105	JWS-25A 1 Ton Double Pull Web Strap Puller
352110	JWS-3A 1-1/2 Ton Single Pull Web Strap Puller
352115	JWS-4A 1-1/2 Ton Double Pull Web Strap Puller

WARRANTY AND SERVICE

WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JetÂ® tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.
