Woodward Fab English Wheels

 Lil WheelieBench Top 10 inches Throat English Wheel WFEW10  Lil Wheelie Bench Top 16 inch Throat English Wheel WFEW16 Woodward Fab English Wheel WFEW-2  English Wheel 37 3/4 inch Throat Depth WFEWC24 Heavy Duty 24 inch Cast Iron English Wheel
WFEW10 Lil WheelieBench Top 10 inches Throat English Wheel WFEW16 Lil Wheelie Bench Top 16 inch Throat English Wheel WFEW-2 English Wheel
28 inch Throat Depth
 WFEW English Wheel
37 3/4 inch Throat Depth
WFEWC24 Heavy Duty 24 inch Cast Iron English Wheel
WFEW44 Monster Wheel 44 inch English Wheel WFEW32 Professional 31-3/4 inch English Wheel WFEW-45T 43 inch Throat Depth English Wheel WFEW-Center English Wheel Metal Forming Center WFEW-Super Super 45 inch English Wheele
WFEW44 Monster Wheel
44 inch English Wheel
WFEW32 Professional
31-3/4 inch English Wheel
WFEW-45T 43 inch Throat Depth English Wheel WFEW-Center  English Wheel Metal Forming Center WFEW-Super Super 45 inch English Wheele

Upgrade Your Metal Forming Capabilities with English Wheel Products

Want to ensure smooth and precise metal forming operations? You don’t have to spend excessive amounts of time and money on different types of equipment. Just look to Woodward Fabs English wheels for sale.

Woodward Fabs English Wheel inventory comprises sheet metal fabrication tools utilized to form flat pieces of steel or aluminum. The product is designed to help form compound curves (curves with multiple contours). It can maintain smooth surfaces when working on sheet metal.



Models and Accessories
WFEW10 Woodward Fab Lil Wheelie 10 inch English Wheel with 7 Anvils
WFEW16 Woodward Fab Lil Wheelie 16 inch English Wheel with 7 Anvils
WFEW-2 Woodward Fab 28 inch English Wheel with 6 Anvils
WFEW Woodward Fab 37-3/4 inch English Wheel with 6 Anvils
WFEWC24 Woodward Fab Heavy Duty 24 inch Cast Iron English Wheel with 6 Anvils
WFEW44 Woodward Fab 44 inch Monster English Wheel with 5 Anvils
WFEW32 Woodward Fab 31-3/4 inch Professional English Wheel with 8 Anvils
WFEW-45T Woodward Fab 43 inch English Wheel with 10 Anvils
WFEW-CENTER Woodward Fab English Wheel Metal Forming Center
WFEW-45SUPER Woodward-Fab 45 inch Super English Wheel
WFEW-2-BAND Woodward Fab English Wheel Rubber Band

English Wheel Metal Shaping and Forming Tool

Metal forming or shaping involves different equipment and machines that perform certain processes on the sheet metal. Want to ensure smooth and precise metal forming operations? You don’t have to spend excessive amounts of time and money on different types of equipment. Do check Woodward Fab’s English Wheel Metal Shaping equipment before you decide on a fabrication tool.

English Wheel, also known as an English wheeling machine, is employed to shape different metals into compound curves (curves with multiple contours). Woodward Fab’s English Wheel inventory comprises sheet metal fabrication tools are using to form flat pieces of steel or aluminum. It can create smooth surfaces.

Features of Woodward Fab Cast Iron English Wheel

Woodward Fab has vast experience and expertise in manufacturing high-quality and extremely efficient wheeling machines. The following features of our English wheel metal shaping tools have contributed to their popularity.

  • This Cast Iron English Wheel features a micro-adjustable anvil adjustment wheel, which enables general metal fabrication, and easy fabrication of panels for automotive applications.
  • They are available in throat depths ranging from 10″ to 45 ″.
  • They are equipped with a quick cam handle release, which helps release the workpiece when the task finishes.
  • Most models are offered with a floor stand, and a few of them like the heavy-duty cast-iron English Wheel Kit come with anvil storage racks and floor levelers.
  • All models enable quick wheel change without tools.
  • Our English Wheel Kit will help you stretch, and custom form shapes such as custom motor cycles, hot rods, metal art, and restoration in 16-gauge steel.

Design and Working of Our English Wheels

Our English Wheels features a lower anvil wheel and an upper flat wheel. You can achieve different radii by changing the lower anvil wheel of the machine. These machines shape metals such as aluminum, and steel. These materials are pushed back and forth between the lower and upper wheels of the wheeling machine.

A small strip of the metal is repeatedly passed between the two wheels; thus, the metal makes a contact with them. This strip is stretched to make the wheeling machine work on it. The material assumes a curved shape due to this stretching, and after passing it through the two wheels repeatedly. Different effects and shapes can be achieved by rolling in different angles and directions.

How to Use an English Working Wheel

Here is the list of some important steps that will surely guide you on how to use this metalworking tool. So, let’s take a look at them.

  • The first and foremost important thing to keep in mind while using English Wheel for sale is to select appropriate dies. While buying an English Wheel metal shaping tool, make sure you are supplied with the right set of anvil wheel dies that play a vital role in the metal shaping process. You can choose the die based on the type of product you wish to make.
  • Fixing the dies to the frame comes next once done with the dies selection. English Wheels features a C frame with two grooves. Additionally, the anvil wheels with an axel extend on the opposite side. You can place dies into the grooves and quickly start the metal-forming operation.
  • The tool features a handle, which is attached under the lower jaw. It is used to adjust the gap between the wheels. The gap adjustment mainly depends on the type of forming required, the type of metal utilized, and its thickness.
  • Start the metal forming process by inserting the sheet metal between the rolling and anvil wheels. You should apply appropriate pressure while moving the metal piece to avoid unwanted slips or skips through tools.
  • Remove the sheet metal once you get the desired shape.

Industrial Applications of Woodward Fab English Wheel

English wheels are used when low volumes of double or compound curved panels are required. Owing to its beneficial features, it has been widely applying in the following industries:

  • Aircraft industries
  • Metal art and restoration
  • Custom motorcycles
  • Car restoration
  • Automotive
  • Construction
  • Robotics
  • Electronics
  • Energy sectors



Lil Wheelie®Bench Top 10″ Throat English Wheel WFEW10

Lil WheelieBench Top 10 inches Throat English Wheel WFEW10

Bench top wheel for small fabrications

Description

  • 10 inches Throat Depth
  • 3 inches x 1 inches Top Wheel
  • Includes 7 Lower Anvils (6 Radius, 1 Flat)
  • Rigid Double Wall 1/4 inches solid plate construction
  • Smooth up and down anvil adjustment with bronze linear bearing
  • Small size ideal for small fabrications, trim, jewelry and hobbyists
  • Weight 41 lbs
  • Dimensions 24 × 19 × 12 in







Lil Wheelie®Bench Top 16″ Throat English Wheel WFEW16

Lil Wheelie Bench Top 16 inch Throat English Wheel WFEW16

Bench top wheel for small fabrications

Description

  • 16 inch Throat Depth
  • 6 inch x 1 inch Top Wheel
  • Includes 7 Lower Anvils (6 Radius, 1 Flat)
  • Rigid Double Wall 1/4 inch solid plate construction
  • Smooth up and down anvil adjustment with bronze linear bearing
  • Small size ideal for small fabrications, trim, jewelry and hobbyists
  • Weight 73 lbs
  • Dimensions 24 × 19 × 12 in







WFEW-2

Whether it is car restoration shop or a metal fabrication unit, an English Wheel is a prudent investment that helps you work effectively with sheet metal. This machine helps you create compound curves for various projects. Woodward Fab offers you an expansive English Wheel range meant to fit varied industrial requirements.

Choose from our basic model that can be used for small jobs such as motorcycle tanks, seat cowls and aircraft parts, or opt for the more advanced machine that can be used as a multi-station work center. We encourage you to browse through the various English Wheels available for ready shipping.

Should you need more information pertaining to a model please talk to our Technical Team that will enable you to make the right choice based on the right throat depth, wheel size, and weight. Select models are also available with a free User Guide Video. Your chosen English Wheel can he shipped to your desired destination.

Our Best Selling English Wheel

  • 28 inch Throat Depth
  • 8 inch x 2 inch Top Wheel
  • Includes 6 Lower Anvils (Flat, 2-3/8 inch, 3 inch, 5 inch, 8-1/2 inch, and 12 inch radius)
  • Includes Floor stand
  • Quick Release Lower Anvil
  • Overall Height 60 inch
  • Work Height 47 inch
  • Weight 195 lbs
  • Dimensions 48 x 40 x 16 inch
  • Ships by Truck Freight





English Wheel 37 3/4″ Throat Depth

English Wheel 37 3/4 inch Throat Depth

Description

  • 37 3/4 inch throat depth
  • 6 inch top wheel for easy operation
  • Extra high throat
  • Works up to 1/16 inch mild steel
  • Wheel can be rotated 90 degrees for odd shaped parts
  • Cam operated quick release lower anvil
  • Polish wheel with precision ball bearings
  • Includes 6 pieces set anvils
  • Floor stand included
  • Weight 300 lbs
  • Dimensions 45 × 57 × 12 in



Heavy Duty 24″ Cast Iron English Wheel

Woodward Fab WFEWC24 Heavy Duty 24 inch Cast Iron English Wheel

Woodward-Fab Cast Iron English Wheel

Engineered to perform superbly and free from defects, Woodward Fab cast iron English wheels are offered at affordable prices. With the Woodward Fab English wheels, you will get outstanding results with minimal effort. To extend the tool’s service life, we recommend you to coat the exposed cast iron surface with light oil. Corrosion can be prevented this way. In addition, grease/ lubricate the adjusting block and the driving shaft of the unit on a regular basis. These tips enhance the machine’s efficiency and contribute to their unfailing service for years.

  • 24 inch throat depth
  • 60 inch over all height
  • 7 3/4 inch diameter x 2 3/4 inch wide top wheel for easy rolling
  • Foot operated tensioner -plus handy hand wheel
  • Includes floor stand with anvil storage racks and floor levelers
  • Includes 6 lower hardened and polished anvils
  • WEIGHT 350 LBS
  • Dimensions 48 × 34 × 36 in

Truck freight item





english wheel

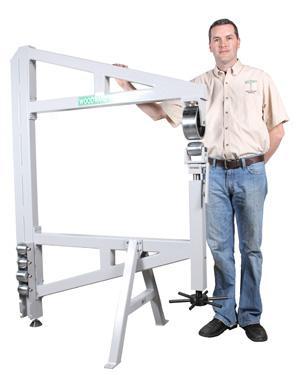

MONSTER WHEEL ENGLISH WHEEL WFEW44

  • A Whopping 44 inch of throat depth
  • Work up to 1/16 inch mild steel
  • 72 inch height
  • Large 7 inch top wheel reduces fatigue
  • Heavy boxed construction
  • Super wide 3 inch bottom anvils
  • Quick release bottom anvil
  • Smooth precsion ball bearings
  • Hands free foot operated height adjustment
  • Includes4 piece set of radius anvils and one flat anvil
  • Weight 400 pounds
  • Dimensions 64 × 64 × 24 in



 Woodward Fab Professional English Wheel

 Woodward Fab Professional English Wheel

  • 31 3/4 inch of throat depth
  • Work up to 1/16 inch mild steel
  • 68 inch Height, 45 inch Depth, 26 inch Width
  • Large 7 3/4 inch x 2-3/4 inch, High Polish top wheel with precision bearings
  • Heavy duty fabricated steel frame
  • wide 2-3/4 inch bottom anvils
  • Quick release bottom anvil
  • Smooth precision ball bearings
  • Hands free foot operated height adjustment
  • Includes 7 piece set of radius anvils and one flat anvil
  • Weight 616 lbs
  • Dimensions 69 × 50 × 12 in





English Wheel 43″ Throat Depth

English Wheel 43 inch Throat Depth

  • 43 inch Throat Depth
  • Work up to 1/16 inch mild steel
  • Height 63 1/2 inch
  • 6 inch top wheel for easy rolling
  • Cam operated quick release lower anvil
  • Polished wheels with precision ball bearings
  • Wheels can be rotated 90 degrees for those odd shaped parts’
  • Hands free foot operated height adjustment
  • Constructed from heavy 5 inch boxed tube
  • Includes floor stand
  • Includes 4 top wheels and 10 lower anvils
  • Weight 560 pounds
  • Dimensions 67 × 60 × 17 in





English Wheel Metal Forming Center

English Wheel Metal Forming Center

Woodward-Fab English Wheel - FABRICATION STATION

  • Professional Metal Forming Center
  • 33 inch Throat Depth English Wheel with 8 inch Dia Top Wheel for Easy Rolling and 8 Precision Anvils
  • 3-1/2 inch Throat Depth Foot Operated Shrinker Stretcher Machine with adjustable tensioner
  • 12 inch leather Shot bag on it’s own beating station
  • 6 inch steel doming head, and dedicated shaping station for additonal removable heads
  • 3-1/2 inch Dia locking Urethane Casters
  • Weight 580 pounds
  • Dimensions     65 × 65 × 18 in









Woodward-Fab 45″ Super English Wheel

Woodward-Fab 45 inch Super English Wheel

  • Industrial 45 inch Throat Depth
  • Work up to 1/16 inch mild steel
  • Height 63 inch
  • 8 inch top wheel for easy rolling
  • Cam operated quick release lower anvil
  • Polished wheels with precision ball bearings
  • Hands free foot operated height adjustment
  • Ridgid Heavy Wall Boxed Tube Construction
  • Includes floor stand
  • Includes 6 lower anvils with precision bearings
  • Weight 725 pounds
  • Dimensions  65 × 65 × 18 in







Woodward Fab English Wheel Rubber Band

Woodward Fab English Wheel Rubber Band WFEW-2-BAND

Woodward Fab Rubber Band for 8 inch English Wheel

WFEW-2-BAND

  • Improves Tracking
  • Protects delicate work piece finishes
  • Fits English Wheels with 8 inch diameter top wheels. Specifically designed for our WFEW-2 English Wheel
  • 2 inch Width
  • Made from 90-95 durometer hardness Urethane for super long life
  • Weight  1 lbs
  • Dimensions  11 × 9 × 5 in









WFEW10
LIL WHEELIE BENCH TOP ENGLISH WHEEL 18 GAUGE (.040) MILD STEEL (WGT = 150 LBS)
Mfg. item #: WFEW10
HECWFEW10
Call for freight quote on this item or we will confirm freight charges before shipping.1
NEW ITEM
$243.74

239
WFEW16
ENGLISH WHEEL 28 THROAT DEPTH WITH STAND 18 GAUGE (.040) MILD STEEL (WGT = 150 LBS)
Mfg. item #: WFEW16
HECWFEW16
Call for freight quote on this item or we will confirm freight charges before shipping.1
NEW ITEM
$348.48

239
WFEW-2
ENGLISH WHEEL 28 THROAT DEPTH WITH STAND 1/16 (16 GA) MILD STEEL (WGT = 150 LBS)
Mfg. item #: WFEW-2
HECWFEW-2
Call for freight quote on this item or we will confirm freight charges before shipping.1
$768.26

239
WFEW
ENGLISH WHEEL 37 3/4 THROAT DEPTH 1/16 (16 GA) MILD STEEL (WGT = 300 LBS)
Mfg. item #: WFEW
HECWFEW
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,025.67

239
WFEWC24
WOODWARD-FAB 24 CAST IRON ENGLISH WHEEL WITH FLOOR STAND 16 GAUGE MILD STEEL (WGT = 350 LBS)
Mfg. item #: WFEWC24
HECWFEWC24
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,580.09

239
WFEW44
ENGLISH WHEEL 44 THROAT DEPTH ** WEIGHT = 400 LBS
Mfg. item #: WFEW44
HECWFEW44
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

970
Call for price. HECWFEW32
Call for price. HECWFEW-45T
WFEW-CENTER
WOODWARD-FAB FORMING CENTER 18 GAUGE MILD STEEL (WGT = 580 LBS)
Mfg. item #: WFEW-CENTER
HECWFEW-CENTER
lease to own for as little as:$73 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$3,665.30

239
Call for price. HECWFEW-45SUPER
WFEW-2-BAND
RUBBER BAND FOR ENGLISH WHEEL PROTECTS FINISHES AND IMPROVES TRACKING (WGT = 1 LBS)
Mfg. item #: WFEW-2-BAND
HECWFEW-2-BAND
Call for freight quote on this item or we will confirm freight charges before shipping.1
NEW ITEM
$21.62

239
