Woodward Fab Multi Press

Standard Equipment WFP12

  • Super Heavy Duty
  • Features 2 inch diameter ram
  • Constructed from 1/2 inch thick plate
  • Creates up to 3 tons of force
  • Throat depth 12 inch
  • Throat height 7 1/2 inch
  • Maximum opening 4 1/2 inch
  • Table 4 inch x 7 inch
  • Handle 30 inch
  • Size 21 inch deep x 19 inch high 5 inch wide
  • Weight 165 pounds
Accessories
WFP12-L Louver Tool
WFP12-N Corner Notcher
WFP12-B Bending Brake Die
WFP12-S Shear Die
WFP12-R Radius Die Set

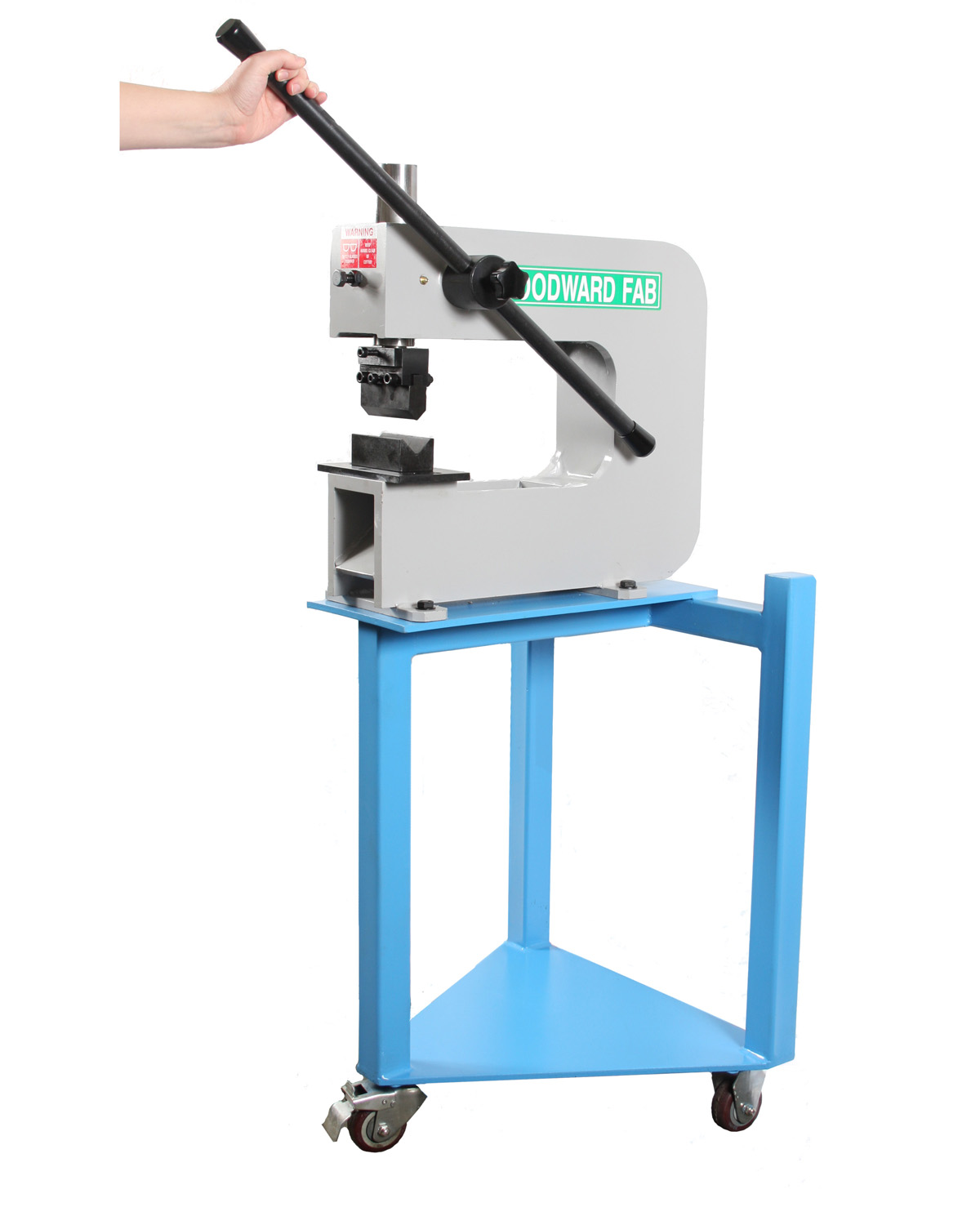

WFP12
BENCH PRESS **WGT = 165 LBS
NOTE: SUPER HEAVY DUTY, 1/2 THICK PLATE CONSTRUCTION, CREATES UP TO 3 TONS OF FORCE, 12 THROAT DEPTH, 7-1/2 THROAT HEIGHT, MAXIMUM OPENING 4-1/2, TABLE 4 X 7,HANDLE 30 - UP TO 3 TONS FORCE
Mfg. item #: WFP12
HECWFP12
Call for freight quote on this item or we will confirm freight charges before shipping.1
$438.74

30

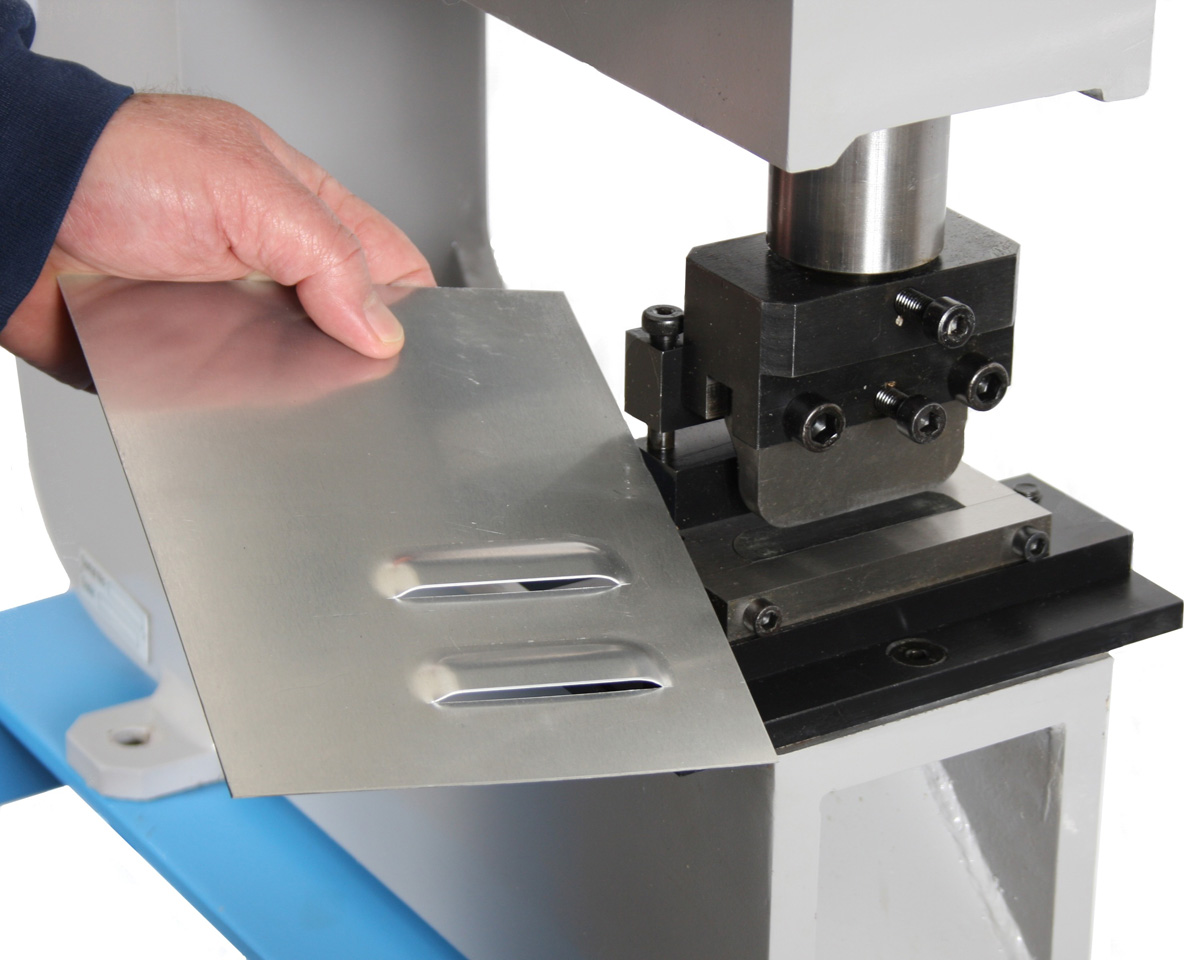

WFP12-L
LOUVER DIE **WGT = 6 LBS
NOTE: LUOVER TOOL FOR WFP12, 3/16 X 2-3/4 - UP TO .040 MILD STEEL OR 1/16 ALUMINUM
Mfg. item #: WFP12-L
HECWFP12-L
"Ships by UPS, see freight calculator at checkout."2
$373.74

30

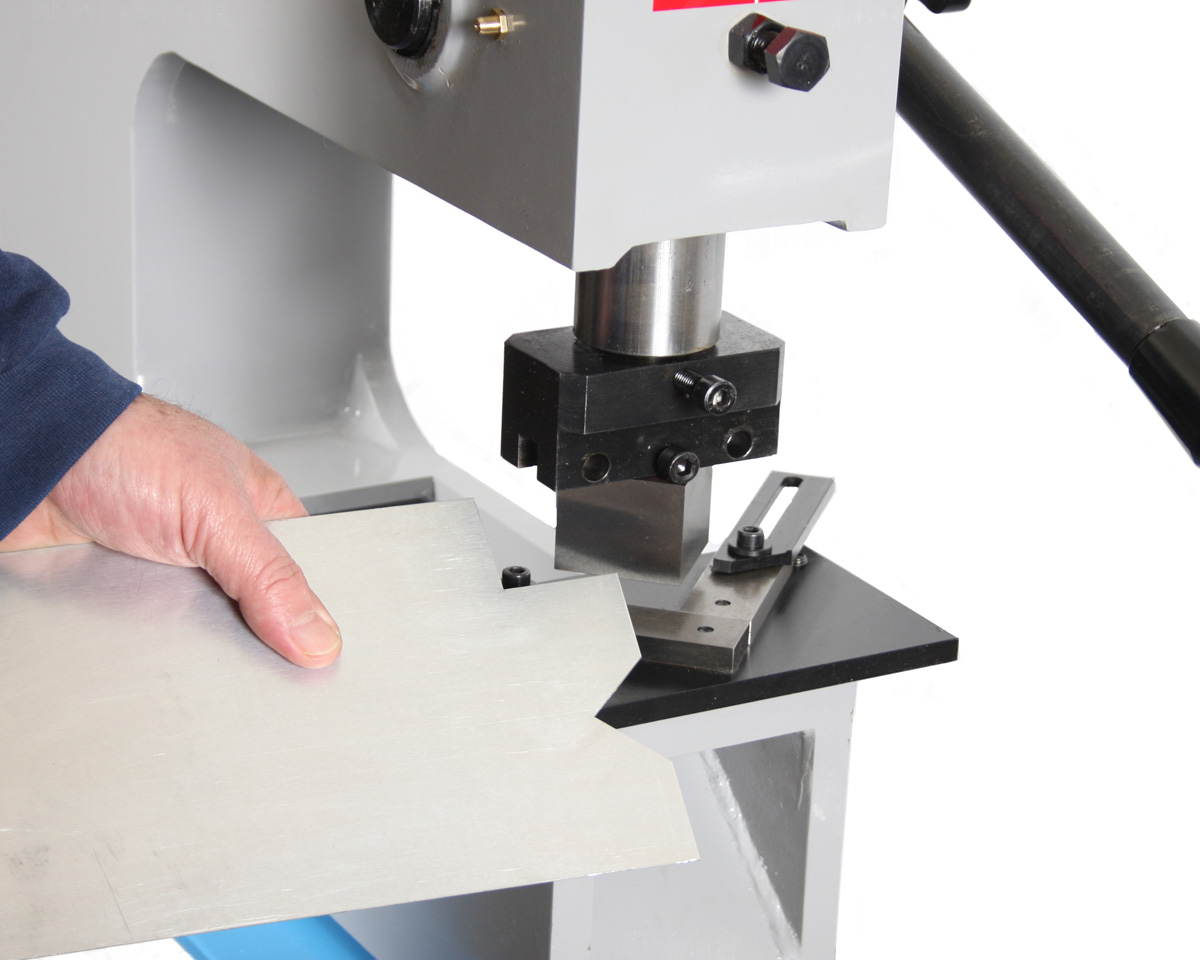

WFP12-N
CORNER NOTCHING DIE **WGT = 6 LBS
NOTE: CORNER NOTCHING DIE FOR WFP12, 1-3/4 X 1-3/4 - UP TO 1/16 STEEL
Mfg. item #: WFP12-N
HECWFP12-N
"Ships by UPS, see freight calculator at checkout."2
$138.62

30

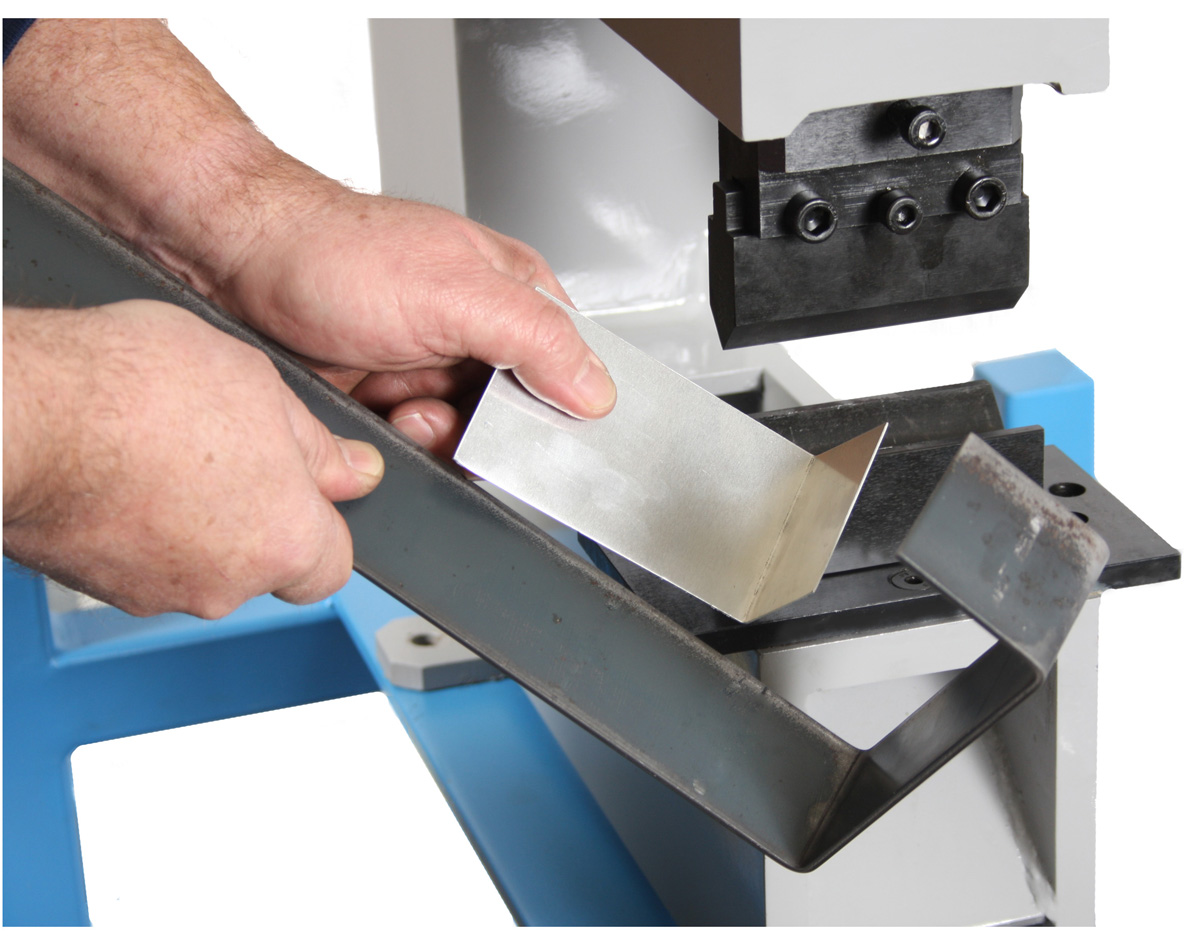

WFP12-B
90 DEGREE BENDING DIE **WGT = 6 LBS
NOTE: 90 DEGREE BENDING BRAKE DIE FOR WFP12, 4 LENGTH - UP TO 3/16 STEEL
Mfg. item #: WFP12-B
HECWFP12-B
"Ships by UPS, see freight calculator at checkout."2
$147.29

30

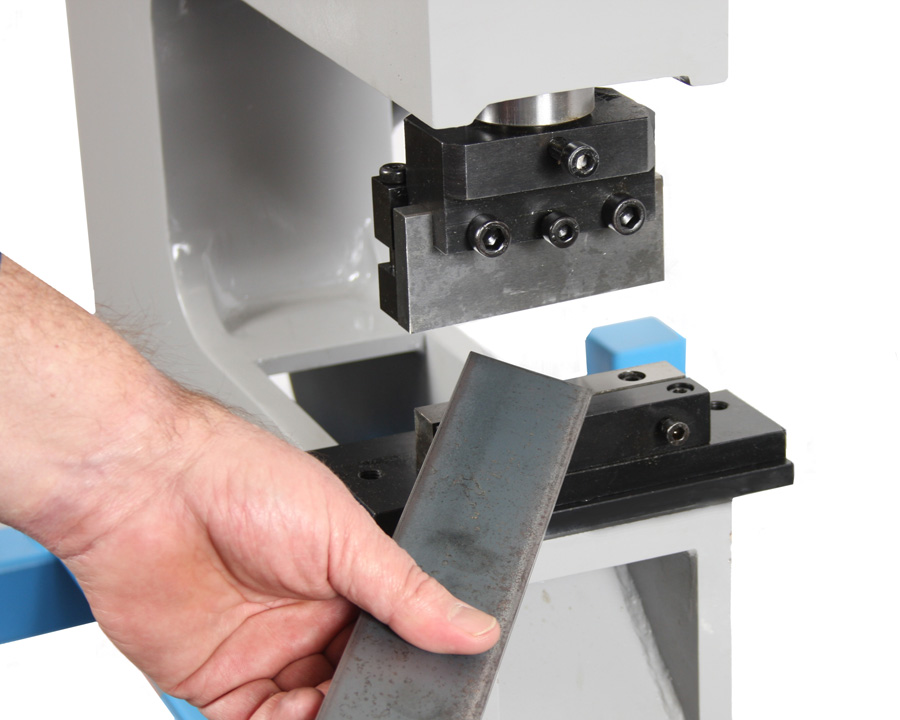

WFP12-S
SHEAR DIE **WGT = 6 LBS
NOTE: SHEAR DIE FOR WFP12, 4-3/8 LENGTH - CUTS UP TO 1/16 STEEL
Mfg. item #: WFP12-S
HECWFP12-S
"Ships by UPS, see freight calculator at checkout."2
$155.95

30
Call for price. HECWFP12-R
