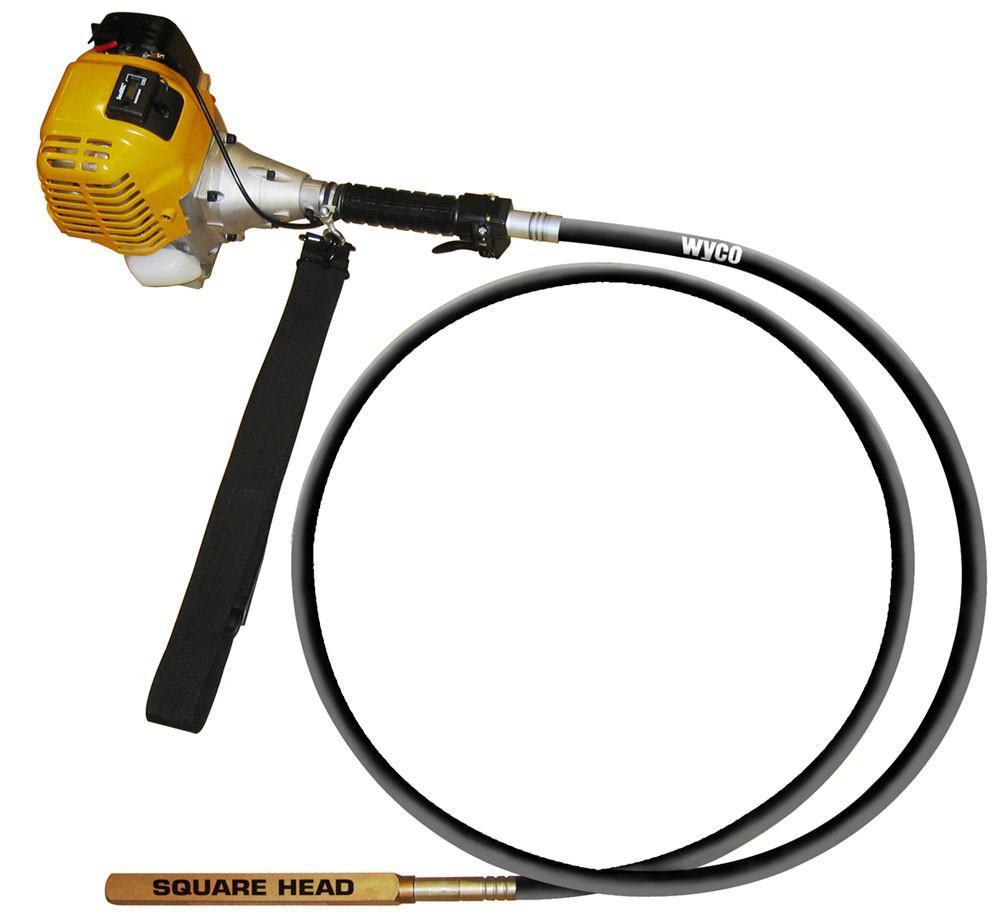

Wyco Square Head EZ Vibe ICF

EZ Vibe ICF Manual (PDF)

Portable, light-weight power for deep forms

The EZ Vibe is a compact, portable hand-held vibrator equipped with a four stroke gas engine. The EZ Vibe ICF is ideal when deeper forms need vibrating and electric power is not desired. The well balanced EZ vibe reduces fatigue and has many user friendly features such as a speed and runtime tachometer. The EZ Vibe has no air hoses or electric cords to get tangled in the rebar or tie downs. Applications include: Deep forms, such as basements, etc, as well as footings, culverts, bridge decks, tilt-up walls, residential flatwork, and/or any other hard-to-reach, remote concrete construction site jobs. It is also ideal as an emergency standby vibrator in case of power failure on the job site. When compared to the EZ Vibe, the EZ Vibe ICF is capable of longer shafts, and does not contain the aluminum contour that keeps the unit away from the user. Unlike the standard EZ Vibe, the EZ Vibe ICF is designed to be used in deep, long forms, ideal for insulated concrete basements and residential applications.

Features:

  • Ability to vibrate with shafts 8’-12’
  • Ability to use 13/16 or 1’ Square Head
  • Complete with a tachometer measuring vibration speed and hours
  • 33cc 4-cycle Robin engine
  • 1.6 hp; .65 liter fuel tank capacity
  • Diaphragm Carburetor
  • Adjustable shoulder harness included

Applications:

  • Basements
  • Deep forms
  • Insulated concrete forms
  • Anywhere a 12ft shaft is needed
  • Footings
  • Box Culverts
  • 4 inch Retaining Walls
  • Road Patching
  • Flat Work
  • Tilt-up Walls
  • Residential Flatwork
Specifications
Model Number Engine Head Size Length Ship Weight
W403-130 Robin, 1.6 hp, 4 cycle 13/16 in 8ft 23 lbs
W403-131 Robin, 1.6 hp, 4 cycle 1 in 8ft 24 lbs
W403-132 Robin, 1.6 hp, 4 cycle 13/16 in 12ft 28 lbs
W403-133 Robin, 1.6 hp, 4 cycle 1 in 12ft 29 lbs
EZ VIBE GAS HAND HELD VIBRATORS
W403-130 EZ-VIBE; ICF, ROBIN; 4 CY; 8', 13/16" HD
W403-131 EZ-VIBE; ICF, ROBIN; 4 CY; 8', 1" HD
W403-132 EZ-VIBE; ICF, ROBIN; 4CY; 12', 13/16 HD
W403-133 EZ-VIBE; ICF, ROBIN; 4 CY; 12', 1" HD

W403-130
EZ-VIBE; ICF, ROBIN; 4 CY; 8, 13/16 HD - EZ VIBE GAS HAND HELD VIBRATORS ** SHIPS UPS - WEIGHT = 23 LBS
Mfg. item #: W403-130
WYCW403-130
"Ships by UPS, see freight calculator at checkout."2
$1,346.19

145
W403-131
EZ-VIBE; ICF, ROBIN; 4 CY; 8, 1 HD - EZ VIBE GAS HAND HELD VIBRATORS ** SHIPS UPS - WEIGHT = 24 LBS
Mfg. item #: W403-131
WYCW403-131
"Ships by UPS, see freight calculator at checkout."2
$1,355.11

145
W403-132
EZ-VIBE; ICF, ROBIN; 4CY; 12, 13/16 HD - EZ VIBE GAS HAND HELD VIBRATORS ** SHIPS UPS - WEIGHT = 28 LBS
Mfg. item #: W403-132
WYCW403-132
"Ships by UPS, see freight calculator at checkout."2
$1,394.53

145
W403-133
EZ-VIBE; ICF, ROBIN; 4 CY; 12, 1 HD - EZ VIBE GAS HAND HELD VIBRATORS ** SHIPS UPS - WEIGHT = 29 LBS
Mfg. item #: W403-133
WYCW403-133
"Ships by UPS, see freight calculator at checkout."2
$1,403.46

145
