ZeeLine Double Diaphram Pumps

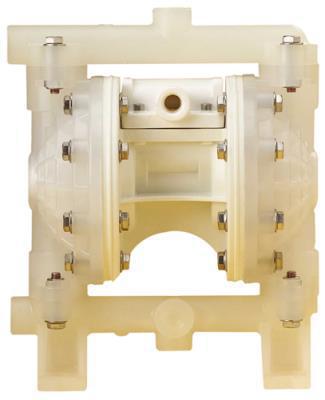

Air-operated 1:1 Double Diaphragm Pumps
Recommended for Oil, Waste Oil, and ATF
(WARNING! Not suitable for flammable liquid)

Features:

  • Diamond Selection 5 year Warranty
  • Non-stalling
  • Lube-free
Specifications
Model 1035
Maximum Flow 14 GPM
Inlet/Outlet 1/2 inch NPT
Body Construction Polypropylene
Diaphragm Buna N
Balls Acetal
Seats Polypropylene
UL Listed No



1/2 inch Split Inlet Mixing Pump For mixing 50 percent water and 50 percent antifreeze or windshield fluids.

Features:

  • Polypropylene construction
  • Flow rate 14 GPM
  • Buna N diaphragm
  • Acetal balls, Poly. seats
  • 1/2 inch NPT inlet
  • 1/2 inch NPT outlet

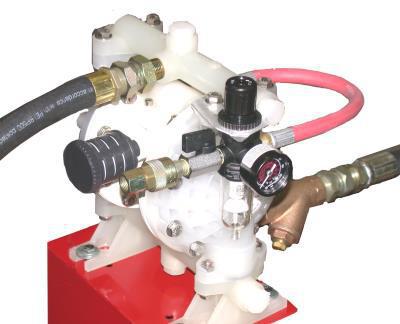

1/2 inch Double diaphragm pump with suction package

Specifications
Model 1035K
1/2 inch Pump (1035) Included
Male cam lock 3/4 inch
Female cam lock 3/4 inch
Brass ball valve 3/4 inch
Hydraulic adapter swivel 1/2 x 3/4 inch
Galvanized steel street L 3/4 inch
Suction hose 3/4 inch x 8 ft
Discharge hose 3/4 inch x 8 ft
Nipple 3/4 x 2 inch
Strainer 3/4 inch
Wall mount bracket (p/n 96) Yes
Airline filter with auto drain, regulator, gauge, ball valve and quick disconnect (1559A2-ASSY) Yes

Recommended accessory options:

  • Air line filter with automatic drain, regulator, gauge, ball valve and quick disconnects (1559A-ASSY)
  • Wall mount bracket (P/N 96)
1035
Mfg. item #: 1035
ZEE1035
Call for freight quote on this item or we will confirm freight charges before shipping.1
$564.65

690
1035M
AIR- POLYPRO. MIXING PUMP - 50/50 MIX 1/2Î NPT
Mfg. item #: 1035M
ZEE1035M
"Ships by UPS, see freight calculator at checkout."2
$491.42

2213
1035K
1/2 NPT SUCTION KIT FOR OIL W/1035 PUMP ** SOLD/ORDERED AS 1 EA & SHIPPING WGT = 21 LBS
Mfg. item #: 1035K
ZEE1035K
Call for freight quote on this item or we will confirm freight charges before shipping.1
$977.19

690
