Huthbender Model HB-10 Knee Control Bender

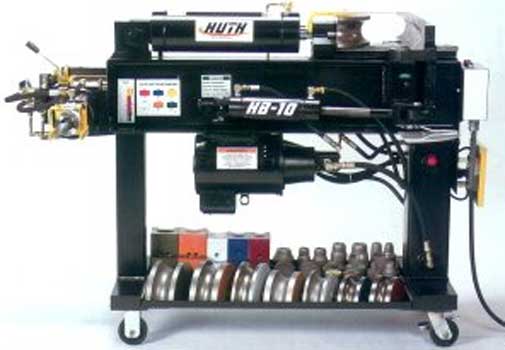

Image of : Pipe Bender - Entry Level - Knee Control Model HB-10

HuthBender Pipe Bender - Entry Level - Knee Control Model HB-10

The HB-10 Bender is Huth's entry level bender, designed to introduce you to Huth quality while showing you the incredible profit potential.  HB-10 can bend up to 3" tubing and includes a built-in swager/expander for complete end-finishing. The HB-10 is available in 220 volt, single or 3 phase, 60 or 50 Hz.


Features
  • Standard Comprehensive Tooling Package and Video
  • Knee-Pad Control
  • Manual Depth-of-Bend Indicator
  • 58,000 lbs of bending power
  • Heavy Duty Swager/Expander
  • Exclusive Safety Guard Package
  • Front Swivel Casters w/Brakes




HB Tooling Package


Swager Box


Optional Square Tooling


The HB-10 package includes*

  • 5530 5" Radius Die 3"

  • 5412 5" Radius Die 2-1/2"

  • 5414 5" Radius Die 2-1/4"

  • 5200 5" Radius Die 2"

  • 4414 4" Radius Die 2-1/4"

  • 4200 4" Radius Die 2"

  • 3134 3" Radius Die 1-3/4"

  • 3112 3" Radius Die 1-1/2"

  • 1350 Full Back Shoes 3" (2)

  • 4412 Full Back Shoes 2-1/2" (2)

  • 4211 Full Back Shoes 2-1/4" (2)

  • 1200 Full Back Shoes 2" (2)

  • 1134 Full Back Shoes 1-3/4" (2)

  • 1112 Full Back Shoes 1-1/2" (2)

  • 853 Flare Tool

  • 4410 Half Shoe 2-1/2"

  • 4416 Half Shoe 2-1/4"

  • 1045 Half Shoe 2"

  • 1040 Half Shoe 1-3/4"

  • 1038 Half Shoe 1-1/2"

  • 557 Domer Die 1-3/4" - 2-1/2"

  • 558 Domer Die 2-5/8" - 2-3/4"

  • 555 Female Ball Die 1-3/4" - 2"

  • 556 Female Ball Die 2-1/4" - 2-1/2"

  • 550 Male Ball Die 1-3/4" : Swage 2"

  • 552 Male Ball Die 2" : Swage 2-1/4"

  • 553 Male Ball Die 2-1/4" : Swage 2-1/2"

  • 554 Male Ball Die 2-1/2" : Swage 2-3/4"

  • 112 Swage Die 1-1/2"

  • 134 Swage Die 1-3/4"

  • 1750 Collet 2-1/2"

  • 1725 Collet 2-1/4"

  • 1725 Collet 2-1/4

  • 1725 Collet 2-1/4"

  • 1725 Collet 2-1/4"

  • 1725 Collet 2-1/4"

  • 1725 Collet 2-1/4"

  • 1725 Collet 2-1/4"

  • 1725 Collet 2-1/4

  • 1725 Collet 2-1/4"

  • 1725 Collet 2-1/4"

  • 1720 Collet 2"

  • 1734 Collet 1-3/4"

  • 1712 Collet 1-1/2"

  • 508 Arbor

  • 498 Arbor Tip

  • 499 Arbor Tip

  • 473 Segment 1-3/8" - 1-3/4"

  • 475 Segment 2-1/8" - 2-1/2"

  • 476 Segment 2-1/2" - 3"

  • 97050 Die Spring

  • 870 O-Ring Kit

  • 815 Die Holder (853)

  • 816 Die Holding Pin

  • 855 Die Pins (Qty. 30)

  • 1079 Full Shoe Spacers (2)

  • 1080 Half Shoe Spacer

  • 97302 Huth Instructional Video

* HB-10 package comes as listed only. Additional tooling available at extra charge.

Call 1-800-458-3687 For Your Specific Tooling Application






HUTHB10
$7,595.00 $6,985.50
"MANUAL BENDER W/TOOLING >>> FREE FREIGHT On This Order Anywhere in The Continental US ** NOTE: Any Residential/Tailgate or Re-Delivery Charges NOT INCLUDED"""


HUT028
$2,600.00 $2,468.00
TOOLING PACKAGE - FREE FREIGHT When Ordered with Equipment or Please Call Southern Tool @ 1-800-458-3687 for the BEST Freight Rate!
