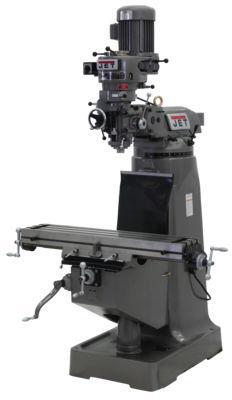

JET JTM 2 Step Pulley Milling Machine (1 Ph)



The Jet JTM-2, 9" x 42" Table, R-8 Taper, 8 Spindle Speeds, 2HP, 1Ph, 115/230V
has a 2 Year warranty
  • VERTICAL MILLING MACHINES - JTM-1/2
  • Meehanite casting
  • Precision bored and honed milling head
  • Large diameter quill is chromed
  • High precision Class 7 spindle bearings
  • Spindle head is internally cooled
  • Satin chrome finished dials
  • Heavy-duty splined motor drive
  • One-piece quill pinion and shaft
  • Three-stage power downfeed with automatic stop
  • Heavy-duty spindle brake
  • Precision hardened and ground ways
  • Precision ground table
  • Adjustable gibs throughout
  • Internal coolant tank built into base for use with coolant system (Coolant pump not included)
  • Tolerance test sheet included
  • One-shot lubrication system
  • Way covers
  • Draw bar
  • Tool box with tools

The JET JTM-2 Vertical Mill is manufactured with Meehanite casting for a rock solid foundation. It comes standard with a larth 9" x 42" table, R-8 Taper, 8 spindle speeds, and a 2 HP 1 Ph motor. It boasts a precision ground table, precision hardened and ground ways, three stage power downfeed with automatic stop, and one piece quill pinion and shaft.

Detailed Specifications
Part Number 690089
Brand Jet
Caution Jet's Step Pulley milling machine is the perfect solution for maintenance shops, repair shops, job shops, schools and light production.
Collet Capacity 1/8 – 7/8
Distance Spindle to Column (in.) 19
Distance Spindle to Column (min./in.) 4-1/2
Head Movement (deg.) 90° R & L, 45° F & B
Height 72 inch
Length 69 inch
Max Distance Spindle to Table ( in.) 17-1/2
Model Number JTM-2
Motor 2HP, 115/230V, 1Ph, Prewired 230V
Net Weight 2200 pound
Note Use of static phase converter will void warranty
Number of Spindle speeds
Overall Dimensions 57 x 64 x 82
Quill Diameter (in.) 3-3/8
Quill Down feed Rates (IPR) .0015 – .003 – .006
Range of Spindle Speeds (RPM) 80 – 2,720
Spindle Taper R-8
Spindle Travel (in.)
T-Slot Centers (in.) 2-1/2
T-Slots Number and Size (in.) 3 and 5/8
Table Cross Travel (in.) 12-1/2
Table Longitudinal Travel (in.) 23-7/8
Table Size (in.) 9 x 42
Travel of Knee (in.) 14-1/2
Travel of Ram (in.) 13-3/8
Width 59 inch
Work Table Weight Capacity (lbs.) 550
s-h alt WARRANTY AND SERVICE

WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Jet® tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.

Click on a part number below tp be redirected to the price at the bottom of this page
See product descriptions at the bottom of this page for any current specials on select milling machines

JET JTM-2 MILLING MACHINES
690089 JTM-2, 9" x 42" Table, R-8 Taper, 8 Spindle Speeds, 2HP, 1Ph, 115/230V
JET® JTM-2 MILLING MACHINE DRO AND ACCESSORY PACKAGES
690006 JTM-2 Mill with X Powerfeed Installed
690017 JTM-2 Mill, 2HP, 3Ph, 230V with X & Y Table Powerfeed
690283 JTM-2 Mill with VUE DRO
690286 JTM-2 Mill with VUE DRO & X Powerfeed Installed
690285 JTM-2 Mill with VUE DRO and X & Y Powerfeed Installed
690114 JTM-2 Mill with ACU-RITE 200S DRO and X Powerfeed Installed
690210 JTM-2 Mill with ACU-RITE 200S DRO and X & Y Powerfeed Installed
690072 JTM-2 Mill with 200S 3-AXIS QUILL DRO & X-TPFA
690157 JTM-2 Mill with 3-axis ACU-RITE 200S DRO, X &  Y Powerfeed Installed
691193 JTM-2 Mill with NEWALL DP700 DRO
691194 JTM-2 Mill with NEWALL DP700 DRO and X Powerfeed Installed
691195 JTM-2 Mill with NEWALL DP700 DRO and X & Y Powerfeed Installed
350194 TPFA-X TABLE POWEREEFD X-AXS 780LBS TORQUE NOT INSTALLED
350195 TPFA-Y TABLE POWEREEFD Y-AXS 780LBS TORQUE NOT INSTALLED
350196 TPFA-Z TABLE POWEREEFD Z-AXS 780LBS TORQUE NOT INSTALLED
WMH660220 R-8 Milling Tool Kit

Includes:

  • 2" Boring Head with R-8 shank
  • 5 HSS Boring Bars
  • 2-1/2" Fly Cutter with R-8 Shank
  • 3/8" HSS Tool Bit for Fly Cutter
  • R8 x MT3 Adapter
  • 48 x JT6 Adapter
  • R8 Shank with Blank End which can be Machined for Special Uses
  • 3-Piece Edge Finder Set
  • Wiggler set
  • 3 Hex Key Wrenches for all Tool Holders
  • Works with R8 Spindle Milling Machines
s-h altWMH660100KT Milling Accessory Kit

Includes:

  • 6pc R8 Collet Set
  • 52 pcs Clamping Kit
  • 24 pcs Tooling Kit
  • 3/8" HSS Tool Bit for Fly Cutter
  • 6" Verti-Lock Machine Vise



More Informationshow more
WMH660100KT mfg. item #: 660100KT
$1104.88   msrp $1395.00
MILLING ACCESSORY KIT
lease to own for as little as:$22 per month! 10
Limited time! FREE SHIPPING, FREE TAILGATE & RESIDENTIAL DELIVERIES on all JET, POWERMATIC, WILTON and Performax products on this order. See additional details at checkout.28


More Informationshow more
WMH660220 mfg. item #: 660220
$304.00   msrp $325.00
24-PIECE MILLING TOOL KIT FOR R-8 SPINDLE MILLING MACHINES
  10
Limited time! FREE SHIPPING, FREE TAILGATE & RESIDENTIAL DELIVERIES on all JET, POWERMATIC, WILTON and Performax products on this order. See additional details at checkout.25


s-h alt
More Informationshow more
WMH690089 mfg. item #: 690089
$8299.00   msrp $8899.00
JTM-2 STEP PULLEY MILLING MACHINE 115/230V 1PH
BUY A JTM-1 OR JTM-2 MILL AND GET A FREE 650211 20PC TIN COATED SINGLE END MILL SET & 650405 3PC JET MEASURING TOOL KIT. A $258 VALUE!
ADD TO CART NOW FOR ADDITIONAL INFORMATION & PROMOTIONS !
lease to own for as little as:$161 per month! 10
Limited time! FREE SHIPPING, FREE TAILGATE & RESIDENTIAL DELIVERIES on all JET, POWERMATIC, WILTON and Performax products on this order. See additional details at checkout.1020


More Informationshow more
WMH690006 mfg. item #: 690006
$9129.00   msrp $9699.00
JTM-2 MILL WITH X-AXIS POWERFEED
BUY A JTM-1 OR JTM-2 MILL AND GET A FREE 650211 20PC TIN COATED SINGLE END MILL SET & 650405 3PC JET MEASURING TOOL KIT. A $258 VALUE!
ADD TO CART NOW FOR ADDITIONAL INFORMATION & PROMOTIONS !
lease to own for as little as:$176 per month! 10
Limited time! FREE SHIPPING, FREE TAILGATE & RESIDENTIAL DELIVERIES on all JET, POWERMATIC, WILTON and Performax products on this order. See additional details at checkout.1020


More Informationshow more
WMH690017 mfg. item #: 690017
$9949.00   msrp $10599.00
JTM-2 MILL WITH X AND Y-AXIS POWERFEEDS
BUY A JTM-1 OR JTM-2 MILL AND GET A FREE 650211 20PC TIN COATED SINGLE END MILL SET & 650405 3PC JET MEASURING TOOL KIT. A $258 VALUE!
ADD TO CART NOW FOR ADDITIONAL INFORMATION & PROMOTIONS !
lease to own for as little as:$190 per month! 10
Limited time! FREE SHIPPING, FREE TAILGATE & RESIDENTIAL DELIVERIES on all JET, POWERMATIC, WILTON and Performax products on this order. See additional details at checkout.1020


More Informationshow more
WMH690283 mfg. item #: 690283
$10099.00   msrp $10899.00
JTM-2 MILL WITH ACU-RITE VUE DRO
BUY A JTM-1 OR JTM-2 MILL AND GET A FREE 650211 20PC TIN COATED SINGLE END MILL SET & 650405 3PC JET MEASURING TOOL KIT. A $258 VALUE!
ADD TO CART NOW FOR ADDITIONAL INFORMATION & PROMOTIONS !
lease to own for as little as:$194 per month! 10
Limited time! FREE SHIPPING, FREE TAILGATE & RESIDENTIAL DELIVERIES on all JET, POWERMATIC, WILTON and Performax products on this order. See additional details at checkout.1020


More Informationshow more
WMH690286 mfg. item #: 690286
$10999.00   msrp $11699.00
JTM-2 MILL WITH ACU-RITE VUE DRO WITH X-AXIS POWERFEED
BUY A JTM-1 OR JTM-2 MILL AND GET A FREE 650211 20PC TIN COATED SINGLE END MILL SET & 650405 3PC JET MEASURING TOOL KIT. A $258 VALUE!
ADD TO CART NOW FOR ADDITIONAL INFORMATION & PROMOTIONS !
lease to own for as little as:$210 per month! 10
Limited time! FREE SHIPPING, FREE TAILGATE & RESIDENTIAL DELIVERIES on all JET, POWERMATIC, WILTON and Performax products on this order. See additional details at checkout.1020


More Informationshow more
WMH690285 mfg. item #: 690285
$11899.00   msrp $12899.00
JTM-2 MILL WITH ACU-RITE VUE DRO WITH X AND Y-AXIS POWERFEEDS
BUY A JTM-1 OR JTM-2 MILL AND GET A FREE 650211 20PC TIN COATED SINGLE END MILL SET & 650405 3PC JET MEASURING TOOL KIT. A $258 VALUE!
ADD TO CART NOW FOR ADDITIONAL INFORMATION & PROMOTIONS !
lease to own for as little as:$228 per month! 10
Limited time! FREE SHIPPING, FREE TAILGATE & RESIDENTIAL DELIVERIES on all JET, POWERMATIC, WILTON and Performax products on this order. See additional details at checkout.1020


More Informationshow more
WMH690114 mfg. item #: 690114
$11099.00   msrp $11899.00
JTM-2 MILL WITH ACU-RITE 200S DRO AND X-AXIS POWERFEED
ADD TO CART NOW FOR ADDITIONAL INFORMATION & PROMOTIONS !
lease to own for as little as:$210 per month! 10
Limited time! FREE SHIPPING, FREE TAILGATE & RESIDENTIAL DELIVERIES on all JET, POWERMATIC, WILTON and Performax products on this order. See additional details at checkout.1020


More Informationshow more
WMH690210 mfg. item #: 690210
$11949.00   msrp $12799.00
JTM-2 MILL WITH ACU-RITE 200S DRO AND X AND Y-AXIS POWERFEEDS
ADD TO CART NOW FOR ADDITIONAL INFORMATION & PROMOTIONS !
lease to own for as little as:$223 per month! 10
Limited time! FREE SHIPPING, FREE TAILGATE & RESIDENTIAL DELIVERIES on all JET, POWERMATIC, WILTON and Performax products on this order. See additional details at checkout.1020


More Informationshow more
WMH690072 mfg. item #: 690072
$11599.00   msrp $12399.00
JTM-2 MILL WITH 3-AXIS ACU-RITE 200S DRO (QUILL) WITH X-AXIS POWERFEED
ADD TO CART NOW FOR ADDITIONAL INFORMATION & PROMOTIONS !
lease to own for as little as:$219 per month! 10
Limited time! FREE SHIPPING, FREE TAILGATE & RESIDENTIAL DELIVERIES on all JET, POWERMATIC, WILTON and Performax products on this order. See additional details at checkout.1020


More Informationshow more
WMH690157 mfg. item #: 690157
$11999.00   msrp $13299.00
JTM-2 MILL WITH 3-AXIS ACU-RITE 200S DRO (QUILL) WITH X AND Y-AXIS POWERFEEDS
ADD TO CART NOW FOR ADDITIONAL INFORMATION & PROMOTIONS !
lease to own for as little as:$229 per month! 10
Limited time! FREE SHIPPING, FREE TAILGATE & RESIDENTIAL DELIVERIES on all JET, POWERMATIC, WILTON and Performax products on this order. See additional details at checkout.1020


More Informationshow more
WMH691193 mfg. item #: 691193
$9999.00   msrp $11099.00
JTM-2 MILL WITH NEWALL DP700 DRO
ADD TO CART NOW FOR ADDITIONAL INFORMATION & PROMOTIONS !
lease to own for as little as:$194 per month! 10
Limited time! FREE SHIPPING, FREE TAILGATE & RESIDENTIAL DELIVERIES on all JET, POWERMATIC, WILTON and Performax products on this order. See additional details at checkout.1020


More Informationshow more
WMH691194 mfg. item #: 691194
$10399.00   msrp $11999.00
JTM-2 MILL WITH NEWALL DP700 DRO WITH X-AXIS POWERFEED
ADD TO CART NOW FOR ADDITIONAL INFORMATION & PROMOTIONS !
lease to own for as little as:$201 per month! 10
Limited time! FREE SHIPPING, FREE TAILGATE & RESIDENTIAL DELIVERIES on all JET, POWERMATIC, WILTON and Performax products on this order. See additional details at checkout.1020


More Informationshow more
WMH691195 mfg. item #: 691195
$11399.00   msrp $12499.00
JTM-2 MILL WITH NEWALL DP700 DRO WITH X AND Y-AXIS POWERFEEDS
ADD TO CART NOW FOR ADDITIONAL INFORMATION & PROMOTIONS !
lease to own for as little as:$219 per month! 10
Limited time! FREE SHIPPING, FREE TAILGATE & RESIDENTIAL DELIVERIES on all JET, POWERMATIC, WILTON and Performax products on this order. See additional details at checkout.1020


More Informationshow more
WMH350194 mfg. item #: 350194
$654.93   msrp $699.00
X-AXIS TABLE POWERFEED
lease to own for as little as:$13 per month! 10
Limited time! FREE SHIPPING, FREE TAILGATE & RESIDENTIAL DELIVERIES on all JET, POWERMATIC, WILTON and Performax products on this order. See additional details at checkout.26


More Informationshow more
WMH350195 mfg. item #: 350195
$654.93   msrp $699.00
Y-AXIS TABLE POWERFEED
lease to own for as little as:$13 per month! 10
Limited time! FREE SHIPPING, FREE TAILGATE & RESIDENTIAL DELIVERIES on all JET, POWERMATIC, WILTON and Performax products on this order. See additional details at checkout.26


More Informationshow more
WMH350196 mfg. item #: 350196
$654.93   msrp $699.00
Z-AXIS KNEE POWERFEED
lease to own for as little as:$13 per month! 10
Limited time! FREE SHIPPING, FREE TAILGATE & RESIDENTIAL DELIVERIES on all JET, POWERMATIC, WILTON and Performax products on this order. See additional details at checkout.26
