Adam Mechanical Balances

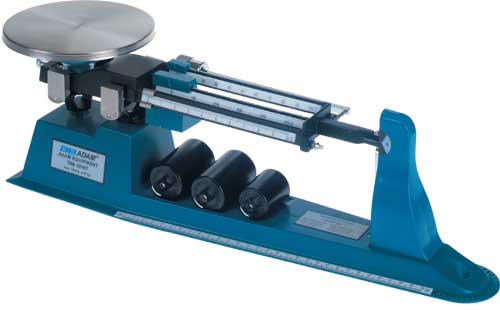

TBB-Triple Beam Balances-

The TBB - Triple Beam series are low cost mechanical balances, which meet the requirements for high precision and reliable weighing in laboratories, schools and industry

Features

  • Low cost and simple to use
  • Magnetic damping for faster stability
  • Rigid construction for durability
  • Zero adjust facility to enable zero reading
  • Notched and tiered graduated beams with centre reading
  • Stainless steel weighing pan
  • Ruler for measuring cm
  • Weight holders for storing additional weights
  • Tripod legs for density: TBB 2610S and TBB 2610T models only.
  • Large stainless steel pan
  • Lock down mounting slot for Kensington type lock and cable
  • 2 Year Warranty



Applications

  • Weighing
  • Below balance weighing
  • Density of solids
Technical Specifications
Model TBB 2610T TBB 2610S TBB 610S
Maximum capacity 2610g 2610g 610g
Readability 0.1g 0.1g 0.1g
Tare range +225g - -
Repeatability (S.D.) 0.2g 0.2g 0.2g
Linearity (±) 0.2g 0.2g 0.2g
Pan size 6 inch / 152mm
Net weight 5.5lb 3.8lb
General Specifications
Units of measurement Gram (g)
Calibration External
Display Graduated Beam
Housing Aluminium
Overall dimensions (wxdxh) 19.9x4.3x6.3 inch / 505x110x160mm

Accessories

TBB 2610T
TBB 2610T BALANCE 2610G X 0.1G **APPLICATIONS - WEIGHING / UPS SHIPPING WEIGHT = 10.3125 LBS
Mfg. item #: TBB 2610T
ADATBB 2610T
"Ships by UPS, see freight calculator at checkout."2
$102.06

53
TBB 2610S
TBB 2610S BALANCE 2610G X 0.1G **APPLICATIONS - WEIGHING / UPS SHIPPING WEIGHT = 10.3125 LBS
Mfg. item #: TBB 2610S
ADATBB 2610S
"Ships by UPS, see freight calculator at checkout."2
$94.16

53
TBB 610S
TBB 610S BALANCE 610G X 0.1G **APPLICATIONS - WEIGHING / UPS SHIPPING WEIGHT = 6.875 LBS
Mfg. item #: TBB 610S
ADATBB 610S
"Ships by UPS, see freight calculator at checkout."2
$71.16

53
700100046
KENSINGTON TYPE LOCK AND CABLE
Mfg. item #: 700100046
ADA700100046
Call for freight quote on this item or we will confirm freight charges before shipping.1
$28.00

1833
700100211
HARD CARRYING CASE W/ LOCK - TBB
Mfg. item #: 700100211
ADA700100211
Call for freight quote on this item or we will confirm freight charges before shipping.1
$65.00

1833
