Baileigh PR-1003-4 Plate Roll

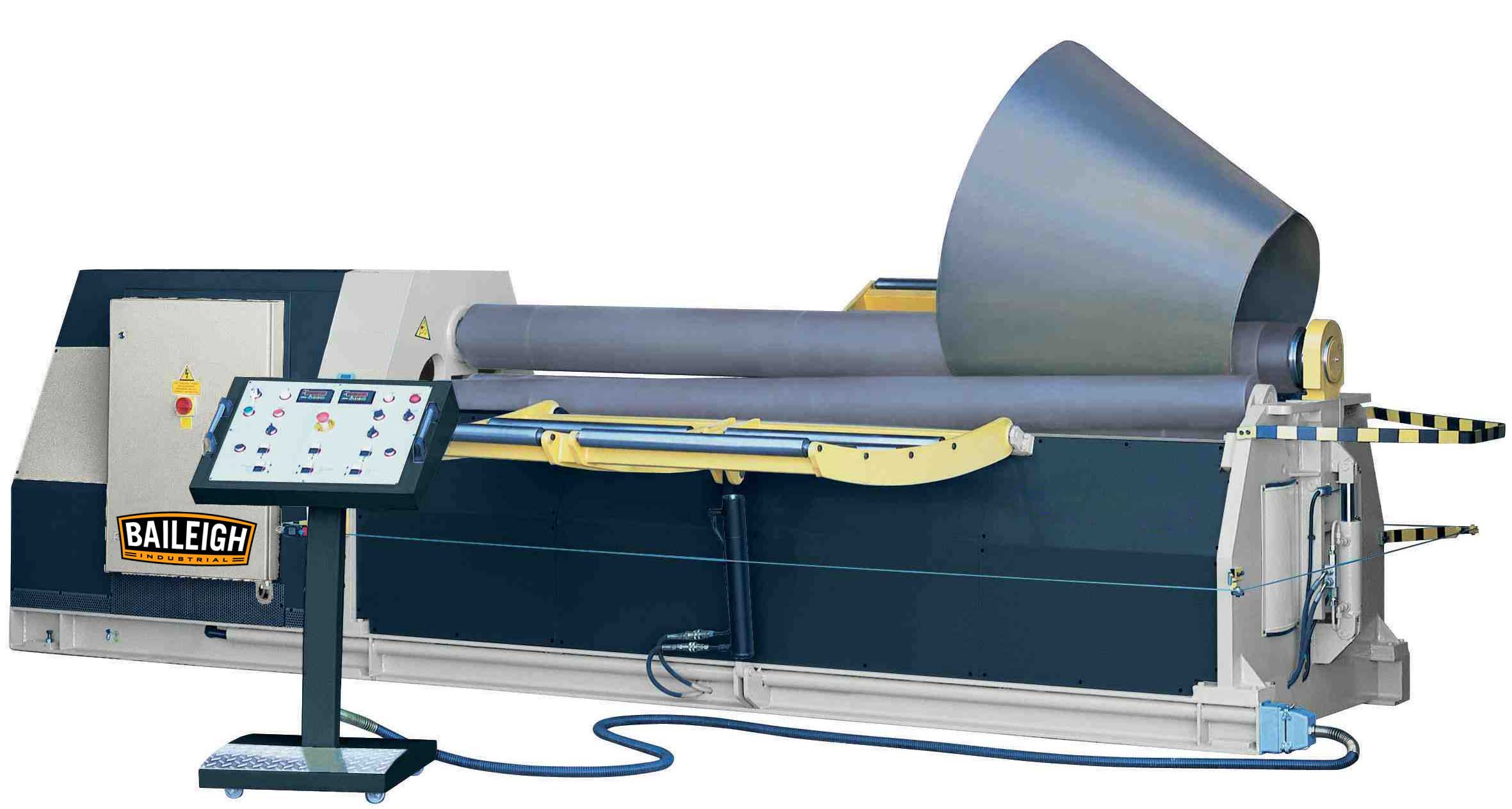

Hydraulic Plate Roll PR-1003-4

Made in Turkey

Manual and Hydraulic Plate Roll and Slip Roll Catalog

The PR-1003-4 hydraulic plate roll would be the perfect for any industrial fabrication shop or sheet metal shop that has a need to roll 1/4 inch mild steel in 10 foot widths.

The PR-1003-4 hydraulic plate roll uses a planetary gearbox connected to a robust 7hp motor to drive the top and bottom rolls at a solid 16 feet per minute.   Baileigh Industrial uses direct linear piston movement for the lateral or forming rolls is standard for even more forming power.  Other plate rolls use orbital movement for the lateral rolls which limits how tight the ring can get; the direct movement feature allows the operator to form tighter diameters with less work.  The PR-1003-4 four roll plate roll plate roll uses an industrial 2hp hydraulic motor to move the lateral rolls. Three digital readouts are also included to give an accurate roll location.  Every PR-1003-4 four roll plate roll includes an operator control pedestal to control all movements of the machine.  Integrated safety features, such as a machine tether and emergency stop switch are also included.

The PR-1003-4 hydraulic plate roll is designed for years of trouble free use in even the most demanding shops.  For more information, please call a customer service representative.





Specifications
Model PR-1003-4
Roll Speed 16 fpm. (5 mpm)
Upper Roll Dia. 8.662 inch
Roll Adjustment Back Hydraulic
Side Roll Dia 7 inch
Minimum Forming Dia 13 inch
Motor 7 hp
Capacity (Mild Steel) .250 inch
Forming Width 120 inch
Driven Rolls 2
Power 220V / 3-phase
Shipping Weight 15,840 lbs.
Shipping Dimensions 197 x 63 x 67 inch



There are no listed accessories.

PR-1003-4
220 VOLT THREE PHASE 4 ROLL DOUBLE PINCH PLATE ROLL. 10 LENGTH 1/4 MILD STEEL CAPACITY.
CALL NOW FOR YOUR BROTHER-IN-LAW DEAL ON THIS ITEM
Mfg. item #: PR-1003-4
BAIPR-1003-4
lease to own for as little as:$1,247 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$66,495.25
