Bomag BP-Series

Benefits at a glance

Cost reduction with:
  • Higher centrifugal forces and compaction performance
  • Optimum working speed
  • Extended working widths
  • Superior surface finish
  • High capacity 13.5 l water tank
  • Reduced running and service costs
  • Service kits
  • 3-2-1 warranty
Higher utilisation through:
  • Low machine weights
  • Extended scope of applications
  • Wide model range
  • Easy and safe transport
  • More options

Fields of application

Earthwork, asphalt and paving applications. Repair work on roads and agricultural roads, pipeline and trench construction, landscape gardening.



Features

  • Vibration insulated steering bow, foldable
  • Detachable steering handle
  • Highly wear resistant base plate
  • Automatic shutdown at low oil level
  • Recoil starter
  • Engine protection frame
  • Single point lifting device
  • Fully protected V-belt
  • Carrying handles
  • Protective covering



Specifications
Model BP 25/50
Basic weight lbs (kg) 236 (107)
Operating weight lbs (kg) 238 (108)
Working width in (mm) 19.7 (500)
Driving Characteristics (depending on site conditions)
Max. working speed ft / min (m / min) 98 (30)
Max. gradeability percent 30
Engine manufacturer Honda
Type GX160
Cooling air
Number of cylinders 1
Performance ISO 9249  hp (kW) 4.8 (3.6)
Speed rpm 3600
Fuel gasoline
Vibratory Frequency vpm (Hz) 5520 (92)
Vibratory Centrifugal force lbs (kN) 5620 (25)
Fuel gal (l) 1.0 (3.6)
Water gal (l) 3.6 (13.5)
Technical modifi cations reserved. Machines may be shown with options.




Dimensions in inches (mm)
Model BP25/50
H 25.9 (658)
H1 37.9 (962)
L 42.7 (1084)
L1 21.5 (545)
W 19.7 (500)



Models
BP25/50 BP25/50 20in, 165lbs, 2700lbs (Asphalt) 20in, 238lbs, 5620lbs



BP25/50

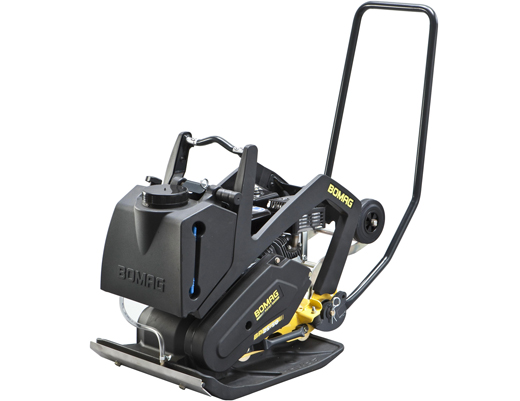

BP25/50 SINGLE DIRECTIONAL PLATE TAMPER - 19.7IN, 238LBS, 5620LBS
Mfg. item #: BP25/50
BOMBP25/50
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price
