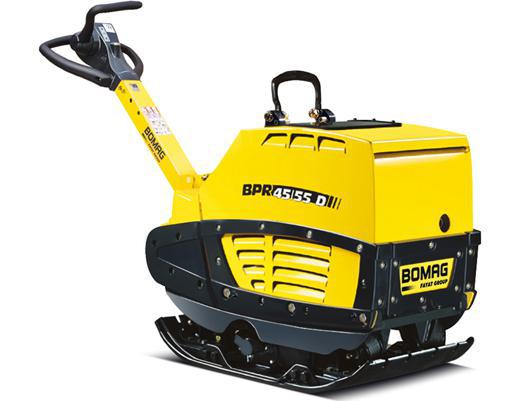

Bomag Reversible Vibratory Plates BPR45/

Higher profitability with:

  • Robust protection of main components
  • Reliable, high-quality components
  • High centrifugal force and compaction performance
  • Optimum working speed
  • Hard-wearing base plates
  • Low operating and servicing costs
  • Feature-packed
  • 3-2-1 warranty
  • ECONOMIZER

Easier servicing with:

  • Fast accessibility
  • Long service intervals
  • Service kits

Higher flexibility with:

  • Wide operating scope
  • High gradeability
  • Flexible working widths
  • Wide range of options

Fields of application

  • Earthwork and paving applications. Construction of roads, forestry roads and railtracks, backfills, trench and sewer line construction, landscape gardening, foundations.

Featrues:

  • Engine protection hood
  • Single lever control
  • Height adjustable steering rod
  • Low vibration steering rod
  • Steering rod lockable in transport and working position
  • Vibration and throttle regulation on the steering rod
  • Highly wear resistant base plate
  • Automatic decompression
  • Multi-functional, foldable single-point lifting facility
  • Wear strips
  • Electric starter
  • Recoil starter
  • Back-up drive protection
  • Automatic shutdown at low oil level



Specifications
Model BPR 45/55 D BPR 55/65 D
Operating weight CECE (W) kg 381 436
Operating weight CECE (W1) kg 396 456
Operating weight CECE (W2) kg 412 467
Basic weight kg 391 451
Basic working width mm 550 650
Working width without extension bars (W) mm 450 450
Lowest passing height mm 790 790
Min. height w. steering in top position mm 980 980
Max. height w. steering in top position mm 1.220 1.220
Working speed, max. m/min 28 28
Max. gradeability percentage depending on soil condition 35 35
Engine manufacturer Lombardini Lombardini
Type 15 LD 440 15 LD 440
Cooling air air
Number of cylinders 1 1
Performance ISO 9249 kW 6.6 6.6
Speed min-l 3,000 3,000
Drive system mech mech
Fuel diesel diesel
Exciter system Frequency Hz 70 66
Exciter system Centrifugal force kN 45 55
Fuel L 5.0 5.0
Technical modifications reserved. Machines may be shown with options.



Models and Accessories
BPR45/55D/E BPR45/55D/E 40in, 5291lbs, 5175 / 8550 lbs (Diesel) 22in, 873lbs, 10116lbs (Diesel/E-Start)
BPR55/65D/E BPR55/65D/E 40in, 5291lbs, 5175 / 8550 lbs (Diesel) 26in, 1005lbs, 12364lbs (Diesel/E-Start)
ERPBPR Economizer



BPR45/55D/E
BPR45/55D/E REVERSIBLE PLATE TAMPER - 21.7IN, 873LBS, 10116LBS (DIESEL/E-START)
CALL 800-458-3687 X1 FOR CURRENT PRICING & AVAILABILITY
Mfg. item #: BPR45/55D/E
BOMBPR45/55D/E
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

530
BPR55/65D/E
CALL FOR PRICING
FALL EQUIPMENT PROMOTION - LIMITED TIME OFFER
Mfg. item #: BPR55/65D/E
BOMBPR55/65D/E
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
Call for Price

1773
ERPBPR
ECONOMIZER FOR A BPR25/40 , BPR25/40D , BPR35/60 , BPR35/60D AND BPR35/60D/E REVERSIBLE PLATE TAMPER
Mfg. item #: ERPBPR
BOMERPBPR
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

530
