ChemGrout CG-550 Geothermal Series

The ChemGrout CG-550 Geothermal series includes both skid and trailer mounted grout plants.  These units feature a 70-gallon (265 liters) mixing tank, a large 45-gallon (170 liters) holding hopper and the rugged single-acting 3" piston grout pump.  The mixing tank is equipped with baffles, bag breaker and a variable speed high-efficiency paddle mixer that provides rapid grout mixing.  The tank outlet is a large slide gate that allows viscous grouting materials to flow quickly into the removable holding hopper.  The large holding hopper is sized to provide continuous pumping, the mixer is charged while the hopper feeds the pump.  The grout pump is a 3" positive displacement, single acting piston pump that disassembles with only a hammer for fast and thorough cleaning.  The rugged steel frame stands up to the toughest conditions on the job site.  Operator controls are centrally located for efficient production.  The trailer mounted unit is road and job site ready equipped with leaf springs, lights and a working platform.

Applications Include:

Geotechnical - geothermal grouting, deep well casing, monitor wells, well sealing and abandonment
Marine - underwater foundations, piers, breakers, shoreline foundations
Utilities - encasements, waterproofing, slope line grouting

Model Number
Description
Dimensions (LxWxH) Weight (lbs)
CG550/031/A/GT Skid Mounted Air Powered Grout Plant  Requires 185 CFM, 100 PSI 66" x 34" x 58" 690
CG550/031/H/GT Skid Mounted Hydraulic Powered Grout Plant  Requires 2 Supplies 9/6 GPM, 2300 PSI 88" x 34" x 58" 650
CG550/031/EH/GT Skid Mounted Electric Powered Grout Plant  Requires 3 Phase Electricity - Several Voltage Options 88" x 34" x 58" 1300

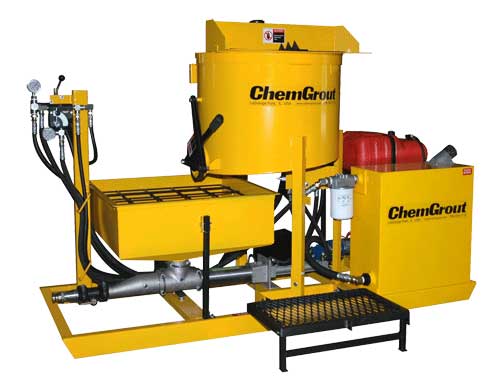

CG550/031/GH/GT Skid Mounted Self-Contained Grout Plant  20 HP Gasoline Engine with Electric Start 90" x 34" x 58" 1300
CG550/031/DH/GT Skid Mounted Self-Contained Diesel/Hydraulic Grout Plant  20 HP Diesel Engine with Electric Start 90" x 34" x 58" 1300
CG555/031/EH/GT Trailer Mounted Electric Powered Grout Plant  Requires 3 Phase Electricity - Several Voltage Options 110" x 68" x 76" 1700
CG555/031/GHES/GT Trailer Mounted Self-Contained Grout Plant  20 HP Gasoline/Hydraulic with Electric Start 110" x 68" x 76" 1700
CG555/031/DH/GT Trailer Mounted Self-Contained Grout Plant  20 HP Diesel Engine with Electric Start 110" x 68" x 76" 1700
s-h alt s-h alt s-h alt s-h alt
CG550/031/A/GT CG555/031/EH/GT CG550/031/GH/GT CG555/031/GHES/GT
SPECIFICATIONS
Pump
Power
Mixing Tank  Holding Hopper Max. Output Max. Pressure
031 Single Acting Piston Air 70 Gallon 45 Gallon 16 GPM 550 PSI (38 Bar)
031 Single Acting Piston Hydraulic 70 Gallon 45 Gallon 16 GPM 550 PSI (38 Bar)
There is no further information.
There are no listed accessories.
GEOTHERMAL-H
Mfg. item #: GEOTHERMAL-H
CHEGEOTHERMAL-H
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

36
GEOTHERMAL-A
Mfg. item #: GEOTHERMAL-A
CHEGEOTHERMAL-A
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

36
GEOTHERMA{00
L-DHES}SPECIALTY UNITS, 12-16 GPM,
CALL 800-458-3687 X1 FOR THE VERY BEST BROTHER-IN-LAW DEAL ON THIS CHEM GROUT PUMP
Mfg. item #: GEOTHERMA{00
CHEGEOTHERMA{00
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

36
GEOTHERMA{01
L-GHES}SPECIALTY UNITS, 12-16 GPM,
CALL 800-458-3687 X1 FOR THE VERY BEST BROTHER-IN-LAW DEAL ON THIS CHEM GROUT PUMP
Mfg. item #: GEOTHERMA{01
CHEGEOTHERMA{01
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

36
45-A
Mfg. item #: 45-A
CHE45-A
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

36
45-ES
Mfg. item #: 45-ES
CHE45-ES
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

36
45-ET
Mfg. item #: 45-ET
CHE45-ET
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

36
45-EV
Mfg. item #: 45-EV
CHE45-EV
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

36
45-H
Mfg. item #: 45-H
CHE45-H
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

36
70-A
Mfg. item #: 70-A
CHE70-A
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

36
70-ES
Mfg. item #: 70-ES
CHE70-ES
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

36
70-ET
Mfg. item #: 70-ET
CHE70-ET
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

36
70-EV
Mfg. item #: 70-EV
CHE70-EV
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

36
70-H
Mfg. item #: 70-H
CHE70-H
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

36
