Paving Breakers and Accessories

Paving Breakers




APT LOGO JET LOGO TAMCO LOGO



USA Flag AMERICAN PNEUMATIC TOOLS, INC.

Still Made in America

Tough and dependable, the high performance model 190 is the most powerful air tool APT makes. It is designed for big jobs such as heavy demolition and concrete breaking. The 160 model paving breaker is a versatile, hard-hitting tool that can be used for medium to heavy demolition work and concrete breaking, and is the perfect all around breaker. The model 140 is a rugged, yet lightweight, paving breaker designed for light to medium construction work. It is ideally suited for plant maintenance work such as light demolition of floors, pavement, frozen ground and masonry walls, and is very popular for bridge deck jobs. The model 140, 160 & 190 standard paving breakers are also available in an ergonomic style that APT calls their Airgo-Line. The model 117, the 30 lb. class paving breaker is the ideal tool for light to medium demolition work as well as for use in confined areas.

m117 m140 m160 m190
M117 M140 M160 M190

Click Here for our APT Paving Breaker Product Home Page

American Pneumatic Paving Breakers
Part # 5199 5200 17923 5235 5236 5239 5240
Model M117 M117 M140 M160 M160 M190 M190
Chuck Size 7/8" x 3-3/4" 1" x 4-1/4"  1 " x 4-1/4" 1-1/8" x 6" 1-1/4" x 6"  1-1/8" x6" 1-1/4" x 6"
Bore  1-3/4" 1-3/4" 1-7/8" 2-1/4" 2-1/4" 2-5/8" 2-5/8"
Stroke 3-3/8" 3-3/8"" 4-1/4" 4-1/8" 4-1/8" 6-1/8" 6-1/8""
BPM 1850 1850 1500 1680 1680 1350 1350
CFM  34-38  34-38  48 60-65  60-65  75-80  75-80
Weight 33 lbs 33 lbs 43 lbs 68 lbs 68 lbs 91 lbs 91 lbs
Length 21-3/4" 21-3/4" 21-1/8" 25-3/4" 25-3/4" 29" 29"
Air Inlet 3/8" Male NPT 3/8" Male NPT 1/2" Male NPT 1/2" Male NPT 1/2" Male NPT 3/4" Male NPT 3/4" Male NPT

FEATURES
  • New! Automatic Ball Valve
  • Drop forged steel handle
  • Built-in automatic oiler
  • Replaceable chuck bushing
  • Rubber handle grips
  • Latch type retainer
  • Swivel hose connector with universal coupler
  • Four bolt back head
  • Noise reducing muffler available
APT  - Paving Breakers
5199 117 PAVING BREAKER 7/8" x 3-1/4"
5200 117 PAVING BREAKER  1"  x 4-1/4"
17923 140 PAVING BREAKER 1" x 4-1/4"
5235 160 PAVING BREAKER 1-1/8" x 6"
5236 160 PAVING BREAKER 1-1/4" x 6"
5239 190 PAVING BREAKER 1-1/8" x 6"
5240 190 PAVING BREAKER 1-1/4" x 6"



USA Flag AMERICAN PNEUMATIC TOOLS

Still Made in America


The Airgo-line Paving Breakers are ergonomically designed handle helps reduce harmful vibration to the hands and arms of the operator. This versatile tool is based on the standard models and the tool being easily converted between the standard or ergonomic styles. No power is lost from the standard tool but does increase efficiency and output due to the reduction in operator fatigue.

m140 m160 m190
M140A M160A M190A

Click Here for our APT Paving Breaker Product Home Page

APT - ARGO - American Pneumatic Paving Breakers
Part # 18041 17746 17747 18618 18619
Model M140A M160A M160A M190A M190A
Chuck Size 1" x 4-1/4"  1-1/8" x 6" 1-1/4" x 6"  1-1/8" x 6" 1-1/4" x 6"
Bore diameter 1-7/8"  2-1/4" 2-1/4" 2-5/8" 2-5/8"
Stroke 4-1/4"" 4-1/8" 4-1/8"" 6-1/8" 6-1/8""
BPM 1500 1680 1680 1350 1350
CFM at 90psi 48 60-65  60-65  75-80 75-80
Weight 46 lbs 70 lbs 70 lbs 90 lbs 90 lbs
Length 24" 28-1/4" 28-1/4" 31" 31"
Air Inlet Size 1/2" Male NPT 1/2" Male NPT 1/2" Male NPT 3/4" Male NPT 3/4" Male NPT

FEATURES
  • Ergonomic back head
  • Drop forged steel handle
  • Built-in automatic oiler
  • Replaceable chuck bushing
  • Rubber handle grips
  • Latch type retainer
  • Swivel hose connector with universal coupler
  • Four bolt back head
  • Noise reducing muffler available
APT - ARGO American Pneumatic Paving Breakers
18041 140  AIRGO-LINE PAVING BREAKER 1"  x 4 1/4"
17747 160 AIRGO-LINE PAVING BREAKER 1-1/4" x 6"
17746 160 AIRGO-LINE PAVING BREAKER 1-1/8" x 6"
18619 190 AIRGO-LINE PAVING BREAKER 1-1/4" x 6"
18618 190 AIRGO-LINE PAVING BREAKER 1-1/8" x 6"



JET LOGO

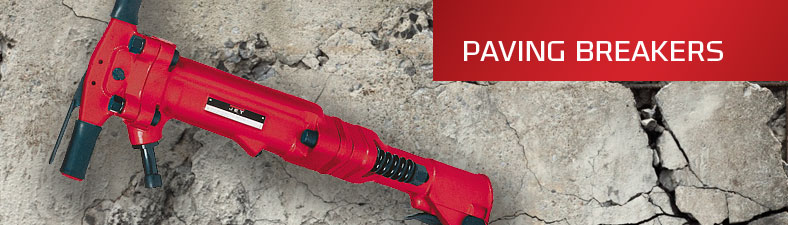

JET Paving Breakers

JET Paving Breakers are designed for your demolition needs.  Each model features full control throttle, drop forged cylinders, rubber handle grips, and four-bolt head-to-cylinder construction for maximum durability.

 JPB-60, 1-1/4 60-lb. Paving Breaker 550076  JPB-60, 1-1/4 60-lb. Paving Breaker 550076  JPB-60, 1-1/4 60-lb. Paving Breaker 550076
JPB-60, 1-1/4 60-LB Paving Breaker,
WMH550076
JPB-90, 1-1/4 90-LB Paving Breaker,
WMH550078
JPB-90, 1-1/8 90-LB Paving Breaker,
WMH550077

Click Here for our JET Paving Breaker Product Home Page

Specifications 550076 550077 550078
Hex Shank Size (In.) 1-1/4 x 6 1-1/8 x 6 1-1/4 x 6
Piston Stroke (In.) 5 6-1/2 6-1/2
Piston Diameter (In.) 2-1/4 2-5/8 2-5/8
Blows Per Minute 1,400 1,250 1,250
Force Per Blow at 90 PSI (Ft.) (Lbs.) 89 90 90
Weight (Lbs.) 66 93 93
Overall Length (In.) 25-3/8 28-1/2 28-1/2
Air Consumption (CFM) 58 77 77
Vibration Value (M/S2) 15.6 17.3 17.3
Air Inlet (NPT/In.) 3/4 3/4 3/4
Air Hose (ID/In.) 3/4 3/4 3/4
Air Pressure (PSI) 90 90 90



Features 550076 550077 550078
Alloy steel body, drop-forged cylinder and four-bolt construction increases durability Check Check Check
Internal oiler design provides continuous lubrication minimizing daily maintenance Check Check Check
Heavy duty front headsprings decrease repetitive impact forces reducing fatigue Check Check Check
Large diameter, smooth stroke cylinder reduces vibration Check Check Check
Rubber-gripped, T-handle design reduces vibration and permits convenient jobsite transportation Check Check Check

Jet Paving Breakers
550076 JPB-60-1-1/4, 60-lb. Paving Breaker, 1-1/4"x6" Bushing
550077 JPB-90-1-1/8, 90-lb. Paving Breaker, 1-1/8"x6" Bushing
550078 JPB-90-1-1/4, 90-lb. Paving Breaker, 1-1/4"x6" Bushing

RED ASSURANCE 1-YEAR WARRANTY

TAMCO LOGO

Toku Paving Breakers

Toku paving breakers offer a rugged and reliable tool for whatever task you may have for them. Toku breakers are available in 30, 40, 60, and 90 pound classes. All Toku breakers feature a rugged four bolt backhead, drop forged alloy steel construction, forged latch retainers, replaceable chuck bushings, and safety triggers. Optional mufflers are available.

Toku 30 and 40 pound hammers are the perfect size and weight for light to medium construction. They work great for demolishing blacktop, masonry walls, bridge decks, or digging in frozen soil.

The Toku 60 and 90 pound breakers are designed with the larger demolition jobs in mind. Whether it's breaking rock, reinforced concrete, or pavement, these breakers have plenty of power to get the job done.


Click Here for our APT Paving Breaker Product Home Page

Toku PB-30 Paving Breaker
Toku PB-30 Breaker Shank Size 7/8" x 3-1/4" or 1" x 4-1/4"
Stroke Length 3-11/32" (85mm)
Piston Diameter 1-3/4" (44.45mm)
Impact Rate 1,550 B.P.M.
Weight 33 lbs. (15 kg.)
Overall Length 22-1/4" (564mm)
Air Consumption 49 C.F.M.
Air Inlet 3/8" NPT
Hose Size 1/2" (12.7mm)
Warranty 1 Year Limited Warranty



Toku PB-40 Paving Breaker
Toku PB-40 Breaker Shank Size 1" x 4-1/4"
Stroke Length 5-3/4" (146mm)
Piston Diameter 1-3/4" (44mm)
Impact Rate 900 B.P.M.
Weight 39.6 lbs. (18 kg.)
Overall Length 26" (660mm)
Air Consumption 56 C.F.M.
Air Inlet 1/2" NPT
Hose Size 3/4" (19mm)
Warranty 1 Year Limited Warranty



Toku PB-60 Paving Breaker
Toku PB-60 Breaker Shank Size 1-1/8" x 6" or 1-1/4" x 6"
Stroke Length 4" (100mm)
Piston Diameter 2-1/4" (57.15mm)
Impact Rate 1,400 B.P.M.
Weight 66 lbs. (30 kg.)
Overall Length 25-3/8" (645mm)
Air Consumption 70 C.F.M.
Air Inlet 3/4" NPT
Hose Size 3/4" (19mm)
Warranty 1 Year Limited Warranty



Toku PB-90 Paving Breaker
Toku PB-90 Paving Breaker Shank Size 1-1/8" x 6" or 1-1/4" x 6"
Stroke Length 6" (152mm)
Piston Diameter 2-5/8" (66.67mm)
Impact Rate 1,250 B.P.M.
Weight 92.4 lbs (42 kg.)
Overall Length 28-1/2" (723mm)
Air Consumption 77 C.F.M.
Air Inlet 3/4" NPT
Hose Size 3/4" (19mm)
Warranty 1 Year Limited Warranty

TAMCO - Paving Breakers
PB-30-1 PAVING BREAKER, 30#1021 1"HX X 4-1/4    (TPB-30)
PB-30-7/8 PAVING BREAKER, 30#1021 7/8"HX X 3-1/4   (TPB-30)
PB-40-1 PAVING BREAKER, 40#1021 1"HX X 4-1/4   (TPB-40)
PB-60-1-1/4 PAVING BREAKER, 60#1021 1-1/4"HX X 6"    (TPB-60)
PB-60-1-1/8 PAVING BREAKER, 60#1021 1-1/8"HX X 6"    (TPB-60)
PB-90-1-1/4 PAVING BREAKER, 90#1021 1-1/4"HX X 6"     (TPB-90)
PB-90-1-1/8 PAVING BREAKER, 90#1021 1-1/8"HX X 6"    (TPB-90)



Paving Breaker Steel

Paving Breaker Steel

Tamco manufactures a full line of paving breaker steel in lengths from 14" to 120". Heavy duty, longer lengths, and specials can be made via request.

Click here for available items.



Paving Breaker Tools

Paving Breaker Tools

Tamco manufactures a complete line of paving breaker tools including asphalt cutters, clay spades, frost wedges, and many more items.

Click here for available items.



Paving Breaker Accessories

Paving Breaker Accessories

Tamco offers a full line of paving breaker accessories featuring ground rod drivers, tamping pads, sheathing drivers and many more.

Click here for available items.


Click here for:
Air Tool Mufflers, Whip & Air Hoses, In-Line Oilers,
Paving Breaker Accessories, Rivet Buster Accessories & Chipping Hammer Accessories (Non Steel Tooling)



5199
117 PAVING BREAKER - 7/8 X 3-1/4
SALES TAX COLLECTED BY THIS MANUFACTURE IN SOME STATES
Mfg. item #: 5199
APT5199
Ships FREE via UPS to lower 48 states.5
$917.10

804
5200
117 PAVING BREAKER - 1 X 4-1/4
SALES TAX COLLECTED BY THIS MANUFACTURE IN SOME STATES
Mfg. item #: 5200
APT5200
Ships FREE via UPS to lower 48 states.5
$917.10

804
17923
140 PAVING BREAKER - 1 X 4-1/4
SALES TAX COLLECTED BY THIS MANUFACTURE IN SOME STATES
Mfg. item #: 17923
APT17923
Ships FREE via UPS to lower 48 states.5
$933.10

804
5235
160 PAVING BREAKER - 1-1/8 X 6
SALES TAX COLLECTED BY THIS MANUFACTURE IN SOME STATES
Mfg. item #: 5235
APT5235
Ships FREE via UPS to lower 48 states.5
$983.75

804
5236
160 PAVING BREAKER - 1-1/4 X 6
SALES TAX COLLECTED BY THIS MANUFACTURE IN SOME STATES
Mfg. item #: 5236
APT5236
Ships FREE via UPS to lower 48 states.5
$983.75

804
5239
190 PAVING BREAKER - 1-1/8 X 6
SALES TAX COLLECTED BY THIS MANUFACTURE IN SOME STATES
Mfg. item #: 5239
APT5239
Ships FREE via UPS to lower 48 states.5
$1,033.08

804
5240
190 PAVING BREAKER - 1-1/4 X 6
SALES TAX COLLECTED BY THIS MANUFACTURE IN SOME STATES
Mfg. item #: 5240
APT5240
Ships FREE via UPS to lower 48 states.5
$1,033.08

804
18041
140A AIRGO-LINE PAVING BREAKER - 1 X 4 1/4
SALES TAX COLLECTED BY THIS MANUFACTURE IN SOME STATES
Mfg. item #: 18041
APT18041
Ships FREE via UPS to lower 48 states.5
$1,199.70

804
17747
160A AIRGO-LINE PAVING BREAKER - 1-1/4 X 6
SALES TAX COLLECTED BY THIS MANUFACTURE IN SOME STATES
Mfg. item #: 17747
APT17747
Ships FREE via UPS to lower 48 states.5
$1,266.35

804
17746
160A AIRGO-LINE PAVING BREAKER - 1-1/8 X 6
SALES TAX COLLECTED BY THIS MANUFACTURE IN SOME STATES
Mfg. item #: 17746
APT17746
Ships FREE via UPS to lower 48 states.5
$1,266.35

804
18619
190A AIRGO-LINE PAVING BREAKER - 1-1/4 X 6
SALES TAX COLLECTED BY THIS MANUFACTURE IN SOME STATES
Mfg. item #: 18619
APT18619
Ships FREE via UPS to lower 48 states.5
$1,317.00

804
18618
190A AIRGO-LINE PAVING BREAKER - 1-1/8 X 6
SALES TAX COLLECTED BY THIS MANUFACTURE IN SOME STATES
Mfg. item #: 18618
APT18618
Ships FREE via UPS to lower 48 states.5
$1,317.00

804
550076
JPB-60-1-1/4, 60-LB. PAVING BREAKER, 1-1/4X6 BUSHING
Mfg. item #: 550076
WMH550076
Limited time! FREE SHIPPING, FREE TAILGATE & RESIDENTIAL DELIVERIES on all JET, POWERMATIC, WILTON and Performax products on this order. See additional details at checkout.28
$1,365.52

2536
550077
JPB-90-1-1/8, 90-LB. PAVING BREAKER, 1-1/8X6 BUSHING
Mfg. item #: 550077
WMH550077
Limited time! FREE SHIPPING, FREE TAILGATE & RESIDENTIAL DELIVERIES on all JET, POWERMATIC, WILTON and Performax products on this order. See additional details at checkout.28
$1,609.16

2536
550078
JPB-90-1-1/4, 90-LB. PAVING BREAKER, 1-1/4X6 BUSHING
Mfg. item #: 550078
WMH550078
Limited time! FREE SHIPPING, FREE TAILGATE & RESIDENTIAL DELIVERIES on all JET, POWERMATIC, WILTON and Performax products on this order. See additional details at checkout.28
$1,609.16

2536
PB-30-1
MODEL NO.TPB30 - PAVING BREAKERS - 30# 1 HX X 4-1/4
Mfg. item #: PB-30-1
TAMPB-30-1
"Ships by UPS, see freight calculator at checkout."2
$831.25

1034
PB-30-7/8
MODEL NO.TPB30 - PAVING BREAKERS - 30# 7/8 HX X 3-1/4
Mfg. item #: PB-30-7/8
TAMPB-30-7/8
"Ships by UPS, see freight calculator at checkout."2
$831.25

1034
PB-40-1
MODEL NO.TPB40 - PAVING BREAKERS - 40# 1 HX X 4-1/4
Mfg. item #: PB-40-1
TAMPB-40-1
"Ships by UPS, see freight calculator at checkout."2
$868.75

1034
PB-60-1-1/4
MODEL NO.TPB60 - PAVING BREAKERS - 60# 1-1/4 HX X 6
Mfg. item #: PB-60-1-1/4
TAMPB-60-1-1/4
"Ships by UPS, see freight calculator at checkout."2
$925.00

1034
PB-60-1-1/8
MODEL NO.TPB60 - PAVING BREAKERS - 60# 1-1/8 HX X 6
Mfg. item #: PB-60-1-1/8
TAMPB-60-1-1/8
"Ships by UPS, see freight calculator at checkout."2
$925.00

1034
PB-90-1-1/4
MODEL NO.TPB90 - PAVING BREAKERS - 90# 1-1/4 HX X 6
Mfg. item #: PB-90-1-1/4
TAMPB-90-1-1/4
"Ships by UPS, see freight calculator at checkout."2
$950.00

1034
PB-90-1-1/8
MODEL NO.TPB90 - PAVING BREAKERS - 90# 1-1/8 HX X 6
Mfg. item #: PB-90-1-1/8
TAMPB-90-1-1/8
"Ships by UPS, see freight calculator at checkout."2
$950.00

1034
