ROCK DRILLS




APT LOGO JET LOGO TAMCO LOGO



USA Flag AMERICAN PNEUMATIC TOOLS, INC.

Still Made in America

DRY Rock Drills

The APT Model 109 and Model 115 are lightweight tools for drilling holes for anchor bolts and small dowel hole drilling. These versatile tools have a stop rotation feature that converts them from a rotating hammer to a non rotating hammer for light chipping and overhead work. The Model 137 and Model 155 are used for general construction, utility work and plant maintenance. They are designed for drilling through granite, hard faced rock, quarry drilling and drilling secondary holes for blasting. These larger tools can be also utilised machinery. The Model 137 and 155 are also available in wet drill models when dust suppression is required.

m109 m115 m137 m155
M109 M115 M137 M155
  • Right hand rotation
  • Lightweight, aluminum cast, D-style handle
  • Deep case hardened cylinder
  • Rubber dust excluder helps protect internal parts from dust and debris
  • Ball type retainer allows for quick change-out of drill bits
  • Noise reducing muffler available
  • Stop rotation feature
  • Lightweight aluminum cast handle
  • Built-in automatic oiler
  • Replaceable chuck bushing
  • Latch type retainer
  • Swivel hose connector
  • 4 drilling speeds
  • Available in wet or dry models
  • Replaceable piston stem  bearing
  • Rubber handle grips
  • Latch type retainer
  • Swivel hose connector
  • 3 drilling speeds
  • Available in wet or dry models
  • Built-in automatic oiler
  • Replaceable piston stem bushing
  • Rubber handle grips
  • Latch type retainer
  • Swivel hose connector
  • Counter clockwise rotation
  • Noise reducing muffler available

Click Here for our APT ROCK DRILL Product Home Page

APT - DRY - Rock Drill Specifications
PART # 17643 5197 5223 5225 5227
MODEL M109 M115 M137 M137 M137
Chuck Size 3/4" ROUND x 3-3/4" 7/8" x 3-1/4" 7/8" x 3-1/4" 7/8" x 4-1/4"  1" x 4-1/4"
Bore 1-1/4" 1-15/16" 2-3/8" 2-3/8" 2-3/8"
Stroke 1" 1-3/8" 2-5/8" 2-5/8" 2-5/8"
BPM 3400 2900 2300 2300 2300
CFM 19-21  32-36 85-90  85-90  85-90
Weight 9 lbs 19 lbs 38 lbs 38 lbs 38 lbs
Length 15" 21-3/4" 19-3/4" 19-3/4" 19-3/4"
Air Inlet Size 3/"8 Female NPT 3/8" Male NPT 1/2" Male NPT 1/2" Male NPT 1/2" Male NPT

PART # 5229 5231 5233 Clcik Here for our APT
Rock Drills Home Page
for More Information & Accessories
MODEL M155 M155 M155
Chuck Size 7/8" x 3-1/4" 7/8" x 4-1/4"  1" x 4-1/4"
Bore 2-5/8" 2-5/8" 2-5/8"
Stroke 3" 3"" 3"
BPM 2100 2100 2100
CFM 110-120  110-120  110-120
Weight 61 lbs 61 lbs 61 lbs
Length 22-3/8" 22-3/8" 22-3/8"
Air Inlet Size 3/4" Male NPT 3/4" Male NPT 3/4" Male NPT


APT - DRY - Rock Drills Models
17643 109 ROCK DRILL (Round Shank) 3/4" x 3-1/4"
5197 115 ROCK DRILL 7/8" x 3-1/4"
5223 137 ROCK DRILL 7/8" x 3-1/4"
5225 137 ROCK DRILL 7/8" x 4-1/4"
5227 137 ROCK DRILL 1" x 4-1/4"
5229 155 ROCK DRILL 7/8" x 3-1/4"
5231 155 ROCK DRILL 7/8" x 4-1/4"
5233 155 ROCK DRILL 1" x 4-1/4"



USA Flag AMERICAN PNEUMATIC TOOLS

Still Made in America

WET Rock Drills

The Model 137 and Model 155 are used for general construction, utility work and plant maintenance. They are designed for drilling through granite, hard faced rock, quarry drilling and drilling secondary holes for blasting. These larger tools can be also utilised machinery. The Model 137 and 155 are also available in wet drill models when dust suppression is required.

m137 m155
M137 M155
  • 4 drilling speeds
  • Available in wet or dry models
  • Replaceable piston stem  bearing
  • Rubber handle grips
  • Latch type retainer
  • Swivel hose connector
  • 3 drilling speeds
  • Available in wet or dry models
  • Built-in automatic oiler
  • Replaceable piston stem bushing
  • Rubber handle grips
  • Latch type retainer
  • Swivel hose connector
  • Counter clockwise rotation
  • Noise reducing muffler available

Click Here for our APT WET Rock Drills Product Home Page

APT - WET- Rock Drill Specifications
Part # 5224 5226 5228 5230 5232 5234
Model M137 M137 M137 M155 M155 M155
Chuck Size 7/8" x 3-1/4" 7/8" x 4-1/4" 1" x 4-1/4" 7/8" x 3-1/4" 7/8" x 4-1/4" 1" x 4-1/4"
Bore 2-3/8" 2-3/8" 2-3/8" 2-5/8" 2-5/8" 2-5/8"
Stroke 2-5/8" 2-5/8" 2-5/8" 3" 3"" 3"
BPM 2300 2300 2300 2100 2100 2100
CFM 85-90 85-90 85-90 110-120 110-120 110-120
Weight 38lbs 38lbs 38 lbs 61lbs 61lbs 61lbs
Length 19-3/4" 19-3/4" 19-3/4" 22-3/8" 22-3/8" 22-3/8"
Air Inlet Size 1/2" Male NPT 1/2" Male NPT 1/2" Male NPT 3/4" Male NPT 3/4" Male NPT 3/4" Male NPT



APT - WET- Rock Drill Models
5224 137 ROCK DRILL - WET 7/8" x 3-1/4"
5226 137 ROCK DRILL -WET 7/8" x 4-1/4"
5228 137 ROCK DRILL - WET 1" x 4-1/4"
5230 155 ROCK DRILL - WET 7/8" x 3-1/4"
5232 155 ROCK DRILL - WET 7/8" x 4-1/4"
5234 155 ROCK DRILL - WET 1" x 4-1/4"



JET LOGO

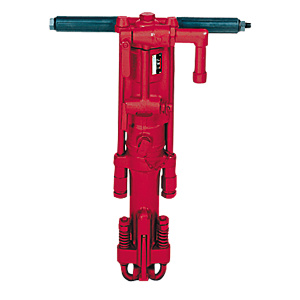

JET Rock Drill

JET Rock Drills

RD-60-1, 55-lb. Rock Drill

550022

JET® Rock Drills are ideal for multiple drilling applications. Engineered to maintain constant drilling speed the working parts are well lubricated for long tool life. JET Rock Drills T-handles and compact design allow for convenient transportation and storage on any jobsite
  • Heavy-duty forged steel construction for industry proven durability
  • Multi-position throttle for trouble-free starting
  • Industrial ratchet and pawl design prevents clockwise rotation and potential tool damage
  • Rubber-gripped, T-handle design reduces vibration and permits convenient jobsite transportation
  • Latch type tool retainer
JET Rock Drill Specifications
Hex Shank Size (In.) 1 x 4-1/4
Piston Stroke (In.) 2-9/16
Piston Diameter (In.) 2-9/16
Chuck Rotation Left
Free Speed (RPM) 200
Blows Per Minute 1,800
Force Per Blow at 90 PSI (Ft.) (Lbs.) 75
Weight (Lbs.) 60
Overall Length (In.) 3/4
Air Consumption (CFM) 91
Vibration Value (M/S2) 17.5
Air Inlet (NPT/In.) 3/4
Air Hose (ID/In.) 3/4
Air Pressure (PSI) 90

Click HERE for our JET Product page for this item

TAMCO LOGO

Toku Rock Drills



Tamco offers multiple rock drills for a wide variety of applictions. Whether you are drilling through rock, concrete, or brick, Tamco offers a rock drill that will fit your distinct requirements.

The Toku TS-55 60 pound class rock drill has all the power needed for the biggest jobs. They feature rugged construction and are designed for larger diameter bits and deeper drilling jobs.

The Toku TJ-20 and TJ-15 are mid-sized rock drills that pack a big punch. These drills are great for road building, shaft sinking, quarrying, as well as general demolition or construction work. Both models include removable inline oilers standard.

The Toku CP-9A and THD-1100N are lightweight drills that are able to get into smaller spaces other drills cannot. These D-Handled drills pack big power in a compact package.

All tools feature replaceable chuck bushings, drop forged alloy steel construction, and forged latch retainers. Mufflers are available for the TS-55, TJ-20, and TJ-15 models. TJ-20 and TJ-15 models include Clear-View inline oilers.



Click HERE for our TAMCO Product Home Page for this item

Toku TS-55 Rock Drill
Toku TS-55 Rock Drill Shank Size 7/8" x 3-1/4", 7/8" x 4-1/4", or 1" x 4-1/4"
Stroke Length 2-9/16" (65mm)
Piston Diameter 2-5/8" (66.6mm)
Impact Rate 1,800 B.P.M.
Rotation 200 R.P.M.
Weight 59.4 lbs. (27 kg.)
Overall Length 22-3/8" (568mm)
Air Consumption 91.81 C.F.M.
Air Inlet 3/4" NPT
Hose Size 3/4" (19mm)
Warranty 1 Year Limited Warranty



Toku TJ-20 Rock Drill
Toku TJ-20 Rock Drill Shank Size 7/8" x 3-1/4" or 7/8" x 4-1/4"
Stroke Length 1-15/16" (49mm)
Piston Diameter 2-11/16" (68mm)
Impact Rate 2,400 B.P.M.
Rotation 200 R.P.M.
Weight 40.7 lbs. (18.5 kg.)
Overall Length 24-1/32" (610mm)
Air Consumption 87.5 C.F.M.
Air Inlet 3/4" NPT
Hose Size 3/4" (19mm)
Warranty 1 Year Limited Warranty



Toku TJ-15 Rock Drill
Toku TJ-15 Rock Drill Shank Size 7/8" x 3-1/4" or 7/8" x 4-1/4"
Stroke Length 1-3/4" (45mm)
Piston Diameter 1-1/8" (54mm)
Impact Rate 2,450 B.P.M.
Rotation 250 R.P.M.
Weight 30.8 lbs. (14 kg.)
Overall Length 18-1/2" (468mm)
Air Consumption 56 C.F.M.
Air Inlet 3/4" NPT
Hose Size 3/4" (19mm)
Warranty 1 Year Limited Warranty



Toku THD-1100N Rock Drill
Toku THD-1100N Rock Drill Shank Size 7/8" x 3-1/4"
Stroke Length 1-7/32" (31mm)
Piston Diameter 1-1/2" x 7/8" (38mm x 22mm)
Impact Rate 3,200 B.P.M.
Rotation 350 R.P.M.
Weight 11.4 lbs. (5.2 kg.)
Overall Length 16-17/32" (420mm)
Air Consumption 28. C.F.M.
Air Inlet 3/8" NPT
Hose Size 1/2" (12.7mm)
Warranty 1 Year Limited Warranty





Paving Breaker Steel

Paving Breaker Steel

Tamco manufactures a full line of paving breaker steel in lengths from 14" to 120". Heavy duty, longer lengths, and specials can be made via request.

Click here for available items.



Paving Breaker Tools

Paving Breaker Tools

Tamco manufactures a complete line of paving breaker tools including asphalt cutters, clay spades, frost wedges, and many more items.

Click here for available items.



Paving Breaker Accessories

Paving Breaker Accessories

Tamco offers a full line of paving breaker accessories featuring ground rod drivers, tamping pads, sheathing drivers and many more.

Click here for available items.


Click here for:
Air Tool Mufflers, Whip & Air Hoses, In-Line Oilers,
Paving Breaker Accessories, Rivet Buster Accessories & Chipping Hammer Accessories (Non Steel Tooling)



17643
109 ROCK DRILL (ROUND SHANK) - 3/4 X 3-3/4
SALES TAX COLLECTED BY THIS MANUFACTURE IN SOME STATES
Mfg. item #: 17643
APT17643
Ships FREE via UPS to lower 48 states.5
$717.15

762
5197
115 ROCK DRILL - 7/8 X 3-1/4
SALES TAX COLLECTED BY THIS MANUFACTURE IN SOME STATES
Mfg. item #: 5197
APT5197
Ships FREE via UPS to lower 48 states.5
$1,250.35

762
5223
137 ROCK DRILL - 7/8 X 3-1/4
SALES TAX COLLECTED BY THIS MANUFACTURE IN SOME STATES
Mfg. item #: 5223
APT5223
Ships FREE via UPS to lower 48 states.5
$1,516.95

762
5225
137 ROCK DRILL - 7/8 X 4-1/4
SALES TAX COLLECTED BY THIS MANUFACTURE IN SOME STATES
Mfg. item #: 5225
APT5225
Ships FREE via UPS to lower 48 states.5
$1,516.95

762
5227
137 ROCK DRILL - 1 X 4-1/4
SALES TAX COLLECTED BY THIS MANUFACTURE IN SOME STATES
Mfg. item #: 5227
APT5227
Ships FREE via UPS to lower 48 states.5
$1,516.95

762
5229
155 ROCK DRILL - 7/8 X 3-1/4
SALES TAX COLLECTED BY THIS MANUFACTURE IN SOME STATES
Mfg. item #: 5229
APT5229
Ships FREE via UPS to lower 48 states.5
$1,766.23

762
5231
155 ROCK DRILL - 7/8 X 4-1/4
SALES TAX COLLECTED BY THIS MANUFACTURE IN SOME STATES
Mfg. item #: 5231
APT5231
Ships FREE via UPS to lower 48 states.5
$1,766.23

762
5233
155 ROCK DRILL - 1 X 4-1/4
SALES TAX COLLECTED BY THIS MANUFACTURE IN SOME STATES
Mfg. item #: 5233
APT5233
Ships FREE via UPS to lower 48 states.5
$1,766.23

762
5224
137 ROCK DRILL - WET - 7/8 X 3-1/4
SALES TAX COLLECTED BY THIS MANUFACTURE IN SOME STATES
Mfg. item #: 5224
APT5224
Ships FREE via UPS to lower 48 states.5
$1,583.60

762
5226
137 ROCK DRILL - WET - 7/8 X 4-1/4
SALES TAX COLLECTED BY THIS MANUFACTURE IN SOME STATES
Mfg. item #: 5226
APT5226
Ships FREE via UPS to lower 48 states.5
$1,583.60

762
5228
137 ROCK DRILL - WET - 1 X 4-1/4
SALES TAX COLLECTED BY THIS MANUFACTURE IN SOME STATES
Mfg. item #: 5228
APT5228
Ships FREE via UPS to lower 48 states.5
$1,583.60

762
5230
155 ROCK DRILL - WET - 7/8 X 3-1/4
SALES TAX COLLECTED BY THIS MANUFACTURE IN SOME STATES
Mfg. item #: 5230
APT5230
Ships FREE via UPS to lower 48 states.5
$1,850.20

762
5232
155 ROCK DRILL - WET - 7/8 X 4-1/4
SALES TAX COLLECTED BY THIS MANUFACTURE IN SOME STATES
Mfg. item #: 5232
APT5232
Ships FREE via UPS to lower 48 states.5
$1,850.20

762
5234
155 ROCK DRILL - WET - 1 X 4-1/4
SALES TAX COLLECTED BY THIS MANUFACTURE IN SOME STATES
Mfg. item #: 5234
APT5234
Ships FREE via UPS to lower 48 states.5
$1,850.20

762
Call for price. APT550022
