PosiTester SPG - Surfce Profile Gage

Click here to download manual

Surface Profile Gages for Blasted Steel, Textured Coatings, and Concrete Profile

Surface Profile Gages use a digital depth micrometer to measure and record peak to valley surface profile heights in preparation for the application of coatings

  • NEW Larger 2.8 inch impact resistant color touchscreen with redesigned keypad for quick menu navigation
  • NEW Weatherproof, dustproof, and water-resistant - IP65-rated enclosure
  • Alumina wear face and tungsten carbide tip for long life and continuous accuracy - field replaceable
  • PosiTector interchangeable platform - attach any PosiTector probe to a single gage body
  • Fast measurement rate of over 50 readings per minute - for quickly measuring large surfaces
  • USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
  • Certificate of Calibration showing traceability to PTB included (Long Form)

Conforms to ASTM D4417-B, ASTM D8271 (SPG TS only), AS 3894.5-C (with optional 30 degree tip),
U.S. Navy NSI 009-32, Navy NAVSEA 009-32, US Navy NAVSEA PPI 63101-000, SSPC PA 17, SANS 5772, and others

Standard Models

Includes ALL features as shown on left plus...

  • NEW Storage of 1,000 readings per probe - stored readings can be viewed or downloaded

Advanced Models

Includes ALL features as shown on left plus...

  • NEW Storage of 250,000 readings in up to 1,000 batches and sub-batches
  • SmartBatch allows entry of user-defined parameters and criteria to for quick statistical analysis comply with standards such as ASTM D4417 and SSPC PA-17
  • Live graphing of measurement data
  • NEW Touchscreen keyboard for quickly renaming batches, adding notes, and. more
  • WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
  • Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
  • Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols

Simple

  • Fast measurement rate of over 50 readings per minute - ideal for quickly and accurately measuring large surfaces
  • NEW Larger 2.8 inch impact resistant color touchscreen with redesigned keypad for quick menu navigation
  • NEW On-gage help explains menu items at the touch of a button
  • RESET feature instantly restores factory settings

Durable

  • Alumina wear face and tungsten carbide tip for long life and continuous accuracy - field replaceable tips
  • NEW Weatherproof, dustproof, and water-resistant - IP65-rated enclosure
  • NEW Ergonomic design with durable rubberized grip
  • Rugged, indoor/outdoor instrument - ideal for field or shop use
  • Shock-absorbing protective rubber holster for added impact resistance
  • Two year warranty on gage body AND probe

Accurate

  • Certificate of Calibration showing traceability to PTB included
  • Built-in temperature compensation ensures measurement accuracy
  • Glass Zero Plate and metal check shim included
  • Conforms to national and international standards including ASTM D4417 Method B and SSPC-PA17

Versatile

  • PosiTector body accepts all PosiTector SPG, RTR, 6000, 200, DPM, IRT, SST, SHD, BHI, and UTG probes easily converting from a surface profile gage to a coating thickness gage, dew point meter, soluble salt tester, hardness tester, or ultrasonic wall thickness gage
  • 30 degree angle interchangeable probe tip available for special surface profile applications
  • Cabled probes available for blasted steel, textured coatings, and concrete profile
  • NEW Auto rotating display with Flip Lock
  • Selectable display languages
  • Mils/Microns switchable

Powerful

  • Statistics mode continually displays/updates average, standard deviation, min/max, and number of readings while measuring
  • NEW Screen Capture - save 100 screen images for record keeping and review
  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • NEW Instant-on feature quickly powers up the gage if recently powered down
  • NEW Up to 30 percent longer battery life
  • USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
  • PosiSoft USB Drive - stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
  • Every stored measurement is date and time stamped
  • Includes PosiSoft Software for viewing and reporting data
  • Software Updates via web keep your gage current



Step 1: Select a Body (Standard or Advanced features)

Standard Models

Includes ALL features as shown on at a glance tab plus...

  • Hi Contrast reversible color LCD
  • Storage of 250 readings in one group stored readings can be viewed or downloaded
positector body standard no prob

Advanced Models

Includes ALL features as shown on at a glance tab plus...

  • Hi Contrast reversible color LCD
  • Storage of 100,000 readings in up to 1,000 batches and sub-batches
  • SmartBatch allows entry of user-defined parameters and criteria to comply with various standards and test methods
  • WiFi technology - wirelessly synchronizes with PosiSoft.net, downloads software updates and connects to mobile devices for expanded functionality
  • Bluetooth Wireless Technology for data transfer to a computer or optional portable printer
  • Real time graphing, picture prompting and batch notes
positector advanced model body no prob

NEW! PosiTector SmartLink Compatible

  • Wirelessly connect PosiTector SPG probes to your smart device
  • Turns your cell phone or tablet into a virtual PosiTector gage
  • Create and share professional PDF reports quickly and easily
  • Includes free mobile app
positector smartlink compatible

Step 2: Select a Probe (SPG, SPGS or SPGCS)


Probes SPG SPG S SPG CS
built in probe spg s cabled probe spg cs cabled probe
Built in probe Cabled probe Cabled probe
Probe Order Code PRBSPG PRBSPGS PRBSPGCS
Application Blasted Steel Textured Coatings
Measuring Range  0 - 500 μm (0 - 20 mils) 0 - 1500 μm (0 - 60 mils)
Accuracy + / - (5 μm + 5 percent)    + / - (0.2 mil + 5 percent)
Tip Angle 60 degree 60 degree
Radius 50 μm (2 mils) 500 μm (20 mils)

30 degree tips available for conforming to Australian standard AS 3994.5-C

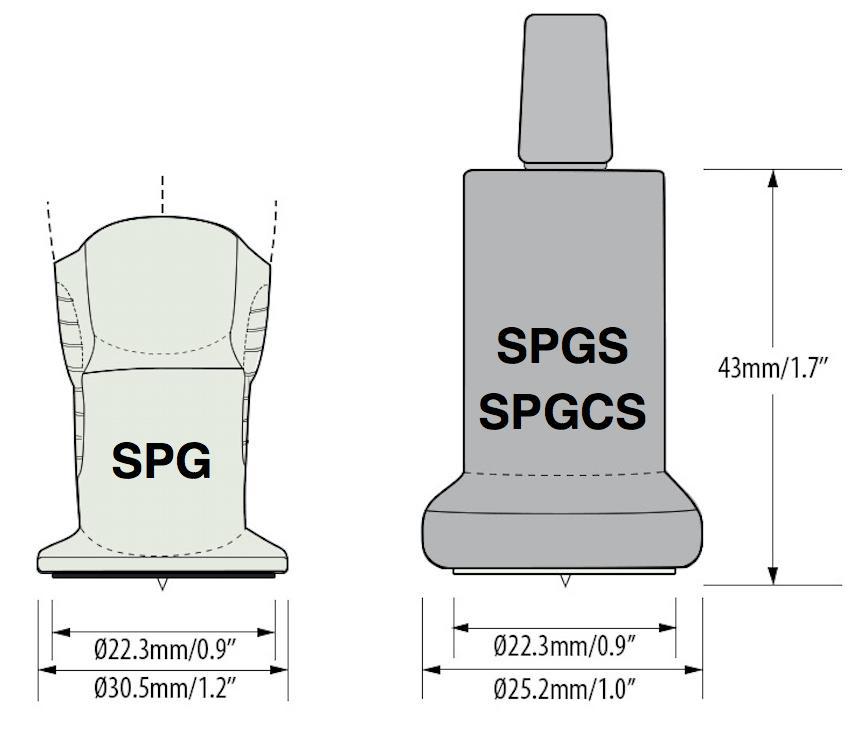

SPG probe specs

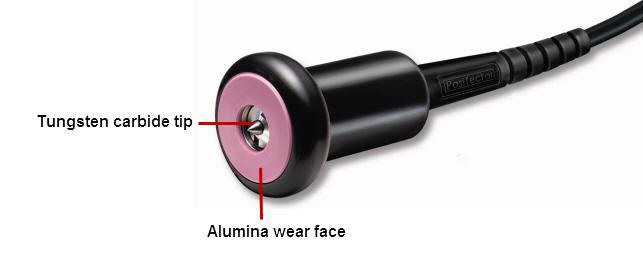

All probes feature durable Alumina wear face and tungsten carbide tip for long life and continued accuracy.

spg probe face

Probes SPG SPG S SPG CS
spg 1 probe and body spg s cabled probe spg Cs cabled probe
Built in probe Cabled probe Cabled probe
Standard Body and Probe  SPG 1 SPG S1 SPG CS1
Advanced Body with Probe  SPG 3 SPG S3 SPG CS3
Probe Only  PRBSPG PRBSPGS PRBSPGCS
Application Blasted Steel Textured Coatings
Measuring Range  0 - 500 micron (0 - 20 mils) 0 - 1500 micron (0 - 60 mils)
Accuracy + / - (5 μm + 5 percent)    + / - (0.2 mil + 5 percent)
Tip Angle 60 degree 60 degree
Radius 50 micron (2 mils) 500 micron (20 mils)
s-h alt

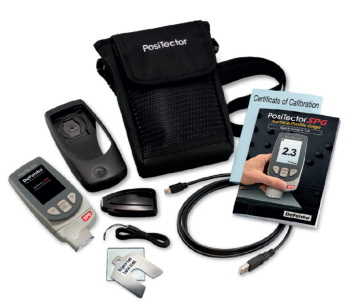

ALL GAGES COME COMPLETE with glass zero plate, metal shim, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, two (2) year warranty.

SIZE: 137 x 61 x 28 mm (5.4 x 2.4 x 1.1 inch)

WEIGHT: 140 g (4.9 oz.) without batteries

CONFORMS TO: ASTM D4417-B, AS 3894.5-C (with optional 30 degree tip angle), U.S. Navy NSI 009-32, SANS 5772 and others



PosiTector SPG - Surface Profile Gage
SPG1-E PosiTector SPG 1 Standard
SPG3-E PosiTector SPG 3 Advanced
SPGS1-E PosiTector SPG S 1 Standard
SPGS3-E PosiTector SPG S 3 Advanced
SPGCS1-E PosiTector SPG CS 1 Standard
SPGCS3-E PosiTector SPG CS 3 Advanced
SPG30-1-E PosiTector SPG30 1 Standard
SPG30-3-E PosiTector SPG30 3 Advanced
SPG30KIT Replacement Tips 30 Degrees
SPG60KIT Replacement Tips 60 Degrees
SPGZEROKIT Glass Plate and Shim
PRINTERBT Bluetooth Printer for use with PosiTector 6000/DPM/SPG Advanced models only
LENSSHIELD-E Protective Lens Shields (5) for PosiTector 6000/DPM/SPG only
BATTREAAA4PK Rechargeable Battery Pack 4 AAA eneloop batteries for PosiTector 6000/DPM/SPG only



positector probes

PosiTector Probes

PosiTector body accepts all PosiTector 6000, 200, DPM, UTG, RTR and SPG probes easily converting from a coating thickness gage to a dew point meter, surface profile gage or wall thickness gage

Non-Certified Metal Shim & Glass Zero Plate

Non-Certified Metal Shim and Glass Zero Plate

  • Provides a quick accuracy check of the instrument
  • Allows the user to perform practice measurements
  • Consists of a 76 μm (3 mil) check shim and a glass zero plate
  • Labeled in both Metric and Imperial units

A metal shim and glass zero plate are included with every PosiTector SPG

Certified SPG Standards

Certified SPG Standards

  • Used to verify the accuracy and operation of surface profile depth micrometers
  • Ideal for use in calibration labs
  • Standards consist of 4 sapphire test plates mounted in a precision ground steel base and supplied in a hard shell case
  • Sapphire test plates are individually serialized for traceability to PTB-includes a Certificate of Calibration
  • Certified and labeled in both Metric and Imperial units
Replacement Tungsten Carbide Probe Tips

Replacement Tungsten Carbide Probe Tips

  • 2 angles available: 60 or 30 degree
  • Includes replacement tool

ir printer

Bluetooth Printer receives data from Advanced models

  • Receives data via Bluetooth wireless technology.
  • Prints readings and statistical summary
  • Battery-operated
  • Light weight
  • One year Warranty
AC Power Cable AC Power Cable for continuous operation or battery charging

This kit supplies several alternate power solutions for your battery-operated PosiTector. They allow the gage to operate continuously without the need for batteries.

Use the cable alone to connect a PosiTector to your PCs built-in USB port that acts as a continuous power source. Or connect the cable to the included power adaptor which plugs into any AC wall electrical outlet, 110 or 220V.

A selection of electrical plugs is included which are capable of dealing with most countrys outlets.

PosiTector Case

PosiTector Case

Convenient hard shell case for carrying a PosiTector gage body and multiple probes - including any of the PosiTector 6000 Coating Thickness probes, DPM Dew Point Meter probes, SPG Surface Profile probes, or UTG Ultrasonic Wall Thickness probes.

Case has compartments for Certificates of Calibration, instruction manuals and other accessories.

Protective Lens Shield

Protective Lens Shield

  • Pack of five thin plastic lens shields
  • Ideal for protecting the PosiTector display from paint overspray.

One lens shield is included with every PosiTector instrument



SPG1-E
POSITECTOR SPG 1 STANDARD SURFACE PROFILE GAGE
CALL OR ADD TO CART FOR FREE 2ND DAY AIR UPS
Mfg. item #: SPG1-E
DEFSPG1-E
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$645.00

253
SPG3-E
POSITECTOR SPG 3 ADVANCED SURFACE PROFILE GAGE
CALL OR ADD TO CART FOR FREE 2ND DAY AIR UPS
Mfg. item #: SPG3-E
DEFSPG3-E
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$1,045.00

253
SPGS1-E
POSITECTOR SPG S1 STANDARD SURFACE PROFILE GAGE
CALL OR ADD TO CART FOR FREE 2ND DAY AIR UPS
Mfg. item #: SPGS1-E
DEFSPGS1-E
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$775.00

253
SPGS3-E
POSITECTOR SPG S3 ADVANCED SURFACE PROFILE GAGE
CALL OR ADD TO CART FOR FREE 2ND DAY AIR UPS
Mfg. item #: SPGS3-E
DEFSPGS3-E
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$1,175.00

253
SPGCS1-E
POSITECTOR SPG CS1 STANDARD COATING TEXTURE GAGE
CALL OR ADD TO CART FOR FREE 2ND DAY AIR UPS
Mfg. item #: SPGCS1-E
DEFSPGCS1-E
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$775.00

253
SPGCS3-E
POSITECTOR SPG CS3 ADVANCED COATING TEXTURE GAGE
CALL OR ADD TO CART FOR FREE 2ND DAY AIR UPS
Mfg. item #: SPGCS3-E
DEFSPGCS3-E
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$1,175.00

253
SPG30-1-E
POSITECTOR SPG30 1 STANDARD SURFACE PROFILE GAGE
CALL OR ADD TO CART FOR FREE 2ND DAY AIR UPS
Mfg. item #: SPG30-1-E
DEFSPG30-1-E
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$645.00

253
SPG30-3-E
POSITECTOR SPG30 3 ADVANCED SURFACE PROFILE GAGE
CALL OR ADD TO CART FOR FREE 2ND DAY AIR UPS
Mfg. item #: SPG30-3-E
DEFSPG30-3-E
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$1,045.00

253
SPG30KIT
30 DEGREE REPLACEMENT TIP KIT - FOR POSITECTOR SPG
Mfg. item #: SPG30KIT
DEFSPG30KIT
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$100.00

72
SPG60KIT
60 DEGREE REPLACEMENT TIP KIT - FOR POSITECTOR SPG
Mfg. item #: SPG60KIT
DEFSPG60KIT
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$55.00

72
SPGZEROKIT
GLASS PLATE AND SHIM KIT - FOR POSITECTOR SPG
Mfg. item #: SPGZEROKIT
DEFSPGZEROKIT
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$15.00

72
PRINTERBT
Mfg. item #: PRINTERBT
DEFPRINTERBT
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$295.00

72
LENSSHIELD-E
Mfg. item #: LENSSHIELD-E
DEFLENSSHIELD-E
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$10.00

72
BATTREAAA4PK
Mfg. item #: BATTREAAA4PK
DEFBATTREAAA4PK
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$20.00

253
