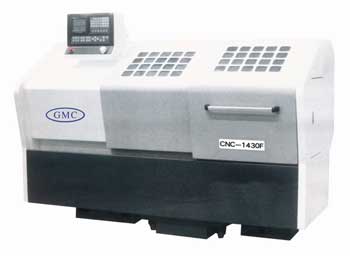

GMC CNC-1430F High Speed CNC Lathe

s-h alt



Click below for larger image
s-h alt s-h alt s-h alt
s-h alt s-h alt

Machine Standard Features and Equipment:

  • ISO 9001 certified

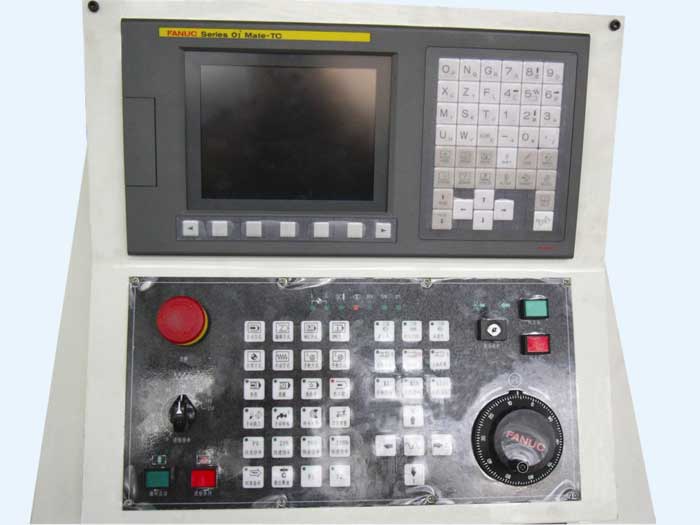

  • Ease-of-use FANUC 0i-mate CNC control

  • CNC programmable spindle speeds

  • Large spindle bore 2-1/4", D1-6

  • Full enclosure safety front and rear guards

  • Solid cast iron machine base

  • Heavy Duty guideway width 11"

  • CNC control electrical automatic 4-way turret toolpost

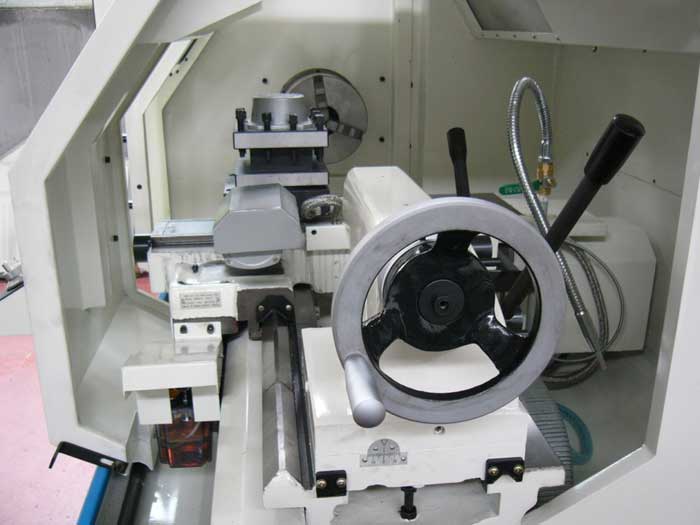

  • MPG Metal handwheel for X & Z

  • Fully ballscrews enclosure

  • RS 232 interface

  • High speed machining

  • Popular Ease-of-use Conversational programming, Conversational leads you to go through programming your part, just fill in the blanks and check the graphic. Select from all canned cycles, such as, profiling, material removing, roughing and finishing, inside & outside threading, line, arc, drilling and floating tapping, cut-off, grooving, radius, chamfering

  • G code and M code programming

  • CSS-constant surface speeds

  • CAD/CAM connector

  • Tools library

  • Tool length & radius compensation

  • Spindle is balanced, hardened and precision ground

  • Spindle is supported at 3-point by high precision bearings

  • All gears and shafts are hardened and precision ground

  • Guideways induction hardened and precision ground

  • Automatic lubrication system for ballscrews and guideways

  • Automatic lubrication system in headstock and feed box

  • One year warranty for parts

Standard Equipment for GMC CNC-1430F:

  • 8" manual 3-jaw chuck

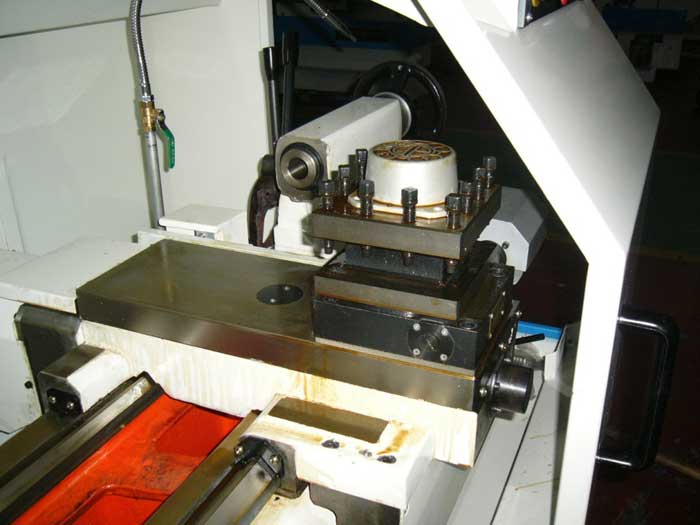

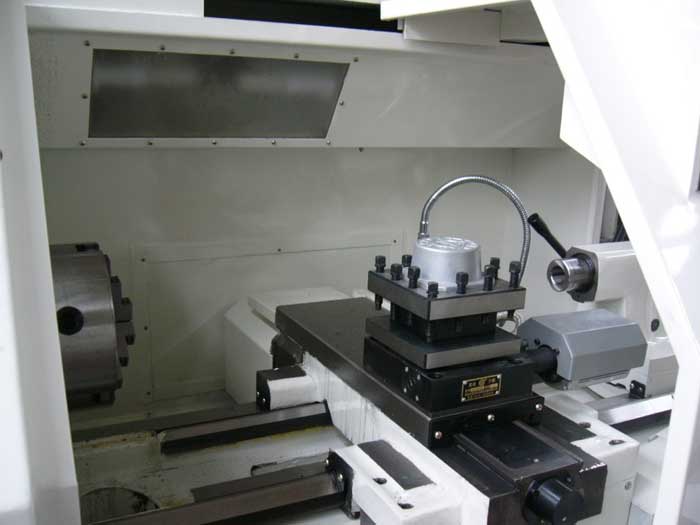

  • Electric automatic turret 4-position toolpost
  • MPG for both X & Z axis movement
  • Coolant system
  • Automatic lubrication system
  • Work light
  • Slide safety front doors
  • Full ballscrews enclosure
  • Full enclosure safety front and rear guards
  • Operation and maintenance manual
  • Tool box and leveling pads
SPECIFICATIONS
Model CNC-1430F
Max swing over bed 14-1/8"
Max. length of workpiece 30"
Max. cutting length 25-1/2"
Max. swing over cross slide 7-1/16"
Max. turning diameter over bed 12"
Width of Bed 11"
Spindle bore 2-1/4" , D1-6
Taper of spindle center M.T.# 5
Spindle speeds 140 - 3,000 rpm
Diameter of tailstock quill 2 -1/8"
Max. travel of tailstock quill (manual) 4-3/4"
Taper of tailstock quill center M.T. # 4
Auto turret toolpost CNC control  4-position turret
Max. tool size for auto turret toolpost  ¾" x ¾"
Max. travel for X axis 8"
Max. travel for Z axis 26"
Main motor 7-1/2 HP,  220V , 3 phase
Coolant pump 1/8 HP , 220V , 3 phase
Auto lubrication 1/16 HP , 220V , 1 phase
Machine weight, approx. 4,150 LBS
Overall Dimensions, LxWxH 91" x 50" x 65"
There is no further information.

Optional Equipment for GMC CNC-1430F:

  • 8" wedge-type hydraulic 3-jaw chuck (non thru hole) # D6-3H08
  • One year service certificate for FANUC oi-mate CNC control
  • One day on site training for FANUC Oi-mate CNC control
Mfg. item #:
GMCCNC-1430F
lease to own for as little as:$479 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$23,950.00
