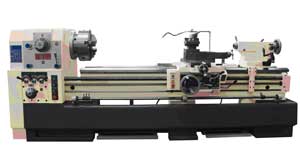

GMC GML 2280T-22120T High Precision Gap

Standard Features:

  • ISO 9001 certified
  • Made in Taiwan
  • One-piece cast iron base
  • Large spindle bore 4-1/8 inch
  • Heavy Duty spindle D1-11
  • Heavy Duty main motor 15 HP
  • 12 spindle speeds from 13 to 1.200 rpm
  • 44 kinds of inch threads, and 39 kinds of metric threads
  • Threading and feeding rate change without changing gears
  • Spindle is balanced, hardened and precision ground
  • Spindle is supported at 3-point by high precision bearings
  • All gears and shafts are hardened and precision ground
  • Guideways induction hardened and precision ground
  • Automatic lubrication system in headstock and feed box
  • Hand oil pump on apron for all guide ways lubrication
  • Power source: 220V/208V, 3 phase ( 440V/460V is optional )
  • One year industrial warranty for parts

Standard Equipment

  • 9 inch 3-jaw chuck
  • 12 inch 4-jaw chuck
  • 14 inch Face plate
  • 1 inch - 6 inch steady rest
  • Follow rest
  • Removeable gap
  • 4-way tools post
  • Foot brake
  • Halogen light
  • Full coolant system
  • Thread chasing dial
  • Carriage stop system
  • Tool box with tools
  • Operation manual
  • Parts manual
SPECIFICATIONS
Model No. GML-2280T      GML-22100T GML-22120T
Max. swing over bed 22" 22" 22"
Max. length of work piece   80"  100" 120"
Max. swing over cross slide 13" 13" 13"
Max. Swing in gap 30-7/8"  30-7/8" 30-7/8"
Width of Bed 15-3/4"
Spindle bore 4-1/8", D1-11
Taper of spindle center M.T.# 5
Spindle speeds 13-1,200rpm / 12 steps
Longitudinal feeds 0.0014-0.039 IPR, 36 kinds
Cross feeds 0.0007-0.02 IPR, 36 kinds
Inch threads 72 - 2  TPI, 44 kinds
Metric threads 0.2 - 14 mm , 39 kinds
Max. travel of top slide 7-1/2"
Max. travel of cross slide 12"
Diameter of tailstock quill 2-15/16"
Max. travel of tailstock quill 7"
Taper of quill center M.T. #5
Main motor 15 HP, 220V or 440V, 3 phase, prewired on 220V
Coolant pump motor 15HP, 220V or 440V, 3 phase, prewired on 220V
Machine weight, approx. 3950 lbs 4650 lbs 5350 lbs
Overall dimensions, inch 91 x 42 x 59 115 x 42 x 59 127 x 42 x 59

One year industrial warranty for parts

Optional Equipment:

  • Taper turning attachment
  • 2" to 7-1/2" steady rest
  • 12" 3-jaw chuck
  • NEWALL DRO C80
gmc/GML-2280T-th.jpg
GML-22100T
GMC PRECISION LATHES,22X100, 4-1/8 BORE, D1-11, 15 HP, 3 PHASE,TAIWAN
Mfg. item #: GML-22100T
GMCGML-22100T
lease to own for as little as:$599 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$29,950.00

1564
gmc/GML-2280T-th.jpg
GML-2280T
GMC PRECISION LATHES,22X80, 4-1/8 BORE, D1-11, 15 HP, 3 PHASE,TAIWAN
Mfg. item #: GML-2280T
GMCGML-2280T
lease to own for as little as:$559 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$27,950.00

1564
TA-GML-2280T
Mfg. item #: TA-GML-2280T
GMCTA-GML-2280T
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$2,350.00

1564
FP-GML-2280T
Mfg. item #: FP-GML-2280T
GMCFP-GML-2280T
Add to Equipment listed above for Free Freight or flat shipping rate of $10.00 within the Lower 48 States30
$1,150.00
