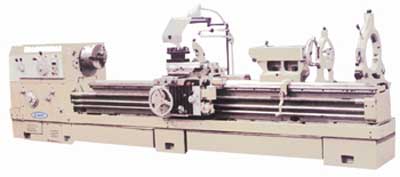

GMC GML 4080-40240 Heavy Duty Gap Bed La

Standard Features:

  • ISO 9001 certified
  • Large spindle bore 5 1/8"
  • Heavy Duty spindle D1-11
  • Heavy Duty guideway width 21-11/16"
  • Heavy Duty main motor 20 HP
  • 18 spindle speeds from 7.5 to 1,000 rpm

  • 74 kinds of inch threads, and 58 kinds of metric threads
  • Threading and feeding rate change without changing gears
  • 4-way rapid traverse to carriage and cross slide
  • Spindle is balanced, hardened and precision ground
  • Spindle is supported at 3-point by high precision bearings
  • All gears and shafts are hardened and precision ground
  • Guideways induction hardened and precision ground
  • Automatic lubrication system in headstock and feed box
  • Hand oil pump on apron for all guide ways lubrication
  • Adjustable hydraulic clutch for spindle turning and brake
  • Power 220V /208V , 3 phase, 60 HZ ( 440V /460V is optional )
  • One year industrial warranty for parts

Standard Equipment:

  • 15" 3-jaw chuck with top reversible jaws
  • 25" 4-jaw chuck with top reversible jaws
  • 31 ½" Face plate
  • 12" drive plate
  • 16" large steady rest with roller jaws
  • Follow rest
  • Removeable gap
  • 4-way tools post
  • Remote foot brake
  • Work light and coolant system
  • Section splash guard on rear of carriage
  • (2) dead centers and (1) reducing sleeve
  • Thread chasing dial
  • 4-way rapid traverse on carriage
  • tool box
SPECIFICATIONS
Model GML - 4080 GML- 40120 GML - 40160 GML - 40200 GML - 40240
Max. swing over bed 40"
Max. length of workpiece 80" 120" 160" 200" 240"
Max. swing over cross slide 28"
Max. Swing in gap 48"
Width of Bed 21-11/16"
Effective length in gap to spindle 14"
Effective length in gap to chuck 9"
Spindle bore 5 1/8" , D1-11
Taper of spindle center M.T.# 5
Spindle speeds 7.5 - 1,000 rpm / 18 steps
Longitudinal feeds 0.002-0.96 IPR, 64 kinds
Cross feeds 0.001-0.48 IPR, 64 kinds
Inch threads 32-1/16 TPI, 74 kinds
Metric threads 1-256 mm , 58 kinds
Module threads 0.5-128 mm, 58 kinds
Diametral pitch threads 32 - 1/8 DP , 58 kinds
Max. travel of top slide 8"
Max. travel of cross slide 19 -3/4"
Longitudinal rapid travel speed 150" / min.
Cross slide rapid travel speed 75" / min.
Diameter of tailstock quill 5"
Max. travel of tailstock quill 9 ½"
Taper of tailsotck quill center M.T. # 6
Main motor 20 HP, 220V or 440V, 3 phase, prewired on 220V
Rapid traverse motor 2 HP, 220 or 440V, 3 phase, prewired on 220V
Coolant pump motor 1/8 HP, 220V or 440V, 3 phase, prewired on 220V
Machine weight, approx., LBS 13,100 13,900 14,800 15,800 16,700
Overall dimensions, LxWxH 177x61x79 212x61x79 288x61x79 296x61x79 337x61x79
There is no further information.

Optional Equipment:

  • Taper turning attachment # TA-40160

  • Leveling pads, need (8)pcs for both models# LPAD-32160

  • 20" 3-jaw chuck, upgraded #D11-3J-20

  • 24" 3-jaw chuck, upgraded # D11-3J-24

  • 32" 4-jaw chuck, upgraded # D11-4J-24

  • 10" steady rest with roller jaws # SR10-32160

  • 24" large steady rest with roller jaws # SR-24-32160

  • DRO for #GML-4080,NEWALL # NW2080, 2 axis

  • DRO for #GML-40120,NEWALL # NW20120, 2 axis

  • DRO for #GM-40160,NEWALL # NW20160, 2 axis

  • DRO for #GML-40200,NEWALL # NW20200, 2 axis

  • DRO for #GML-40240,NEWALL # NW20240, 2 axis

Call for price. GMCGML-4080
