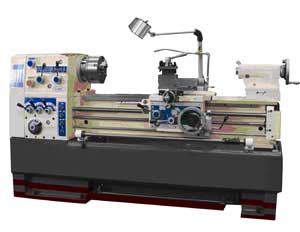

GMC GML 2143T-2180T High Precision Gap B

Standard Features:

• ISO 9001 certified
• Made in Taiwan
• One-piece cast iron base
• Large spindle bore 2-1/4 inch
• Heavy Duty spindle D1-6
• Heavy Duty main motor 7-1/2 HP
• 12 spindle speeds from 35 to 2,000 rpm
• 44 kinds of inch threads, and 39 kinds of metric threads
• Threading and feeding rate change without changing gears
• Spindle is balanced, hardened and precision ground
• Spindle is supported at 3-point by high precision bearings
• All gears and shafts are hardened and precision ground
• Guideways induction hardened and precision ground
• Automatic lubrication system in headstock and feed box
• Hand oil pump on apron for all guide ways lubrication
• Power source: 220V/208V, 3 phase ( 440V/460V is optional )
• One year industrial warranty for parts

Standard Equipment:

• 9 inch 3-jaw chuck
• 12 inch 4-jaw chuck
• 14 inch Face plate
• 1 - 6 inch steady rest
• Follow rest
• Removable gap
• 4-way tools post
• Foot brake
• Halogen light
• Full coolant system
• Thread chasing dial
• Carriage stop system
• Tool box with tools
• Operation manual
• Parts manual

One year industrial warranty for parts

Optional Equipment:

• Taper turning attachment
• 2 to 7-1/2 inch steady rest
• 12 inch 3-jaw chuck
• NEWALL DRO C80
