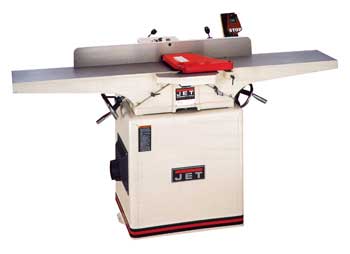

JET JJ-8HH 8" Jointer With Helical Head

This 8" jointer boasts a full 2HP motor and a new style helical insert cutter head. The cutter head provides an unmatched surface finish and a much quieter cut. The indexable 4 sided carbide inserts also make blade changes easier then ever before. Extra long cast iron beds allow for more accurate flat edges and faces on your material and the paddle style power switch can be mounted either below or above the infeed table.
  • Center-mounted fence with positive stops
  • Helical cutter head
  • High mount paddle style on/off switch
  • 4" Dust port and hood
  • Table adjustment handwheel
  • Heavy-Duty one-piece steel stand
  • Helical insert cutterhead with staggered carbide inserts for a superior finish and quieter cut
  • Heavy-duty cast iron infeed and outfeed tables with precision machined finish
  • Two-way tilting fence with positive stops at 45° and 90° to handle bevel operations
  • Large, heavy-duty table adjustment handwheel has a locking knob for quick, easy and secure table height corrections
  • Built-in dust chute with 4" port connects to your collection system for quick, easy and secure table height corrections
  • Center fence controls are conveniently mounted to allow quick adjustments
  • Powerful 2HP motor easily handles the thoughest jointing tasks
  • Paddle style on/off switch can be mounted above or below infeed table depending on users preference
Stock number 708468K
Model number JJ-8HH
Net weight (lbs) 398
Cutting capacity (WxD/in) 8x1/2
Cutterhead speed (RPM) 5700
Number of knives (helical/standard) 36 carbide inserts
Table height (in) 31 1/4
Table size (LxW/in) 66 1/2 x 9
Fence size (LxH/in) 38 1/2 x 4
Fence Tilts (deg) 45R, 45L
Fence positive stops (deg) 45, 90
Dust ports diameter (OD/in) 4
Dust collection minimum CFM required 350
Motor Amps 12
Motor HP 2HP
Motor Ph 1Ph
Motor Voltage 230V
