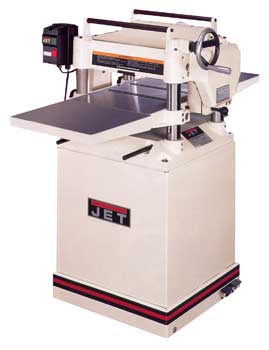

Jet JWP-15HH 15" Planer, Helical Head


s-h alt

s-h alt
2 Speed Gear Box

At a Glance
Details
Specifications
More Information
Accessories

This new 15" planer with helical style insert cutter head provides an unmatched surface finish and a much quieter cut. the indexable 4 sided carbide inserts also make blade changes easier then ever before. This machine also features a 3 HP motor and solid cast iron infeed and outfeed tables.

Features

Industrial magnetic controls
Helical cutterhead
Return rollers
Solid cast iron construction
Height adjustment handwheel
Solid cast iron table extension
Heavy-duty closed steel stand
Heavy-duty cast iron and steel construction for added strength and durability
Two speed gear box with automatic chain tensioner lets you adjust the feed rate to meet your needs
Large, cast iron, precision ground table for precise workpiece support
Powerful 3 HP TEFC induction motor with three V-belt transmission for smooth and consistent power
Sets of three steel infeed and outfeed rollers to help in the prevention of snipe
Two speed gear box lets you adjust the feed rate to meet your needs
Large handwheel with positive gear drive allows for quick and accurately table adjustments
Solid cast iron infeed and outfeed extension tables

SPECIFICATIONS
Stock number	708543
Model number	JWP-15HH
Net weight (lbs.)	540
Maximum planing width (in)	14-7/8
Maximum planing thickness (in)	6
Maximum full width depth of cut (in)	1/8
Minimum planing length (in)	8
Cutterhead diameter (in)	2 7/8
Cutterhead speed (rpm)	4500
Feed rate (fpm)	16 and 20
Number of knives	68 carbide inserts
Dust port diameter (od/in)	4
Dust collection minimum CFM required	400
Blade size	150 x 1 x 1/8
Amps	14
Motor HP	3HP
Motor phase	1
Motor voltage	230V

There is no further information.

There are no listed accessories.

Compare

ON SALE - JWP-15HH, 15 PLANER, HELI

Mfg. item #: 708543

WMH708543

Call for freight quote on this item or we will confirm freight charges before shipping.¹

Call for Price
