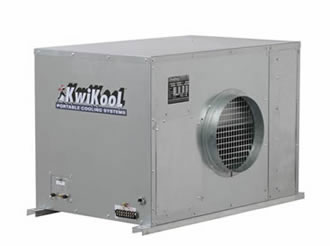

KwiKool KCW6021 Water Cooled Ceiling Mou

Fan Data Evaporator

Fan Type (Centrifigul)

DIRECT DRIVE

Air Flow (CFM)

200

Cold Air Supply Diameter (Inches)

12In.

Cold Air Return Diameter (Inches)

18 In.

Motor HP

1/2

Water Flow Data

I/O Intergral Condenser - In/Out

AUTOMATIC

Inlet Water 85F-95F Exit(GPM)

15

Inlet Water 75F-95F Exit(GPM)

7.5

Inlet Water 65F-95F Exit(GPM)

5

Inlet Water 55F-95F Exit(GPM)

3.75
Electrical Data

Power Supply (Volts)

208/230-Single Phase

Current Consumption (Amps)

37/33.5

Power Consumption (KW)

6.5

Maximum Circuit Breaker (Amps)

40

Minimum Circuit Ampacity (Amps)

38.5

Min/Max Voltage

195-225/210-250

Dimensional Data Unitary Models
Width x Depth x Height (Inches) Master

24X35.5X25

Weight (Lbs.)

288

Shipping Weight (Lbs.)

388

SPECIFICATIONS
HEATING & COOLING CAPACITY
BTU/hr @ 95 F at 60%RH

60,000 (5 TONS)

COMPRESSOR DATA
Compressor Type

Hermetic Recip.

Operating Temperatures

60-110 F .50%RH

Non-CFC Refrigerant Charge (Lbs.)

407C



Click Here To Download Printer Friendly Specification Chart

Safety Device Data

Compressor Overload

INTERNAL

Fan Motor Overload

AUTOMATIC INTERNAL

Evaporator Freeze-up

HOT GAS BYPASS

High Pressure Switch

MANUAL

Low Pressure Switch

AUTOMATIC

Compressor Short Cycle

YES

Automatic Restart

YES

Thermostat

MICROPROCESSOR/DIGITAL

Condensate Pump w 20' Head Pres.

YES

Condensate Pump Overflow

YES

Condensate Tank Overflow

YES

KCW6021
Mfg. item #: KCW6021
KWIKCW6021
lease to own for as little as:$145 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$7,247.22
