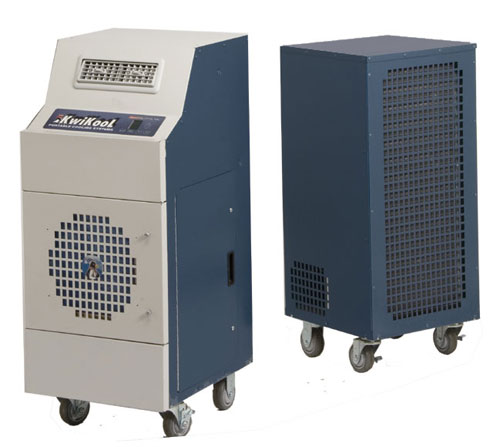

KwiKool SPLAC1411 Air-Cooled Split Model

Fan Data Evaporator

Fan Type (Centrifigul)

DIRECT DRIVE

Air Flow (CFM)

460/3 Speed

Supply Air Chute Data

ADJUSTABLE VENT

Supply Air Chute Max. Length

2-5"Dia.x12"Length

Motor HP

1/6

Condenser

I/O Intergral Condenser - In/Out

BALANCED AIR FLOW

Fan Type (Centrifigul)

DIRECT DRIVE

Air Flow (CFM)

700

Condenser Exhaust Duct (Optional)

1x12"Dia.x8' Length

Condenser Duct Max. Length

25'

Motor HP

1/3

Electrical Data

Power Supply (Volts)

115/Single Phase

Current Consumption (Amps)

14.5

Power Consumption (KW)

1.35

Maximum Circuit Breaker (Amps)

20

Minimum Circuit Ampacity (Amps)

17.24

Min/Max Voltage

105-125

Power Cord Gauge/Length

14/6'

Plug Configruation

NEMA 5-15

Dimensional Data SPLAC Model
Width x Depth x Height (Inches) Master

16.25X19.5X40

Width x Depth x Height (Inches) Slave

16.25X16.25X36

Weight (Lbs.)

261

Shipping Weight (Lbs.)

336

SPECIFICATIONS
COOLING CAPACITY

BTU/hr @ 95 F at 60%RH

13,850 (1.1 TON)

COMPRESSOR DATA
Compressor Type Hermetic Recip.
Operating Temperatures

60-110 F .50%RH

Non-CFC Refrigerant Charge (Lbs.)

421A



Click Here To Download Printer Friendly Specification Chart

Safety Device Data

Compressor Overload

INTERNAL

Fan Motor Overload

AUTOMATIC INTERNAL

Evaporator Freeze-up

HOT GAS BYPASS

High Pressure Switch

MANUAL

Low Pressure Switch

AUTOMATIC

Compressor Short Cycle

YES

Automatic Restart

YES

Thermostat

MICROPROCESSOR/DIGITAL

Condensate Pump w 20' Head Pres.

YES

Condensate Pump Overflow

YES

Condensate Tank Overflow

YES
