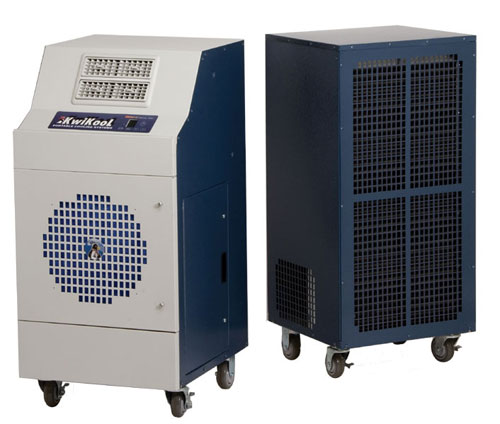

KwiKool SPLAC2421 Air-Cooled Split Model

SPECIFICATIONS
COOLING CAPACITY
BTU/hr @ 95 F at 60%RH	23,500 (2 TONS)
COMPRESSOR DATA
Compressor Type	Hermetic Recip.
Operating Temperatures	60-110 F .50%RH
Non-CFC Refrigerant Charge (Lbs.)	407C

Click Here To Download Printer Friendly Specification Chart

Specifications
Fan Data Evaporator
Fan Type (Centrifigul)	DIRECT DRIVE
Air Flow (CFM)	750/3 Speed
Supply Air Chute Data	ADJUSTABLE VENT
Supply Air Chute Max. Length	2-6"Dia.x15"Length
Motor HP	1/4
Condenser
I/O Intergral Condenser - In/Out	BALANCED AIR FLOW
Fan Type (Centrifigul)	DIRECT DRIVE
Air Flow (CFM)	1100
Condenser Exhaust Duct (Optional)	1x14"Dia.x8' Length
Condenser Duct Max. Length	25'
Motor HP	1/4
Electrical Data
Power Supply (Volts)	208/230-Single Phase
Current Consumption (Amps)	13.25/12.5
Power Consumption (KW)	2.5
Maximum Circuit Breaker (Amps)	20
Minimum Circuit Ampacity (Amps)	13.44
Min/Max Voltage	195-225/210-250
Power Cord Gauge/Length	12AWG/6
Plug Configruation	NEMA 6-20
Dimensional Data SPLAC Model
Width x Depth x Height (Inches) Master	20.25X19.25X42.5
Width x Depth x Height (Inches) Slave	20.25X20.25X40
Weight (Lbs.)	328
Shipping Weight (Lbs.)	403
Safety Device Data
Compressor Overload	INTERNAL
Fan Motor Overload	AUTOMATIC INTERNAL
Evaporator Freeze-up	HOT GAS BYPASS
High Pressure Switch	MANUAL
Low Pressure Switch	AUTOMATIC
Compressor Short Cycle	YES
Automatic Restart	YES
Thermostat	MICROPROCESSOR/DIGITAL
Condensate Pump w 20' Head Pres.	YES
Condensate Pump Overflow	YES
Condensate Tank Overflow	YES


At a Glance
Details
Specifications
More Information
Accessories

There are no further details.

There are no further specifications.

There is no further information.

There are no listed accessories.

Compare

2 TON SPLIT SYSTEM PORTABLE AIR CON

Mfg. item #: SPLAC2421

KWISPLAC2421

Call for freight quote on this item or we will confirm freight charges before shipping.¹

Call for Price
