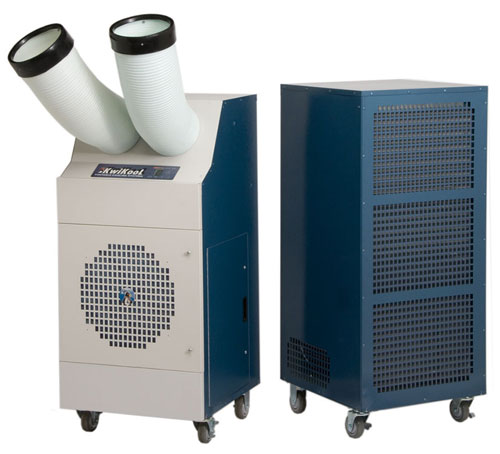

KwiKool SPLAC4221 Air-Cooled Split Model

Fan Type (Centrifigul)

DIRECT DRIVE

Air Flow (CFM)

1400/3 Speed

Supply Air Chute Data

2-8"Dia.x21"Length

Supply Air Chute Max. Length

35'

Motor HP

1/2

I/O Intergral Condenser - In/Out

BALANCED AIR FLOW

Fan Type (Centrifigul)

DIRECT DRIVE

Air Flow (CFM)

2100

Condenser Exhaust Duct (Optional)

1-18"Dia.x8'Length

Condenser Duct Max. Length

50'

Motor HP

3/4

Power Supply (Volts)

208/230-Single Phase

Current Consumption (Amps)

37.2/22.75

Power Consumption (KW)

6.5

Maximum Circuit Breaker (Amps)

40

Minimum Circuit Ampacity (Amps)

34.25

Min/Max Voltage

195-225/210-250

Power Cord Gauge/Length

10 AWG/10

Plug Configruation

FIELD SUPPLIED

22.25X19.5X48.5

Width x Depth x Height (Inches) Slave

22.25X22.25X49

Weight (Lbs.)

501

Shipping Weight (Lbs.)

601

BTU/hr @ 95 F at 60%RH

42000 (3-1/2 TONS)

60-110 F .50%RH

Non-CFC Refrigerant Charge (Lbs.)

407C

Compressor Overload

INTERNAL

Fan Motor Overload

AUTOMATIC INTERNAL

Evaporator Freeze-up

HOT GAS BYPASS

High Pressure Switch

MANUAL

Low Pressure Switch

AUTOMATIC

Compressor Short Cycle

YES

Automatic Restart

YES

Thermostat

MICROPROCESSOR/DIGITAL

Condensate Pump w 20' Head Pres.

YES

Condensate Pump Overflow

YES

Condensate Tank Overflow

YES
