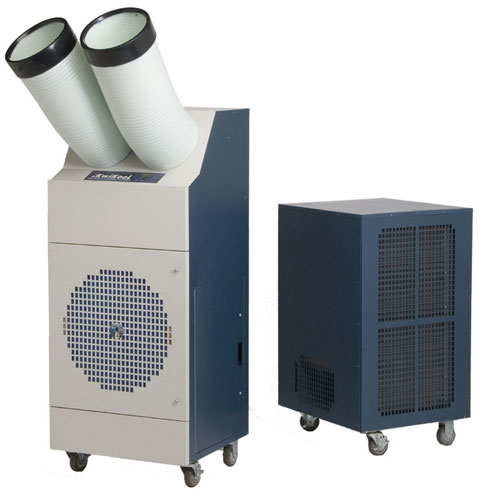

KwiKool SPLAC6021 Air-Cooled Split Model

Fan Type (Centrifigul)

DIRECT DRIVE

Air Flow (CFM)

2000/3 Speed

Supply Air Chute Data

2-10"Dia.x24"Length

Supply Air Chute Max. Length

50'

Motor HP

1

I/O Intergral Condenser - In/Out

BALANCED AIR FLOW

Fan Type (Centrifigul)

DIRECT DRIVE

Air Flow (CFM)

3500

Condenser Exhaust Duct (Optional)

1-20"Dia.x8'Length

Condenser Duct Max. Length

65'

Motor HP

1

Power Supply (Volts)

208/230-Single Phase

Current Consumption (Amps)

45.5

Power Consumption (KW)

8.8

Maximum Circuit Breaker (Amps)

60 at 208-V/50 at 230-V

Minimum Circuit Ampacity (Amps)

50

Min/Max Voltage

195-225/210-250

Power Cord Gauge/Length

8AWG/10

Plug Configruation

FIELD SUPPLIED

24.25X22.25X57.5

Width x Depth x Height (Inches) Slave

24.25X30.25X40

Weight (Lbs.)

655

Shipping Weight (Lbs.)

755

BTU/hr @ 95 F at 60%RH

60000 (5 TON)

60-110 F .50%RH

Non-CFC Refrigerant Charge (Lbs.)

407C

Compressor Overload

INTERNAL

Fan Motor Overload

AUTOMATIC INTERNAL

Evaporator Freeze-up

HOT GAS BYPASS

High Pressure Switch

MANUAL

Low Pressure Switch

AUTOMATIC

Compressor Short Cycle

YES

Automatic Restart

YES

Thermostat

MICROPROCESSOR/DIGITAL

Condensate Pump w 20' Head Pres.

YES

Condensate Pump Overflow

YES

Condensate Tank Overflow

YES
