MasPower MEC HD Series Generators

MasPower's MEC Series of heavy duty generators are powered by a proven Yanmar diesel engine. Operating at 1800 RPM, the Yanmar diesel offers long life, reduced fuel consuption, and smooth, quiet service. The engines are radiator-cooled and coupled to a brushless Mecc Alte generator.

Features:

  • Automatic shutdown for low oil pressure/high water temperature

  • Primary fuel filter

  • 12 volt starting

  • Muffler

  • Owner's manual

  • Skid mount

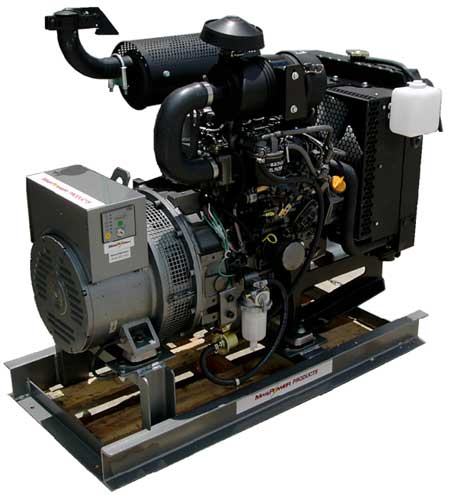

MEC8DO (standard) shown
SPECIFICATIONS
Model MEC6DO MEC8DO MEC10DO MEC14DO MEC16DO MEC18DO MEC22DO MEC35DO MEC45DO
Engine 3TNV70 3TNV76C 3TNV82A 3TNV88 3TNV84T 4TNV88 4TNV84T 4TNV98 4TNV98T
Horsepower 10.7 12.1 17.7 21.7 25.2 29 35.9 54.7 67.2
Engine Type Yanmar
Cylinders 3 4
Cooling Radiator
Fuel, GPH 0.59 0.67 0.98 1.2 1.4 1.6 1.9 3.0 3.7
Generator Mecc Alte Brushless
AC Max output (kW) 6 8 10 14 16 18 22 35 45
Voltage 120 / 240
Amps @ 120V 42 67 83.3 116 133 150 183 292 375
RPM / Hz 1800 / 60
Skid Steel
Weight 525 585 660 775 825 890 1350
Size inches (LxWxH) 43x24x35 44x24x36 47x24x37 52x24x37 52x24x37 55x24x37 60x24x38 60x24x38
There are no further details.
There are no further specifications.
There is no further information.
There are no listed accessories.
