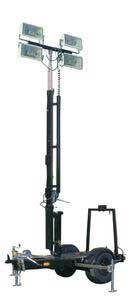

MultiQuip MLT Light Tower
|
|
Light tower trailer, less power source
The base unit for the MLT series light towers. Offered without a power source for contractors who already own a Multiquip DA7000SSA generator or SDW225SSA
welder. It can also be used to provide lighting for indoor applications by connecting directly to an alternate power source.
-
Can be used with a Multiquip DA7000SSA generator or SDW225SSA welder
-
Withstands winds up to 72 mph (115 kph) with, and 55 mph (88 kph) without, an approved generator
-
Ballasts and light switches are protected by inside a waterproof box
-
Mast extends to 30 feet (9 meters) and can be rotated 360 degrees
-
Four 1,000-watt metal halide floodlights illuminates an area of 5 to 7 acres (3.2 hectares)
|
|
Specifications
|
|
Model
|
MLT
|
|
Generator
|
DA7000SSA1
|
SDW225SSA1
|
|
Fuel Tank Capacity
|
30 gal
|
113 L
|
|
Ground Clearance
|
6.5 in
|
165 cm
|
|
Standard Hitch Type
|
29228 2 inch Ball Adjustable
|
|
Optional Hitch Types
|
29369 3 inch Pintle
|
|
Overall Length
|
173 in
|
4394 cm
|
|
Overall Width
|
70 in
|
1778 cm
|
|
Overall Height
|
50 in
|
1270 cm
|
|
Shipping Dimensions
|
173 x 70 x 50 in
|
4394 x 1778 x 1270 cm
|
|
Operating Weight
|
1,744 lb
|
791 kg
|
|
Shipping Weight
|
1744 lb
|
791 kg
|
|
Floodlights
|
41000 watt Metal Halide
|
|
Light Coverage
|
5 to 7 acres
|
2 to 2.8 hectares
|
|
Lumens
|
440,000
|
|
Lamp Termination
|
4 x 3-pin QD Plug
|
|
Max. Tower Height
|
32 ft
|
9.75 m
|
|
Tower Support Points
|
4
|
|
Wind Stability w/o Genset
|
45 mph
|
72 kph
|
|
Winch Capacity
|
1,500 lb
|
680.4 kg
|
|
Winch Wire Size
|
3/16 in
|
|
Notice: Features and equipment specifications are subject to change without notice.
|
|
|
12.5 HP Kubota Z482 Diesel, 7kW gen, 120/240V
A revolutionary concept in light tower design. This modular light tower can be powered by either a generator, welder generator or other power source. The
MLTDA7 is powered by with a Multiquip DA7000SSW generator with a brushless alternator design, superior voltage regulation and excellent motor starting capabilities.
-
Can be used with a Multiquip DA7000SS generator or SDW225SS welder
-
Withstands winds up to 72 mph (115 kph) with, and 55 mph (88 kph) without, an approved generator
-
Ballasts and light switches are protected by inside a water proof box
-
Mast extends to 30 feet (9 meters) and can be rotated 360 degrees
-
Four 1,000-watt metal halide floodlights illuminates an area of 5 to 7 acres (3.2 hectares)
|
|
Specifications
|
|
Model
|
MLTDA7
|
|
Generator
|
DA7000SSA1
|
SDW225SSA1
|
|
Sound Level @ 23ft
|
65.7 dBA
|
|
Fuel Tank Capacity
|
30 gal
|
113 L
|
|
Run Time w/ 3/4 Load
|
48 hr
|
|
Ground Clearance
|
6.5 in
|
165 cm
|
|
Standard Hitch Type
|
29228 2 in Ball Adjustable
|
|
Optional Hitch Types
|
29369 3 in Pintle
|
|
Overall Length
|
173 in
|
4394 cm
|
|
Overall Width
|
70 in
|
1778 cm
|
|
Overall Height
|
50 in
|
1270 cm
|
|
Shipping Dimensions
|
173 x 70 x 50 in
|
4394 x 1778 x 1270 cm
|
|
Operating Weight
|
1,644 lb
|
745.7 kg
|
|
Shipping Weight
|
1644 lb
|
745.7 kg
|
|
Floodlights
|
4 - 1000 watt Metal Halide
|
|
Light Coverage
|
5 to 7 acres
|
2 to 2.8 hectares
|
|
Lumens
|
440,000
|
|
Lamp Termination
|
4 x 3-pin QD Plug
|
|
Max. Tower Height
|
32 ft
|
9.75 m
|
|
Tower Support Points
|
4
|
|
Wind Stability w/ Genset
|
72 mph
|
115.9 kph
|
|
Winch Capacity
|
1,500 lb
|
680.4 kg
|
|
Winch Wire Size
|
3/16 in
|
|
Max. Generator Output
|
7,000W
|
|
Cont. Generator Output
|
6,000W
|
|
Voltage
|
120/240 V
|
|
Amperage
|
50/25 A
|
|
Receptacles
|
(1) 5-15R 15A 120V GFCI Duplex
|
|
(1) L5-30R 30A 120V Twist Lock
|
|
(1) L14-20R 20A 120/240V Twist Lock
|
|
(1) CS-6369 50A 120/240V Twist Lock
|
|
Notice: Features and equipment specifications are subject to change without notice.
|
|
|
12.5HP Kubota Z482Diesel, 6.6kWwelder/generator
A revolutionary concept in light tower design. This modular light tower can be powered by a generator, welder/generator or other power source. The MLTDSDW7 is
driven by a Multiquip SDW225SS welder/generator that features a brushless alternator design, superior voltage regulation and excellent arc characteristics.
-
Can be used with a Multiquip DA7000SS generator or SDW225SS welder
-
Withstands winds up to 72 mph (115 kph) with, and 55 mph (88 kph) without, an approved generator
-
Ballasts and light switches are protected by inside a waterproof box
-
Mast extends to 30 feet (9 meters) and can be rotated 360 degrees
-
Four 1,000-watt metal halide floodlights illuminates an area of 5 to 7 acres (3.2 hectares)
|
|
Specifications
|
|
Model
|
MLTSDW7
|
|
Generator
|
DA7000SSA1
|
SDW225SSA1
|
|
Sound Level @ 23ft
|
68.7 dBA
|
|
Fuel Tank Capacity
|
30 gal
|
113 L
|
|
Run Time w/ 3/4 Load
|
48 hr
|
|
Ground Clearance
|
6.5 in
|
165 cm
|
|
Standard Hitch Type
|
29228 ââ¬â 2 in Ball Adjustable
|
|
Optional Hitch Types
|
29369 ââ¬â 3 in Pintle
|
|
Overall Length
|
173 in
|
4394 cm
|
|
Overall Width
|
70 in
|
1778 cm
|
|
Overall Height
|
50 in
|
1280 cm
|
|
Shipping Dimensions
|
173 x 70 x 50 in
|
4340 x 1778 x 1280 cm
|
|
Operating Weight
|
1,744 lb
|
791 kg
|
|
Shipping Weight
|
1744 lb
|
791 kg
|
|
Floodlights
|
4 ââ¬â 1000 watt Metal Halide
|
|
Light Coverage
|
5 to 7 acres
|
2 to 2.8 hectares
|
|
Lumens
|
440,000
|
|
Lamp Termination
|
4 x 3-pin QD Plug
|
|
Max. Tower Height
|
32 ft
|
9.75 m
|
|
Tower Support Points
|
4
|
|
Wind Stability w/ Genset
|
72 mph
|
115.9 kph
|
|
Winch Capacity
|
1,500 lb
|
680.4 kg
|
|
Winch Wire Size
|
3/16 in
|
|
Max. Generator Output
|
6,600W
|
|
Cont. Generator Output
|
6,000W
|
|
Voltage
|
120/240 V
|
|
Amperage
|
50/25 A
|
|
Receptacles
|
(1) 5-15R 15A 120V GFCI Duplex
|
|
(1) L5-30R 30A 120V Twist Lock
|
|
(1) L14-20R 30A 120/240V Twist Lock
|
|
Max. Amperage
|
225 A
|
|
Current Range
|
50-225 W
|
|
Voltage Range
|
15-28 V
|
|
Duty Cycle
|
100 @ 200A
|
|
Notice: Features and equipment specifications are subject to change without notice.
|
|
29720
|
Ball hitch (Std - adjustable height) option for light towers (not installed, order separately)
|
1768 (802)
|
|
29721
|
Pintle hitch (adjustable height) option for light towers (not installed, order separately)
|
1768 (802)
|
|
29791
|
Pintle hitch (fixed height) option for light towers (not installed, order separately)
|
1768 (802)
|
LIGHT TOWER MODULAR** CALL 800-458-3687 FOR CURRENT PRICING & AVAILABILITY
Mfg. item #: MLT
MULMLT
Call for freight quote on this item or we will confirm freight charges before shipping.1
WELDER 225A 6KWTIER 4F GFCI
CALL 800-458-3687 FOR A FREIGHT QUOTE AND AVAILABILITY
Mfg. item #: SDW225SSA1
MULSDW225SSA1
lease to own for as little as:$157 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
MODULAR LIGHT TOWER DIS-SEE MLTDA7** CALL 800-458-3687 FOR CURRENT PRICING & AVAILABILITY
Mfg. item #: MLTDA7
MULMLTDA7
lease to own for as little as:$259 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
GENERATOR, 7KW, KUBOTA,ELECSTART,GF** CALL 800-458-3687 FOR CURRENT PRICING & AVAILABILITY
Mfg. item #: DA7000SSA1
MULDA7000SSA1
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
LIGHT TOWER MODULAR W/SDW225SSA WEL** CALL 800-458-3687 FOR CURRENT PRICING & AVAILABILITY
Mfg. item #: MLTSDW7
MULMLTSDW7
Call for freight quote on this item or we will confirm freight charges before shipping.1
HITCH BALL 2 ADJUSTABLE HEIGHT LT12
Mfg. item #: 29720
MUL29720
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
HITCH PINTLE KIT ADJUSTABLE HEIGHT OPTIO
Mfg. item #: 29721
MUL29721
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
W/A HITCH PINTLE KIT FIXED LT12
Mfg. item #: 29791
MUL29791
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
