TrunkPump - Hydraulic Water Pumps

You can run your TrunkPump all night to draw down a retention pond for maintenance that is overnight labor from an employee who works odd hours, is always on time and never complains.

Doug McFarland, Co-Founder, TrunkPump

TrunkPump Product Details

HYDRAULIC PUMPS AT A GLANCE

MODEL FLOW PRESSURE SOLIDS
TP-HYD2
2" Dewatering
240gpm
14,400gph
37psi
85' head
Dirty Water
TP-HYD3
3" Dewatering
280gpm
16,800gph
37psi
85' head
Dirty Water

trunkpump hydraulic pump

DEWATERING PUMP

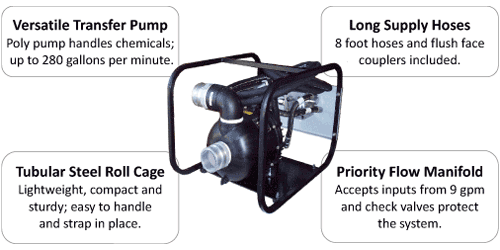

TP-HYD2: 2 inch Self-Priming Reinforced Polyester Pump

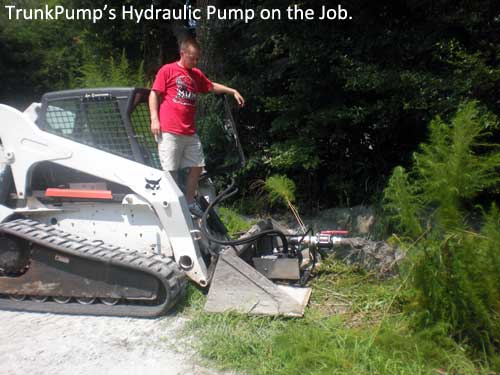

Use for a wide variety of chemical/transfer/evacuation applications using the remote hydraulics on your skid steer or compact equipment.

Pump: 2 inch self-priming reinforced polyester centrifugal pump with EPDM rubber coated seals, plastic impeller & volute and stainless steel internal hardware.
Hydraulics: Requires 9gm hydraulic flow routed through aluminum priority flow manifold which regulates pressure and flow rate. Includes 8’ supply hoses with flush face couplers.
Frame: Tubular Steel
Dimensions: 26  L x 20  W x 20 H
Weight: 70 lbs.
Performance: 240gpm, up to 32psi

DEWATERING PUMP
TP-HYD3: 3 inch Self-Priming Reinforced Polyester Pump

Use for a wide variety of chemical/transfer/evacuation applications using the remote hydraulics on your skid steer or compact equipment.

Pump: 3 inch self-priming reinforced polyester centrifugal pump with EPDM rubber coated seals, plastic impeller & volute and stainless steel internal hardware.
Hydraulics: Requires 9gm hydraulic flow routed through aluminum priority flow manifold which regulates pressure and flow rate. Includes 8’ supply hoses with flush face couplers.
Frame: Tubular Steel
Dimensions: 26 L x 20 W x 20 H
Weight: 75 lbs.
Performance: 280gpm, up to 36psi

FAQ - Frequently Asked Questions

Why should I choose TrunkPump?

Low maintenance and ease of use are the main reasons. If you do not like maintaining a gas-powered pump and are tired of lugging one around, TrunkPump might be the right choice for you.

So, it just hooks up to my tractor?

Yes, it attaches to your Category 1 three-point hitch and is powered by the Power Take Off (PTO).

What about horsepower requirements?

Our largest pump (4 inch) requires 15hp, the others only 8hp. Most compact tractors have more than enough power to run a TrunkPump.

Sounds pretty simple, how does it work?

It is simple, by design. TrunkPump takes the power from your tractor, reverses the rotation and increases rpms from 540rpm up to 3500rpm to power the pump. All this is done on a sturdy platform for easy and safe transport.

What is this I hear about a hydraulic version?

After years of requests we now offer a hydraulically driven model that is powered by the remote hydraulics from a variety of compact equipment  ÂÄÂùfrom a Bobcat  down to the Dingo that ate my baby.

Are there any special requirements for the hydraulic model?

The hydraulic model requires 9gpm of hydraulic flow at 1250psi.

What if I have got less or more flow than that?

If you got less flow the pump will run at low speed and not work properly. If you have more flow our priority flow manifold sends a priority flow of 9gpm/1250psi to the pump and the excess returns to your hydraulic source.

I have got some more questions, what should I do?

Please contact us! Email sales@southern-tool.com call our toll-free number at 800-458-3687

HOSE PACKAGES

Complete the TrunkPump with reinforced PVC suction hoses and PVC lay-flat discharge hoses. Custom lengths available upon request.
HP-2LG: 2" x 20' Suction Hose, 2" x 25' Discharge Hose, CS-2 Strainer w/ Elbow
HP-3PT: 3" x 7' "Trunk" Suction Hose, 3" x 25' Discharge Hose, CS-3 Strainer w/ Elbow
HP-3LG: 3" x 20' Suction Hose, 3" x 25' Discharge Hose, CS-3 Strainer w/ Elbow

CUSTOM STRAINERS

TrunkPump Accessories Keep out unwanted trash and pump in shallow water to 1/2" with our custom Deep Draw Strainer or pump in shallow water to 1/4” (basements, precious turf) with our Top-Hole Strainer.
CS-2: 2" Shallow Water Strainer 1/2" Depth w/ 90° Elbow
CS-3: 3" Shallow Water Strainer 1/2" Depth w/ 90° Elbow
SS-2: 2" Top-Hole Strainer 1/4" Depth w/ 90° Elbow
SS-3: 3" Top-Hole Strainer 1/4" Depth w/ 90° Elbow



NOZZLE PACKAGES

Connect to discharge hose for pressure applications such as washing equipment, fire fighting, irrigation, etc.
NP-2: for 2" pumps, adjustable flow nozzle (2")
NP-3: for 3" pumps, reduced to adj. flow nozzle (1-1/2")

FUEL SAVINGS KIT

The Fuel Savings Kit modifies 3-Point models to pump at full capacity with throttle at 60% to conserve fuel.
FSK-1: Fuel Savings Conversion Kit

s-h alt
TP-HYD2
TP-2HYD 2 HYDRAULICALLY-DRIVEN DEWATERING PUMP (FOR SKID STEERS) - SELF-PRIMING HYDRAULICALLY DRIVEN AND SPECIALTY PUMPS
Mfg. item #: TP-HYD2
TRKTP-HYD2
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$2,450.30

1350
TP-HYD3
TP-3HYD 3 HYDRAULICALLY-DRIVEN DEWATERING PUMP (FOR SKID STEERS) - SELF-PRIMING HYDRAULICALLY DRIVEN AND SPECIALTY PUMPS
Mfg. item #: TP-HYD3
TRKTP-HYD3
lease to own for as little as:$55 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$2,771.30

1350
HP-2LG
2 X 20 SUCTION HOSE, 2X 25 BLUE DISCHARGE HOSE, CS-2 STRAINER W/ ELBOW - BLUE DISCHARGE HOSE RECOMMENDED FOR DEWATERING. RED DISCHARGE HOSE IS RATED UP TO 150 PSI
Mfg. item #: HP-2LG
TRKHP-2LG
FREE shipping when ordered with a machine from this manufacturer.20
$225.00

1350
HP-3PT
3 X 7 TRUNK SUCTION HOSE, 3X 25 BLUE DISCHARGE HOSE, CS-3 STRAINER W/ ELBOW - BLUE DISCHARGE HOSE RECOMMENDED FOR DEWATERING. RED DISCHARGE HOSE IS RATED UP TO 150 PSI
Mfg. item #: HP-3PT
TRKHP-3PT
FREE shipping when ordered with a machine from this manufacturer.20
$279.00

1350
HP-3LG
3 X 20 SUCTION HOSE, 3X 25 BLUE DISCHARGE, CS-3 STRAINER W/ ELBOW - BLUE DISCHARGE HOSE RECOMMENDED FOR DEWATERING. RED DISCHARGE HOSE IS RATED UP TO 150 PSI
Mfg. item #: HP-3LG
TRKHP-3LG
FREE shipping when ordered with a machine from this manufacturer.20
$349.00

1350
CS-2
2 SHALLOW WATER STRAINER 1 DEPTH W/ 90 DEG ELBOW
Mfg. item #: CS-2
TRKCS-2
FREE shipping when ordered with a machine from this manufacturer.20
$45.00

1350
CS-3
3 SHALLOW WATER STRAINER 1/2 DEPTH W/ 90 DEG ELBOW
Mfg. item #: CS-3
TRKCS-3
FREE shipping when ordered with a machine from this manufacturer.20
$59.00

1350
SS-2
2 TOP-HOLE STRAINER 1/4 DEPTH W/ 90 DEG ELBOW
Mfg. item #: SS-2
TRKSS-2
FREE shipping when ordered with a machine from this manufacturer.20
$89.00

1350
SS-3
3 TOP-HOLE STRAINER 1/4 DEPTH W/ 90 DEG ELBOW
Mfg. item #: SS-3
TRKSS-3
FREE shipping when ordered with a machine from this manufacturer.20
$119.00

1350
NP-2
FOR 2 PUMPS ADJUSTABLE FLOW NOZZLE (2)
Mfg. item #: NP-2
TRKNP-2
FREE shipping when ordered with a machine from this manufacturer.20
$119.00

1350
NP-3
FOR 3 PUMPS, REDUCED TO ADJUSTABLE FLOW NOZZLE (1 1/2)
Mfg. item #: NP-3
TRKNP-3
FREE shipping when ordered with a machine from this manufacturer.20
$169.00

1350
FSK-1
Conversion kit for 3pt models
Mfg. item #: FSK-1
TRKFSK-1
FREE shipping when ordered with a machine from this manufacturer.20
$99.00

2886
