Van-Mark Industrial Metal Master 20


/store/cms//102.gif

The first and only portable 20 3/8 inch (51.8cm) throat brake on the market!

/store/cms//59/5adf5_Counter-Flashing.png /store/cms//103.png /store/cms//104.png
Counter Flashing Example Fascia Example Gravel Stop Example
/store/cms//105.png /store/cms//106.png /store/cms//107.png
Rake Edge Example Ridge Cap Example Valley Pan Example
/store/cms//108.gif /store/cms//59/a23a0_Ergo_handle165x109.png /store/cms//109.png
New reinforced Lock Master™ castings are 25% stronger. New Ergonomic Handles Proven Cam Lock System
/store/cms//110.png

/store/cms//59/a23a0_MM-Blurb165x109.png

New Master Stand EZ™ included Cut smaller widths outside the brake for better control

/store/cms//111.png

All Van Mark Brakes, Tools and Accessories are
Manufactured AND Assembled in the USA!

Click Here to Download

Get back on track with the new standard in portable brakes. The new Industrial Metal Master 20 EZ gives you more flexibility to make the complex bends now in demand with metal & commercial roofing jobs. With a throat depth of 20 3/8 inch (51.8cm), the Industrial Metal Master 20 EZ has now become the new standard from which others will be measured.

The first and only portable 20 3/8 inch (51.8cm) throat brake on the market!

Over a quarter century ago, Van Mark introduced the worlds first cam locking system in a portable brake. Through time it has proven to be the strongest and most reliable locking mechanism. Now Van Mark has done it again with our new Industrial Metal Master 20 EZ incorporating the best locking system with the deepest throat in the portable brake industry.

The Industrial Metal Master 20 EZ comes with the latest in computer-aided design and manufacturing to provide the best one-stop-shop for all your job site bending, from W style valley-pan and rake edges, to soffits and roof flashings, including wide hip and ridge cap, HVAC duct and plenum work, to name a few.


Note : The difference between the Contractor & Commercial Grade Van Mark Brakes is that the Commercial Brakes have more C Brackets therefore
making the Commercial Models a more Heavy Duty unit for extreme work environments

Click here to download product flyer

Other sizes Available Please Call for Pricing

Van Mark Brakes Work as Hard as You Do!
The Industrial Metal Master 20 EZ is designed to work with many of the accessories used with other Van Mark brakes, including TrimCutter (seen right).

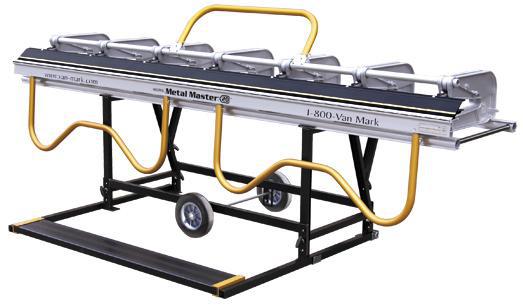

Industrial Metal Master 20 Model IM1055 Shown
TrimCutter Cuts light to heavy sheet materials right on the machine. A unique 4-point track bearing system means this tool does not ride off the brake during cut (the ONLY cutter that can make that claim).

NailHawg Gets the metal scrap, shards, nails and screws in a matter of seconds. Unique toe/hand release puts debris where you want it resulting in a worry-free clean-up job after job.


Trim-A-Slitter S24C (shown), comes with 2 sets of cutting knives and has optional perforating dies available for making custom ventilation components right on the job. Each set provides 3.625 inches of net free area of ventilation per linear foot per pass. Motor Kits are also available for automating your slitting duties, saving both time and money.

Trim-A-Gutter This innovative tool lets you market, sell and install gutter-cover under your own name. Form gutter-cover from trim coil or from gutter-coil to fit virtually any profile. Optional mounting brackets are extruded from aluminum and can be installed without dropping existing gutter. Note: Marketing tools available on DVD or CD-Rom.





From its portable, lightweight design, to its heavy-bending capability and superior durability, the Industrial Metal Master 20 EZ answers the demand for quality and flexibility.

  • New reinforced Lock Master castings are 25 percent stronger.
  • Deepest working pocket available at 20 3/8 inch.
  • Low profile extended platform is 9 inch longer.
  • Center-Weighted wheels spin on a dime.
  • Large Heavy-Duty Ball Bearing Wheels.
  • Ergonomic heavy-duty bending handles.

Capacities
Model
Length
C
Lbs (Kg)

Material
Recommended
IM855 8'6" (2.6m) 5 211 (95.7kg)
Aluminum
.050

IM1055*
10'6" (3.2m)
7
259 (117.5kg)
Galv. Steel
20 ga.
IM1255**
12'6" (3.8m)
9
315 (142.9kg)
Painted Steel Grade D
24 ga.

Copper
36 oz.

Zinc Alloy
.050
All weights include Master Standââ€Å¾Â¢

Stainless Steel
24 ga.
*Includes dual bending handles.
**Includes dual bending and locking handles.
  Note: The above capacities are based on standard metal properties. Please contact our factory for capacities on your specific material.
Basic Operation
Take a few moments to familiarize yourself with this tool. When bending metal, we recommend making practice bends with scrap material until you are satisfied with results.
After inserting material into brake, rotate handle to clamp in place.
Bend upward to desired angle.
Rotate handle toward you to unclamp material. Remove material from brake.
Van Mark Industrial Brakes - Metal Master 20
IM855 8ft  x  20in   Throat Depth - Metal Master INDUSTRIAL GRADE (CTR) ** Includes Free Metal Master Stand
IM1055 10ft  x  20in   Throat Depth - Metal Master INDUSTRIAL GRADE (CTR) ** Includes Free Metal Master Stand
IM1255 12ft  x  20in   Throat Depth - Metal Master INDUSTRIAL GRADE (CTR) ** Includes Free Metal Master Stand

Swenson Shears

Click Here To See Our Swenson Shears

Van Mark Industrial Brakes - Metal Master 20
3978 Multi Gauges (Sold as a pair 2x)
CD24 COIL DISPENSER
3017 TRIM CUTTER
3015 TRIM FORMER
3016 QUICK SCORE
3025 QUICK SCORE Dies
3035 Wheel Kit

Swenson Shears

Click Here To See Our Swenson Shears


IM855
Mfg. item #: IM855
VANIM855
lease to own for as little as:$61 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$3,038.93

97
IM1055
Mfg. item #: IM1055
VANIM1055
lease to own for as little as:$68 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$3,401.13

97
IM1255
Mfg. item #: IM1255
VANIM1255
lease to own for as little as:$75 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$3,763.34

97
3978
Mfg. item #: 3978
VAN3978
FREE shipping when ordered with a machine from this manufacturer.20
$69.95

97
CD24
Mfg. item #: CD24
VANCD24
FREE shipping when ordered with a machine from this manufacturer.20
$435.00

97
3017
Mfg. item #: 3017
VAN3017
FREE shipping when ordered with a machine from this manufacturer.20
$415.00

97
3015
Mfg. item #: 3015
VAN3015
FREE shipping when ordered with a machine from this manufacturer.20
$415.00

97   1
3016
Mfg. item #: 3016
VAN3016
FREE shipping when ordered with a machine from this manufacturer.20
$439.95

97
3025
Mfg. item #: 3025
VAN3025
FREE shipping when ordered with a machine from this manufacturer.20
$84.95

97
3035
Mfg. item #: 3035
VAN3035
FREE shipping when ordered with a machine from this manufacturer.20
$84.95

97
