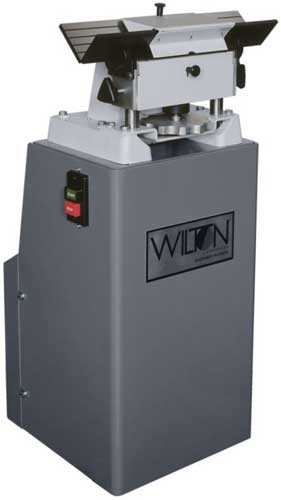

Wilton 4505 Chamfering Machine

  • Precision chamfer, bevel or deburr edges easily
  • Chamfer angles from 15° to 45°
  • Easily adjustable depth of cut
  • The milling cutter head has 8 easy to change inserts, and combined with an adjustable depth of cut and angle of cut capacity, can deliver accurate finishes on a repetitive basis
  • 3" cutter head with 8 replaceable inserts
  • Cast iron V-table
  • Heavy-duty, one piece steel stand
  • Wilton's Chamfering Machine has been designed to offer vast performance capabilities. Easily adjustable, the machine manages jobs such as: chamfering, beveling, and deburring on flats and squares of ferrous and non-ferrous materials.
Part Number 4505
Bevel Angle 15°45°
Number of Inserts for Cutter Head 3" milling cutter head with 8 replaceable carbide inserts
Motor 4505 1-1/2HP, 115/230V, 1Ph, Prewired 115V
Overall Dimensions 16 x 19 x 39
Height 50 inch
Width 22 inch
Length 21.5 inch
Net Weight 225 pound
