Sure Speed 2 Electric Motor Vibrator | 994 Electric Motor Vibrator | 995 Electric Motor Vibrator |
ELECTRIC MOTORS ONLY - 115V | |
---|---|
WSS2G1Q | WSS2G1Q 3HP,115V - CONSTANT SPEED, QUICK DISCONNECT |
WSS2G1T | WSS2G1T 3HP,115V - CONSTANT SPEED, THREADED CONNECT |
W995G1Q | 995 3HP,115V, QUICK DISCONNECT |
W995G1T | 995 3HP,115V, THREADED CONNECT |
ELECTRIC MOTORS ONLY - 230V | |
WSS2G2Q | WSS2G2Q 3HP,230V - CONSTANT SPEED, QUICK DISCONNECT |
WSS2G2T | WSS2G2T 3HP,230V - CONSTANT SPEED, THREADED CONNECT |
W995G2Q | 995 3HP,230V, QUICK DISCONNECT |
W995G2T | 995 3HP,230V, THREADED CONNECT |
995 COMPLETE UNIT PRICING | |
W995G1T-100-7 | 995 Motor, Threaded, 3 HP 115v motor, 1" head, 7ft shaft |
W995G1T-100-10 | 995 Motor, Threaded, 3 HP 115v motor, 1" head, 10ft shaft |
W995G1T-100-14 | 995 Motor, Threaded, 3 HP 115v motor, 1" head, 14ft shaft |
W995G1T-138-7 | 995 Motor, Threaded, 3 HP 115v motor, 1-3/8" head, 7ft shaft |
W995G1T-138-10 | 995 Motor, Threaded, 3 HP 115v motor, 1-3/8" head, 10ft shaft |
W995G1T-138-14 | 995 Motor, Threaded, 3 HP 115v motor, 1-3/8" head, 14ft shaft |
W995G1T-175-7 | 995 Motor, Threaded, 3 HP 115v motor, 1-3/4" head, 7ft shaft |
W995G1T-175-10 | 995 Motor, Threaded, 3 HP 115v motor, 1-3/4" head, 10ft shaft |
W995G1T-175-14 | 995 Motor, Threaded, 3 HP 115v motor, 1-3/4" head, 14ft shaft |
W995G1T-200-7 | 995 Motor, Threaded, 3 HP 115v motor, 2" head, 7ft shaft |
W995G1T-200-10 | 995 Motor, Threaded, 3 HP 115v motor, 2" head, 10ft shaft |
W995G1T-200-14 | 995 Motor, Threaded, 3 HP 115v motor, 2" head, 14ft shaft |
W995G1Q-100-7 | 995 Motor, QD, 3 HP 115v motor, 1" head, 7ft shaft |
W995G1Q-100-10 | 995 Motor, QD, 3 HP 115v motor, 1" head, 10ft shaft |
W995G1Q-100-14 | 995 Motor, QD, 3 HP 115v motor, 1" head, 14ft shaft |
W995G1Q-138-7 | 995 Motor, QD, 3 HP 115v motor, 1-3/8" head, 7ft shaft |
W995G1Q-138-10 | 995 Motor, QD, 3 HP 115v motor, 1-3/8" head, 10ft shaft |
W995G1Q-138-14 | 995 Motor, QD, 3 HP 115v motor, 1-3/8" head, 14ft shaft |
W995G1Q-175-7 | 995 Motor, QD, 3 HP 115v motor, 1-3/4" head, 7ft shaft |
W995G1Q-175-10 | 995 Motor, QD, 3 HP 115v motor, 1-3/4" head, 10ft shaft |
W995G1Q-175-14 | 995 Electric Concrete Vibrator QD, 3 HP 115v motor, 1-3/4" head, 14ft shaft |
W995G1Q-200-7 | 995 Electric Concrete Vibrator QD, 3 HP 115v motor, 2" head, 7ft shaft |
W995G1Q-200-10 | 995 Electric Concrete Vibrator QD, 3 HP 115v motor, 2" head, 10ft shaft |
W995G1Q-200-14 | 995 Electric Concrete Vibrator QD, 3 HP 115v motor, 2" head, 14ft shaft |
SURE SPEED 2.0 COMPLETE UNIT PRICING | |
WSS2G1T-100-7 | Sure Speed 2.0 Motor, Threaded, 3 HP 115v motor, 1" head, 7ft shaft |
WSS2G1T-100-10 | Sure Speed 2.0 Motor, Threaded, 3 HP 115v motor, 1" head, 10ft shaft |
WSS2G1T-100-14 | Sure Speed 2.0 Motor, Threaded, 3 HP 115v motor, 1" head, 14ft shaft |
WSS2G1T-138-7 | Sure Speed 2.0 Motor, Threaded, 3 HP 115v motor, 1-3/8" head, 7ft shaft |
WSS2G1T-138-10 | Sure Speed 2.0 Motor, Threaded, 3 HP 115v motor, 1-3/8" head, 10ft shaft |
WSS2G1T-138-14 | Sure Speed 2.0 Motor, Threaded, 3 HP 115v motor, 1-3/8" head, 14ft shaft |
WSS2G1T-175-7 | Sure Speed 2.0 Motor, Threaded, 3 HP 115v motor, 1-3/4" head, 7ft shaft |
WSS2G1T-175-10 | Sure Speed 2.0 Motor, Threaded, 3 HP 115v motor, 1-3/4" head, 10ft shaft |
WSS2G1T-175-14 | Sure Speed 2.0 Motor, Threaded, 3 HP 115v motor, 1-3/4" head, 14ft shaft |
WSS2G1T-200-7 | Sure Speed 2.0 Motor, Threaded, 3 HP 115v motor, 2" head, 7ft shaft |
WSS2G1T-200-10 | Sure Speed 2.0 Motor, Threaded, 3 HP 115v motor, 2" head, 10ft shaft |
WSS2G1T-200-14 | Sure Speed 2.0 Motor, Threaded, 3 HP 115v motor, 2" head, 14ft shaft |
WSS2G1Q-100-7 | Sure Speed 2.0 Motor, QD, 3 HP 115v motor, 1" head, 7ft shaft |
WSS2G1Q-100-10 | Sure Speed 2.0 Motor, QD, 3 HP 115v motor, 1" head, 10ft shaft |
WSS2G1Q-100-14 | Sure Speed 2.0 Motor, QD, 3 HP 115v motor, 1" head, 14ft shaft |
WSS2G1Q-138-7 | Sure Speed 2.0 Motor, QD, 3 HP 115v motor, 1-3/8" head, 7ft shaft |
WSS2G1Q-138-10 | Sure Speed 2.0 Motor, QD, 3 HP 115v motor, 1-3/8" head, 10ft shaft |
WSS2G1Q-138-14 | Sure Speed 2.0 Motor, QD, 3 HP 115v motor, 1-3/8" head, 14ft shaft |
WSS2G1Q-175-7 | Sure Speed 2.0 Motor, QD, 3 HP 115v motor, 1-3/4" head, 7ft shaft |
WSS2G1Q-175-10 | Sure Speed 2.0 Motor, QD, 3 HP 115v motor, 1-3/4" head, 10ft shaft |
WSS2G1Q-175-14 | Sure Speed 2.0 Motor, QD, 3 HP 115v motor, 1-3/4" head, 14ft shaft |
WSS2G1Q-200-7 | Sure Speed 2.0 Motor, QD, 3 HP 115v motor, 2" head, 7ft shaft |
WSS2G1Q-200-10 | Sure Speed 2.0 Motor, QD, 3 HP 115v motor, 2" head, 10ft shaft |
WSS2G1Q-200-14 | Sure Speed 2.0 Motor, QD, 3 HP 115v motor, 2" head, 14ft shaft |
STANDARD VIBRATOR SHAFTS | |
---|---|
W988-902 | 2' CORE and CASING for 13/16 inch and 1 inch Heads |
W988-905 | 5' CORE and CASING for 13/16 inch and 1 inch Heads |
W988-907 | 7' CORE and CASING for 13/16 inch and 1 inch Heads |
W988-910 | 10' CORE and CASING for 13/16 inch and 1 inch Heads |
W988-914 | 14' CORE and CASING for 13/16 inch and 1 inch Heads |
W988-920 | 20' CORE and CASING for 13/16 inch and 1 inch Heads |
W989-502 | 2' CORE and CASING for 1-3/8 inch and Larger Heads |
W989-505 | 5' CORE and CASING for 1-3/8 inch and Larger Heads |
W989-507 | 7' CORE and CASING for 1-3/8 inch and Larger Heads |
W989-510 | 10' CORE and CASING for 1-3/8 inch and Larger Heads |
W989-514 | 14' CORE and CASING for 1-3/8 inch and Larger Heads |
W989-520 | 20' CORE and CASING for 1-3/8 inch and Larger Heads |
W989-530 | 30' CORE and CASING for 1-3/8 inch |
VIBRATOR HEADS | |
W872-513 | 2 1/2 inch Round Head, Polyurethane Coated |
W877-512 | 2 1/2 inch Round Head |
W877-520 | 13/16 inch Square Head |
W877-526 | 1 inch Square Head |
W877-551 | 1-1/8 inch Low Energy Round Head |
W878-533 | 1-3/8 inch Square Head |
W878-534 | 1-3/4 inch Square Head, Polyurethane Coated |
W878-540 | 1-3/4 inch Square Head |
W878-563 | 2 inch Square Head |
W878-566 | 2-3/8 inch Square Head, Polyurethane Coated |
W878-568 | 2-1/4 inch Square Head |
MISCELLANEOUS | |
W344-740 | SHAFT CONNECTOR |
W423-500 | MALE QD ASSEMBLY - SURE SPEED and 994 MOTORS) |
W655-140 | AMSOIL HEAD OIL, 1 QUART; 514-O |
W655-143 | AMSOIL SHAFT GREASE, 14OZ; 514-B |
Click here to download brochure

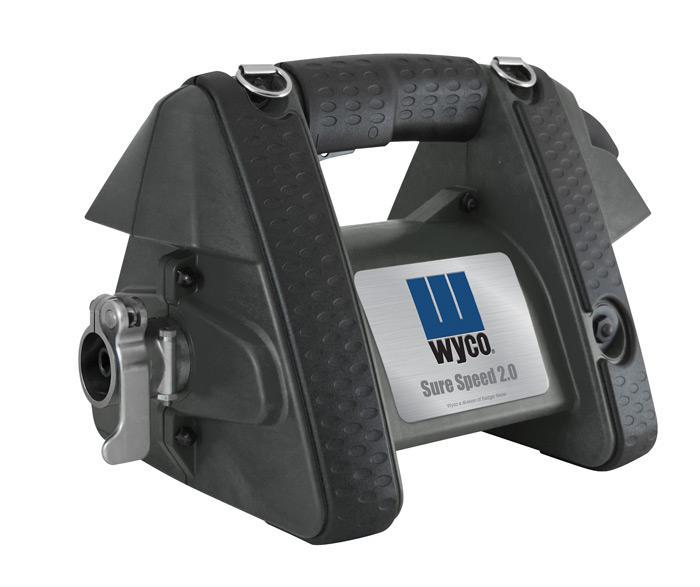

Sure Speed Electric Vibrator
The computer controlled Sure Speed 2.0 motor automatically maintains vibrator head speed in varying conditions and requires less power consumption by using only the energy necessary for job completion. The Sure Speed 2.0 produces uniform and repeatable vibration-every time. The user only needs one motor to power any shaft length and head size. Its lightweight, ergonomic design minimizes labor hours and fatigue and a soft-start brush design provides increased brush life.
Benefits
Features

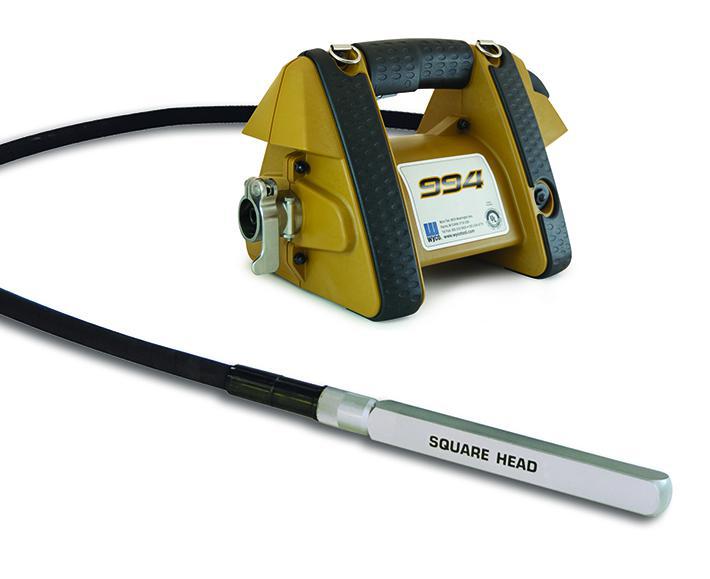

994 Electric Motor Vibrator
The 994 electric motor vibrator builds on the legacy of the rugged and reliable 992A and 993. The 994 was designed to incorporate the latest features from our Sure Speed line, including a rugged molded motor enclosure, durable electric switch and easy-to-service motor brushes.
With all the features you expect on the job site, the 994 is ready to tackle your toughest consolidation jobs. The 994 meets the highest safety standards in the industry â UL60745-2-12 Electrical Certification, cUL, CE Listed, CSA Certified to ensure job site safety as well as OSHA 29 CFR 1910.95 compliance for noise levels
Features:

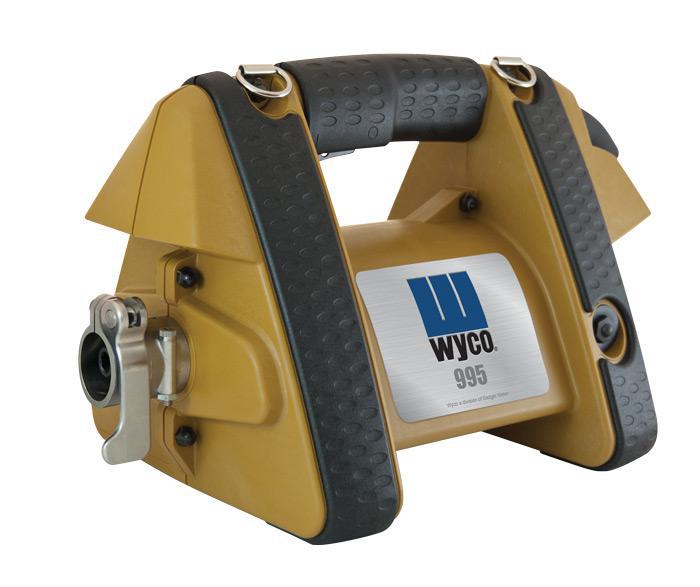

995 Electric Motor Vibrator
The 995 electric motor vibrator builds on the legacy of the rugged and reliable 994. The more durable 995 is designed to incorporate the latest features from our Sure Speed line, including a rugged molded motor enclosure, durable electric switch and easy-to-service motor brushes.
Benefits
Features
The Answer is Simple
Concrete has infinite variables in which affect a mix and the defects that surface once the forms are removed. The Sure Speed eliminates one of these variables by keeping the vibrator running at the same speed, regardless of load, shaft or head size. Its innovative, its Sure Speed.
Since the original design of the flex shaft vibrator 50 years ago, the product has had little dynamic changes to overcome speed compatibility issues with todays mix design consistencies. Over the past 10 years concrete mixes contain larger amounts of plasticizers to enable pumping operations and flow around high rebar concentrations. Applying high vibrator speed found in the industry today to these mixes that are prone to bleeding usually results in form face surface defects.
Sure Speeds unique design controls vibrator speed, lowers the amount of concrete bleeding, and reduces harmful loss of air entrainment and concrete segregation due to over vibrating. Sure Speed allows the operator to be in control of the process by eliminating the speed variations inherent with existing vibrators affected by motor size, head size, and shaft length.
-Ryan Shirk, Production Manager, Coreslab Structures Inc.
We used the newly developed Sure Speed concrete vibrator on our planter walls and approach slabs. During the process we noticed a signifigant reduction or air pockets and bug holes in our planter walls. This left a better finished product and less work for the point and patching. We also found on our approach slabs we had faster consolidation and less fatigue on our people due to the lightweight design.-Blake Anderson, Superintendant, PCL Civil Southeast
