ChemGrout CG-2C4A Grout Pump

soil & rock, void filling, waterproofing, anchor, cable, rock bolts, encasements, marine/underwater, well casing, abondon shafts/holes, post tensioning, machine base, underlayments, undersealing, slab raising & brige rehab.
Model CG-2C4A

ChemGrout CG2C4

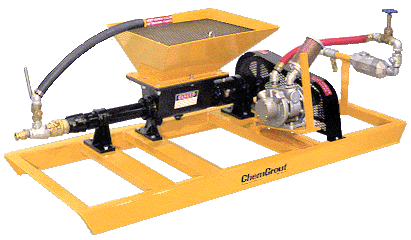

The ChemGrout CG2C4 is a 2 Stage, Size 4, Open-Throat Progressive Cavity Grout Pump series includes both skid and trailer mounted grouting pumps.  The progressive cavity pump is a perfect solution when pumping viscous, abrasive or solid laden materials.  These units are designed to pump neat cement, bentonite, cement/bentonite, cement/sand, non-shrink, self leveling and most packaged grout mixes.  These progressive cavity grout pump systems feature various sized holding hoppers, output volumes from 1 GPM (3.8 LPM) to 12 GPM (45 LPM) and output pressures from 174 PSI (12 BAR) up to 522 PSI (36 BAR).  These grout pumps are positive displacement, progressing cavity, rotor-stator type pumps.  All these grout pumps are designed with variable speed controls to give you complete comtrol over the grout flow.  The operator controls are centrally located for efficient, safe production.  All components are easily accessible for operating, cleaning, and maintenance.  The trailer mounted units are road and job site ready equipped with leaf springs, lights and a working platform.

Applications Applications include: soil & rock, void filling, waterproofing, anchor, cable, rock bolts, encasements, marine/underwater, well casing, abondon shafts/holes, spraying topcoats, machine base, underlayments, slabjacking, slab raising & bridge rehabilitation, cable stays, post tensioning, slurry cutoff  walls, foundation repair, anchors, roadway repair, dowel rod grouting,  concrete repair, masonry repair, floor restoration, slab undersealing, mudjacking, soil stabilization, slurry trench, pressure grouting, window grouting, building construction, tiebacks, self-leveling underlayment, floor topping, and machine bases

Specifications
Model Hopper Volume Max Output Max Pressure
CG-2C4 10-40 Gallons
(38-151 Liters)
12 GPM
(45 LPM)
174 PSI
(12.0 BAR)
CG-3C4 10-40 Gallons
(38-151 Liters)
12 GPM
(45 LPM)
261 PSI
(18.0 BAR)
CG-6C3 10-40 Gallons
(38-151 Liters)
8 GPM
(30 LPM)
522 PSI
(36.0 BAR)
There is no further information.
There are no listed accessories.
Call for price. CHECG2C4
Call for price. CHECG2C4-A
CG2C4-E
Mfg. item #: CG2C4-E
CHECG2C4-E
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

36
CG2C4-GHES
Mfg. item #: CG2C4-GHES
CHECG2C4-GHES
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

36
Call for price. CHECG2C4-H
Call for price. CHECG2C6
CG2C6-AIR
Mfg. item #: CG2C6-AIR
CHECG2C6-AIR
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

36
CG2C6-E
Mfg. item #: CG2C6-E
CHECG2C6-E
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

36
CG2C6-EHT
Mfg. item #: CG2C6-EHT
CHECG2C6-EHT
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

36
CG2C6-GHES
Mfg. item #: CG2C6-GHES
CHECG2C6-GHES
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

36
CG2C6-HYD
Mfg. item #: CG2C6-HYD
CHECG2C6-HYD
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

36
Call for price. CHECG3L6AP
Call for price. CHECG3L6A-AIR
Call for price. CHECG3L6A-E
Call for price. CHECG3L6A-EHT
Call for price. CHECG3L6A-GHES
Call for price. CHECG3L6A-HYD
EGM
Mfg. item #: EGM
CHEEGM
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

36
