DAKE Metal and Wood Vertical Bandsaw

 Model 14CX Metal and Wood Vertical Bandsaw 14 inch Throat  Model VDL-18 Metal and Wood Vertical Bandsaw 18 inch Throat
 Model 14CX Metal and Wood Vertical Bandsaw   14 inch Throat  Model VDL-18 Metal and Wood Vertical Bandsaw  18 inch Throat



Click here to download manual

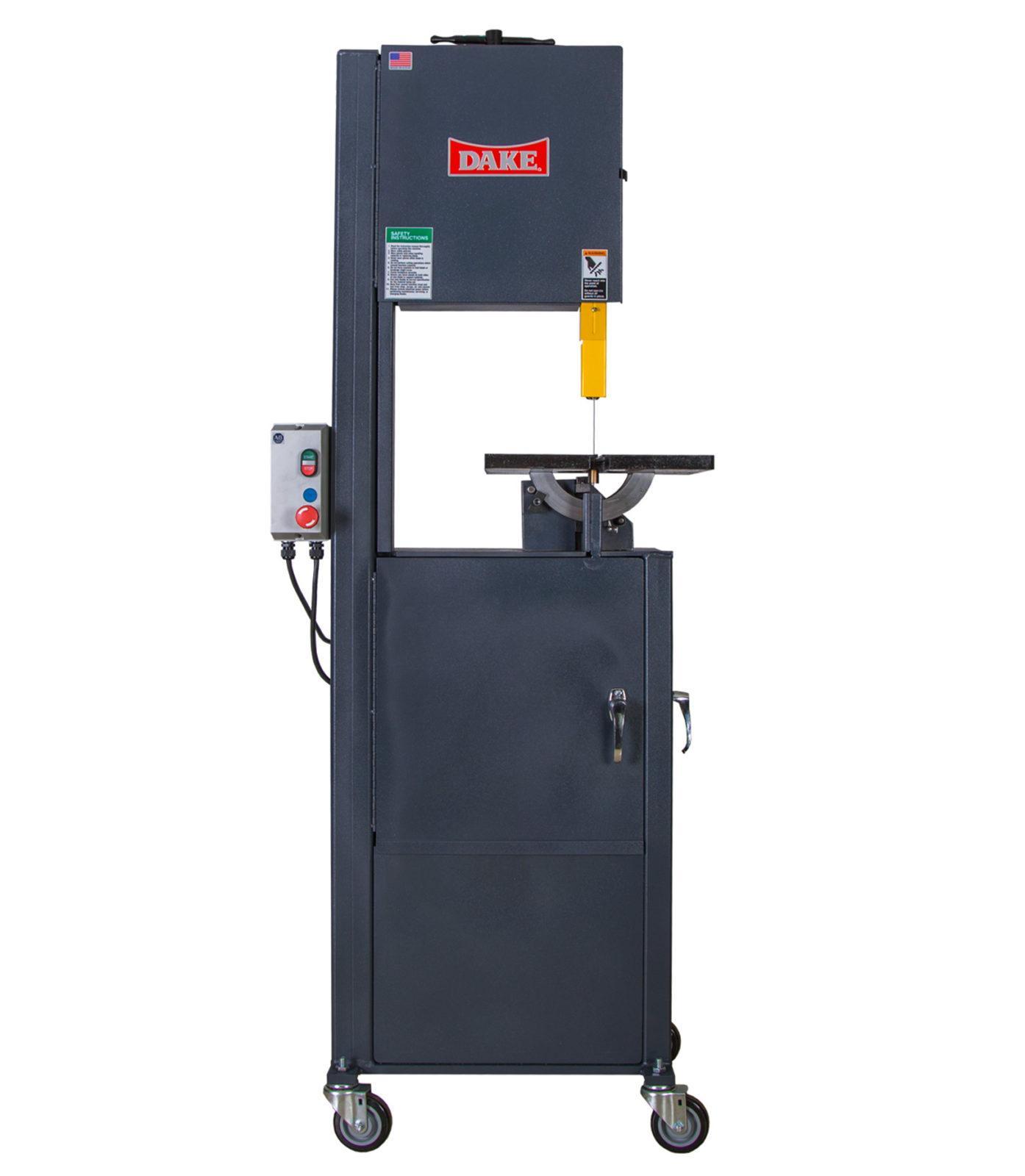

Model 14CX Metal and Wood Vertical Bandsaw   14 inch Throat

Our line of industrial strength, metalworking vertical bandsaws are engineered for long-lasting performance. Offering a model for every job and budget. You are sure to find a bandsaw that meets your shop's needs. A robust frame construction reduces wobble and vibration assuring precise cuts with fewer errors. The Dake vertical bandsaws provide easy operation with years of trouble-free service.

Features:

  • Disc Brake with Micro Switch
  • 110V Outlet on Back for Optional Light
  • Window for Safe Blade Tensioning
  • Window for Safe Blade Tracking
  • Blade Tension Guide
  • Worm Gear and Pinion Upper Guide
  • 10 Point Ceramic Guides
  • Electronic Variable Speed
  • Low Blade Speed: 60-1600 fmp
  • High Speed Blade: 160-4400 fpm
  • Dynamically Balanced Cast Iron Wheels
  • Urethane Single Piece Snap-on Tire
  • Cast Table Size: 21.5 inch X 16 inch
  • Table Tilt: 7 deg, +45 deg
  • Quick-Release Blade Tension
  • Hi-Low Anodized Aluminum Fence with Flip Away Stop
  • Dust Ports: 4 inch X 2 inch
  • One Bi-metal, Metal Cutting Blade Included



Click here to download manual

Model VDL-18 Metal and Wood Vertical Bandsaw  18 inch Throat

This versatile saw has the ability to cut multiple materials including metal and wood. It is a great affordable saw that would be a solid addition in any shop.

Warning: This product contains Nickel, a chemical known to the State of California to cause cancer. For more information go to

Features:

  • Disc-brake with micro switch
  • 110V Outlet for optional work light
  • Window for safe blade tracking and tensioning
  • Blade tension guide
  • 10 point ceramic guide
  • Mechanical variable speed drive
  • Tilting table
  • Quick release blade tension
  • Large aluminum fence with flip away stop
  • Exhaust Ports





Specifications
Model Number 14CX VDL-18
Part Number MB14CX 987018
Horsepower 1.75 HP 1.75
Voltage Available 120-volt Plug and Play 110V
Blade width 1/8 - 3/4 inch 1/2 inch
Blade length 115 inch 143 3/4 inch minimum, 145 3/4 inch maximum
Blade speed Variable Speeds Low: 60-1600 fpm, High: 160-4400 fpm Low: 100-290 fpm, High: 1200-3500 fpm
Miter Slot 3/8 inch x 3/4 inch 3/8 inch x 3/4 inch
Band wheels number 2 2
Band wheels size 14 inch 18 1/2 inch
Throat size (band to column) 14 inch 18 inch
Maximum work height 12 inch 16 inch
Worktable dimensions 21.5 inch x 16 inch 20 inch x 26 inch
Worktable tilt 7 inch Left / 45 inch Right 6 inch Left / 45 inch Right
Worktable height 38 inch 38 inch
Machine height 70 1/2 inch 77-3/4 inch
Machine floor space 33 inch x 20.5 inch 38 inch x 36 inch
Weight 286 lbs 500 lbs



No accessories listed

MB14CX
MODEL: 14CX , 14 X 12 VARIABLE SPEED MULTI-PURPOSE VERTICAL BANDSAW 120V - 1PH
Mfg. item #: MB14CX
DAKEMB14CX
Call for freight quote on this item or we will confirm freight charges before shipping.1
NEW ITEM
$2,281.13

36577
987018
MODEL: VDL-18 , 18 X 16 MULTI-PURPOSE VERTICAL BANDSAW 120V - 1PH
Mfg. item #: 987018
DAKE987018
lease to own for as little as:$73 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$3,656.21

36577
