Heavy-Duty 3/8 inch Steel Construction
-
Cylinder with 2 inch Ram and 6-1/4 inch Stroke
-
Rolling Cylinder for Maximum Versatility
-
Working Area of 10-1/2 x 20 inch
-
Easy-to-Use Hand/Jog Controls
-
Quick Disconnect Hoses
-
Hydraulic-Assist Table Height Adjustment
|
Our 20 Ton Shop Press may be small but its no lightweight. Smooth and precise, heavy-duty and versatile, the unique open side design allows for material to

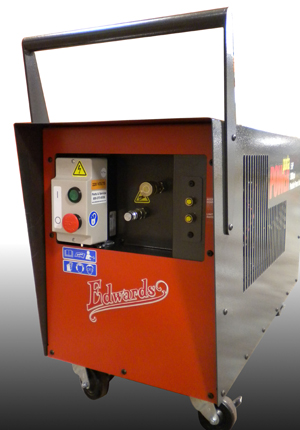

pass through. Power it up with an Edwards Ironworker with factory installed Hydraulic Accessory Pack or an Edwards Porta Power 5HP, 2750 psi portable power unit.
Check out our 12 inch Press Brake Tooling, bump-die tooling, the 6-Piece Press Tooling Set and the Press Brake Back Gauge.
|
40 Ton Full Size at Half the Price
|
|
-
Heavy-Duty 1/2 inch Steel Construction
-
Cylinder with 4 inch Ram and 12-1/4 inch Stroke
-
Rolling Cylinder for Maximum Versatility
-
Working Area of 38 x 40-1/2 inch
-
Easy-to-Use Hand/Jog Controls
-
Quick-Disconnect Hoses
-
Hydraulic-Assist Table Height Adjustment
|
Our full-sized 40 Ton Shop Press is rugged and economical. Smooth and precise, heavy-duty and versatile, the unique open side design allows for material to
pass through. Power it up with an Edwards Ironworker with factory installed Hydraulic Accessory Pack or an Edwards Porta Power 5HP, 2750psi portable power unit.
With the Press Brake Tooling, your Shop Press easily becomes a brake. Check out our bump-die tooling, the 6-Piece Press Tooling Set and the Press Brake Back
Gauge.
|
60 Ton Shop Press
|
|
Press the Limit
-
1/2 inch and 3/4 inch Heavy-Duty Steel Construction
-
Easy-to-Use Foot Pedal
-
Versatile Rolling Cylinder
-
Working Area of 42 inch x 39 inch
-
Pressure Gauge
-
Quick-Disconnect Hoses
-
Hydraulic-Assist Table Height Adjustment
-
2 V-Blocks Included
|
Our 60 Ton Shop Press solves a variety of demands to improve users productivity. Smooth and precise,
heavy-duty and versatile, our unique, open side design allows for material to pass through. Power it up with an Edwards Ironworker with factory installed Hydraulic Accessory Pack or an
Edwards Porta Power 5 HP, 3000 PSI portable power unit. Also available with PLC (Programmable Logic Control) to further increase efficiency.
Improve your productivity with PLC on repeatable actions. Provides adjustable up/down stroke control saving time. Adjustable PSI allows the user to set the pressure and cycle the press with
an automatic return. Magnetic base allows easy mounting of the PLC anywhere on the machine.
With the Press Brake Tooling, your Shop Press easily becomes a brake. Check out our bump-die tooling, the 6-Piece Press Tooling Set and the Press Brake Back Gauge.
|
60 Ton Shop Press General Specifications Edwards Ironworker / Porta-Power
|
|
5 HP 3ph 208 V or 230 V
1725 RPM 14 A
|
Optional Motors
|
5 HP 3ph 460 V
1725 RPM 7 A
5 HP 1ph 230 V
1725 RPM 23 A
|
|
3-1/2 GPM - 1 Stage
|
|
2750 PSI
|
|
7 Gallons
|
|
60 Tons
|
|
4 inch Ram
|
|
12-1/4 inch
|
|
84.3 inch
|
|
54 inch
|
|
48 inch
|
|
1,874 lb
|
|
110 Ton Shop Press
|
|
Our Most Powerful Press
-
Heavy-Duty 3/4 inch Steel Construction
-
Easy-to-Use Foot/Jog Controls
-
Versatile Rolling Cylinder
-
Working Area of 48 inch x 37-1/2 inch
-
Pressure Gauge
-
Quick-Disconnect Hoses
-
Hydraulic-Assist Table Height Adjustment
-
2 V-Blocks Included
|
Our 110 Ton Shop Press has the capacity to meet your shops needs. Smooth and precise, heavy-duty and
versatile, our unique, open side design allows for material to pass through. Power it up with an Edwards Ironworker with factory installed Hydraulic Accessory Pack or an Edwards Porta Power 5
HP, 3000 PSI portable power unit. Also available with PLC (Programmable Logic Control) to further increase efficiency.
Improve your productivity with PLC on repeatable actions. Provides adjustable up/down stroke control saving time. Adjustable PSI allows the user to set the pressure and cycle the press with
an automatic return. Magnetic base allows easy mounting of the PLC anywhere on the machine.
With the Press Brake Tooling, your Shop Press easily becomes a brake. Check out our bump-die tooling, the 6-Piece Press Tooling Set and the Press Brake Back Gauge.
|
110 Ton Shop Press General Specifications Edwards Ironworker / Porta-Power
|
|
5 HP 3~ 208 V or 230 V
1725 RPM 14 A
|
|
5 HP 3~ 460 V
1725 RPM 7 A
5 HP 1~ 230 V
1725 RPM 23 A
|
|
3-1/2 GPM - 1 Stage
|
|
2750 PSI
|
|
7 Gallons
|
|
110 Tons
|
|
4 inch Ram
|
|
12-1/4 inch
|
|
85.4 inch
|
|
64 inch
|
|
48 inch
|
|
2,690 lb
|
|
