Geared Trolleys


Geared Trolleys with Hand Chain

s-h alt s-h alt

At a Glance
Details
Specifications
More Information
Accessories

Features

Rugged steel geared trolleys feature lifetime lubricated, double sealed ball bearings
For positive control and precise positioning along H or I-beam
Use on straight or curved track
Adjustable to fit various size wide flange and I-beams
Extra lifts available
Built-in bumper guards
Can be used with H and I-beams
Proof tested and certified

There are no further details.

Specifications
Stock No.	Capacity	CapÕy (ton)	Chain Length (ft)	Beam Flange Width (in)	Beam Height (ft)	Min Radius Curve (in)	Net Wt (lbs)
252205	1/2 GBT	1/2	8	3 - 6	4-19	30	22
252210	1 GBT	1	10	3-1/4 - 8	4-19	39	39
252220	2 GBT	2	10	31/2- - 8	4-19	43	57
252230	3 GBT	3	10	5 - 8	5-19	51	90
252250	5 GBT	5	10	5 - 8	5-19	55	121
252260	10 GBT	10	10	6 - 8	6-19	67	210

s-h alt

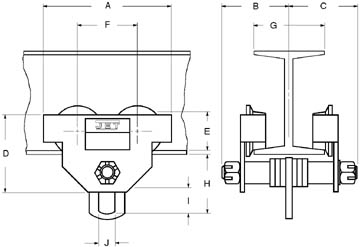

Model	A	B	C	D	E	F	G	H	I	J
1/2 GBT	8-3/8	4-7/8	8-1/8	5-1/8	2-1/4	4	3-1/4 - 5-1/2	4	1-1/2	15/16
1 GBT	9-15/16	5-1/4	8-1/4	6-1/8	3	4-5/8	4 - 5 1/2	4-1/2	2	1-3/16
2 GBT	11-7/8	5-7/8	8-1/2	6-11/16	3-1/2	5-3/8	4 - 6	5-1/4	2-3/8	1-7/16
3 GBT	13-5/8	6-1/4	9-11/16	8-1/2	4-1/2	6-3/16	4 - 6	6-1/2	3	1-3/4
5 GBT	15-1/16	7-1/4	10-11/16	10	4-13/16	6-3/4	5 - 6 7/8	7-7/8	3-3/4	2-3/8
10 GBT	17-15/16	7-15/16	11-7/8	11-5/8	6	7-7/8	6 - 6 7/8	10-1/8	4-3/4	3-1/4

There is no further information.

There are no listed accessories.

Compare

3-GT, 3 Ton, Fits 5" - 8" Wide Beam

Mfg. item #: 252230

WMH252230

Southern Tool Limited Time Special - FREE FREIGHT On this Item.⁷⁵

$360.40

5269

Freight policies for items on this page:

75: Southern Tool Limited Time Special - FREE FREIGHT On this Item.

Free freight offers apply only to deliveries to the lower 48 states by truck freight or ground UPS. Liftgate and non-commercial delivery charges may be extra.
