JET Brakes

JET Brakes

JET Brakes are well-built, easy to use, and designed to fit in any shop. With both floor model brakes, and bench models, JET gives you the flexibility to put your brakes anywhere. Innovations like foot clamps and ceramic coated fingers make JET brakes the best in the business

Foot Clamp Bench Box and Pan
752125 BPF-1240, 40 X 12 GAUGE BOX & PAN BRAKE WITH FOOT CLAMP 752127 BPF-1450, 50 X 14 GAUGE BOX & PAN BRAKE WITH FOOT CLAMP 752130 foot clamp 754105 BPB-1648, 48 X 16 GAUGE BENCH MODEL BOX & PAN BRAKE
Shown with optional stand
752125
40 in x 12 Ga 		752127
50 in x 14 Ga 		752130
50 in x 16 Ga 		754105
50 in x 16 Ga
Floor Model
754100 BP-1248H, 48 X 12 GAUGE FLOOR MODEL BOX AND PAN BRAKE 754125 box and pan brake 754130 box and pan brake 754115 BPF-16100 , 100 X 16 GAUGE FLOOR BOX & PAN BRAKE
754100
48 in x 12 Ga 		754125
72 in x 12 Ga 		754130
72 in x 16 Ga 		754115
100 in x 16 Ga



Models and Accessories
752125 BPF-1240, 40 X 12 GAUGE BOX and PAN BRAKE WITH FOOT CLAMP
752127 BPF-1450, 50 X 14 GAUGE BOX and PAN BRAKE WITH FOOT CLAMP
752130 PBF-1650D 50 X 16 GAUGE DUAL SIDED BOX and PAN BRAKE WITH FOOT CLAMP
754105 BPB-1648, 48 X 16 GAUGE BENCH MODEL BOX and PAN BRAKE
754110 BPF-1248H, 48 X 12 GAUGE FLOOR MODEL BOX AND PAN BRAKE
754125 BP-1272 12GA X 72 FLOOR BOX and PAN BRAKE
754130 BP-1672 16GA X 72 FLOOR BOX and PAN BRAKE
754115 BPF-16100 , 100 X 16 GAUGE FLOOR BOX and PAN BRAKE
754200 S-48N Stand for 48 in Hand or BP Brake



jet 40 x 12 box and pan brake
752125 Manual

To accommodate the amount of space in your shop, as well as forming and shaping the needs of your operation, JET Bench Box and Pan Brakes are designed to offer superior versatility, strength, accuracy and durability. Finger width assortments and removable finger sections enhance overall productivity in your facility. JET Brakes are built rugged to provide superior satisfaction bend after bend.

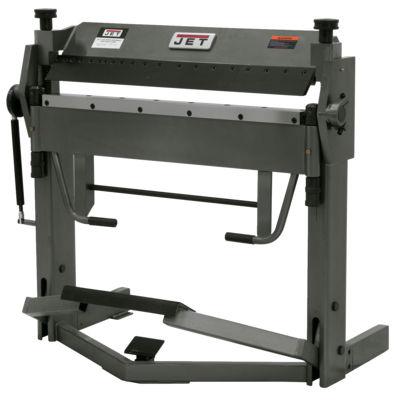

The Jet 40 inch x 12Ga Box and Pan Brake Foot Clamp
has a 2 Year warranty

  • Wide Assortment of Finger widths allow greater versatilty in the shop
  • Black Ceramic Coated Fingers prevent rust and ensue longer finger life
  • All body sections are welded steel plate with heavy truss rods and braces designed to give greater strength and durability
  • Stop rod for repeatable bending
  • Material clamping is foot operated to save strain on back and arms
  • Air spring to assist in raising the clamping handle

jet 2 year warranty logo

Detailed Specifications
Part Number 752125
Style (Type) Floor Box and Pan
Mild Steel Capacity (Gauge) 12
Bending Length Capacity (In.) 40
Maximum Box Depth (In.) 2-1/2
Maximum Lift of Beam (In.) 1-7/8
Number and Width of Fingers (In.) 1 ea 1, 1-1/8, 1-3/8, 1-1/2, 1-3/4, 2, 3, 4, 6, 7-3/4, 10-5/8
Finger Nose Angle (Deg.) 42
Nose Radius (In.) 1/32
Overall Dimensions (L x W x H) (In.) 58 x 25 x 50
Weight (Lbs.) 705
Height 50.0000
Length 58.0000
Weight 705.0000
Width 25.0000
jet 40 x 12 box and pan brake
752127 Manual

To accommodate the amount of space in your shop, as well as forming and shaping the needs of your operation, JET Bench Box and Pan Brakes are designed to offer superior versatility, strength, accuracy and durability. Finger width assortments and removable finger sections enhance overall productivity in your facility. JET Brakes are built rugged to provide superior satisfaction bend after bend.

 The Jet 50 inch x 14Ga Box & Pan Brake Foot Clamp has a 2 Year warranty
  • Wide Assortment of Finger widths allow greater versatility in the shop
  • Black Ceramic Coated Fingers prevent rust and ensure longer finger life
  • All body sections are welded steel plate with heavy truss rods and braces designed to give greater strength and durability
  • Stop rod for repeatable bending
  • Material clamping is foot operated to save strain on back and arms
  • Air spring to assist in raising the clamping handle

jet 2 year warranty logo

Detailed Specifications
Part Number 752127
Style (Type) Floor Box and Pan
Mild Steel Capacity (Gauge) 14
Bending Length Capacity (In.) 50
Maximum Box Depth (In.) 2-1/2
Maximum Lift of Beam (In.) 1-7/8
Number and Width of Fingers (In.) 1 ea 1, 1-1/8, 1-3/8, 1-1/2, 1-3/4, 2, 3, 4, 6, 7-3/4, 10, 10-5/8
Finger Nose Angle (Deg.) 42
Nose Radius (In.) 1/32
Overall Dimensions (L x W x H) (In.) 67 x 28 x 50
Weight (Lbs.) 900
Height 67.0000
Length 50.0000
Weight 900.0000
Width 28.0000

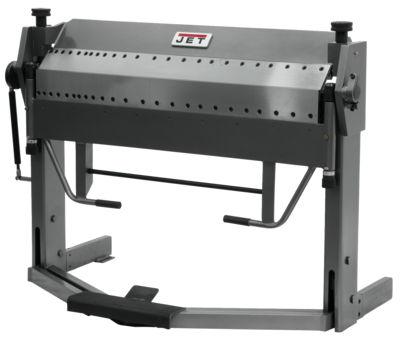

PBF-1650D 16GAX50 DUAL SIDED BOX&PAN W/F PBF-1650D 16GAX50 DUAL SIDED BOX and PAN W/F
has a 2 Year warranty
  • All body sections are welded steel plate with heavy truss rods and braces designed to give greater strength and durability
  • Hardened and ground fingers
  • Rubber stops on rear of lower arm to prevent contact with support frame
  • Non-skid foot pedal
  • Set lower beam parallelism more accurately with graduated scale on each side
  • Removable upper fingers and on the apron for greater versatility in making custom bends
  • Repeat bends are easy with a quick turn of the stop collar on the stop rod
  • Hydraulic spring to assist in raising the apron reduces strain on the operator
  • Large easy to use foot clamp allows the operator hands free clamping

jet 2 year warranty logo

Detailed Specifications PBF-1650D
Stock Number 752130
Model Number PBF-1650D
Mild Steel Capacity (Gauge) 16
Bending Length Capacity (In.) 50
Maximum Box Depth (In.) 2-1/2
Number and Width of Fingers (In.) 1 ea at 1, 1-1/8, 1-3/8, 1-1/2, 1-3/4, 2, 3, 4, 6, 7-3/4, 10, 10-5/8
Finger Nose Angle (Deg.) 45
Nose Radius (In.) N/A
Overall Dimensions (L x W x H) (In.) 67-3/8 x 28 x 51-1/2
Weight (Lbs.) 849
Max. Clamping Bar Lift 1.81
Height 51.5000
Length 67.3800
Weight 849
Width 28

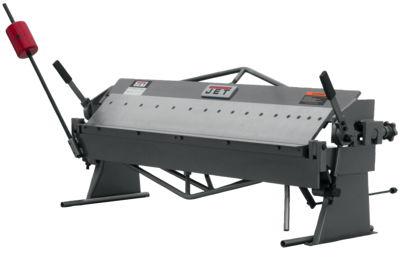

754105 BPB-1650, 50" x 16 Gauge Bench Model Box & Pan Brakejet 2 year warranty logo

Shown with optional stand


BPB-1650, 50 inch x 16 Gauge Bench Model Box & Pan Brake
has a 2 Year warranty
  • Incorporates all the features of our standard hand brakes but with greater range of applications
  • With fingers installed it can be used as a full-length nose bar, turning the machine into a straight bending brake
  • Stop rod for repeatable bending
  • Sectioned fingers are easily removed for box bending and special forming operations
  • Total of 16 assorted size section fingers
Detailed Specifications
Part Number 754105
Style (Type) Bench Box and Pan
Mild Steel Capacity (Gauge) 16
Bending Length Capacity (In.) 50
Maximum Box Depth (In.) 4
Maximum Lift of Beam (In.) 1-1/4
Beam Adjustment (Front to Rear) (In.) 5/8
Number and Width of Fingers (In.) 16 ( 4 at 2in, 6 at 3in, 6 at 4in)
Finger Nose Angle (Deg.) 45
Nose Radius (In.) 1/32
Overall Dimensions (L x W x H) (In.) 66 x 23-1/4 x 32-1/4
Weight (Lbs.) 448

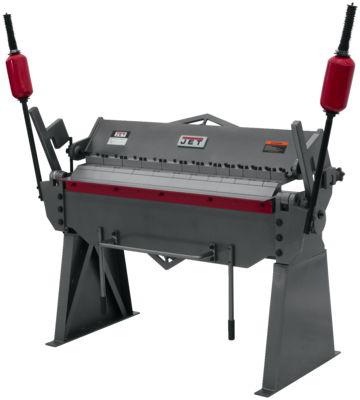

754110 BPB-1248, 48" x 12 Gauge Floor Model Box and Pan Brake 754110 BPF-1248, 48 inch x 12 Gauge Floor Model Box and Pan Brake
has a 2 Year warranty
  • Wide assortment of finger widths allow greater versatility in the shop
  • With fingers installed it can be used as a full-length nose bar, turning the machine into a straight bending brake
  • All body sections are welded steel plate with heavy truss rods and braces designed to give greater strength and durability
  • Both the bed and apron are bored in line to assure the utmost accuracy
  • Counter weights can be moved up or down to adjust desired leverage
  • Stop rod for repeatable bending
  • 12 gauge maximum capacity for mild-steel
  • 10 gauge maximum capacity for aluminum and copper alloys
  • 16 gauge maximum capacity for stainless steel

jet 2 year warranty logo

Detailed Specifications BPB-1248
Part Number 754110
Style (Type) Floor Box and Pan
Mild Steel Capacity (Gauge) 12
Bending Length Capacity (In.) 48
Maximum Box Depth (In.) 4
Maximum Lift of Beam (In.) 1-1/2
Beam Adjustment (Front to Rear) (In.) 7/8
Number and Width of Fingers (In.) 12 ( 5 at 3in, 2 at 4in, 5 at 5in)
Finger Nose Angle (Deg.) 45
Nose Radius (In.) 1/32
Overall Dimensions (L x W x H) (In.) 87 x 59 x 70
Weight (Lbs.) 1,110

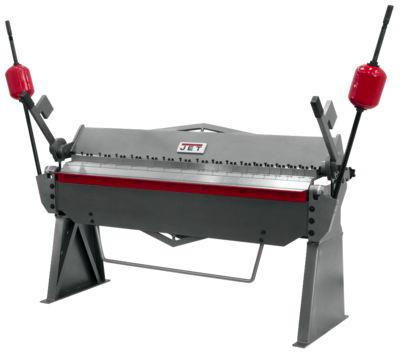

BP-1272 12GA x72" FLOOR BOX & PAN BRAKE BP-1272 12GA x72 inch FLOOR BOX & PAN BRAKE
has a 2 Year warranty
  • All body sections are welded steel plate with heavy truss rods and braces designed to give greater strength and durability
  • Both the bed and apron are bored in line to assure the utmost accuracy
  • Soft grips on top of counter weight bar to prevent damaging the operator's hands
  • Tool less angle stop
  • Soft touch handle grips
  • With all fingers installed it can be used as a full-length nose bar, turning the machine into a straight bending brake
  • Wide assortment of finger widths allows greater versatility in the shop
  • Repeat bends are easy with a quick turn of the stop collar on the stop rod
  • Counter weights can be moved up or down to provide leverage

jet 2 year warranty logo

Detailed Specifications BP-1272 and BP-1672
STOCK NO. 754125 754130
Model Number BP-1272 BP-1672
Mild Steel Capacity (Gauge) 12 16
Bending Length Capacity (In.) 72 72
Maximum Degree of Bend 135 degree 135 degree
Maximum Lift of Beam (In.) 2.2 2.2
Maximum Box Depth (In.) 4 4
Beam Adjustment (In./front to rear) 2 2
Number and Width of Fingers (In.) 6at3, 3at4, 6at5, 2at6 6at3, 3at4, 6at5, 2at6
Finger Nose Angle (Deg.) 45 45
Nose Radius (In.) 1/32 1/32
Overall Dimensions (LxWxH) (In.) 100 x 30 x 41 100 x 30 x 41
Net Weight (Lbs.) 2182 1960
Gross Weight (Lbs.) 2535 2290

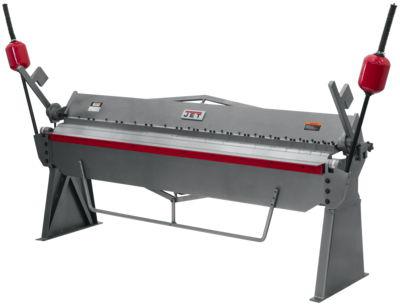

754115 BPB-16100, 100" x 14 Gauge Floor Model Hand Brake 754115 BPB-16100, 100 inch x 16 Gauge Floor Model Hand Brake
has a 2 Year warranty
  • Wide assortment of finger widths allow greater versatility in the shop
  • With fingers installed it can be used as a full-length nose bar, turning the machine into a straight bending brake
  • All body sections are welded steel plate with heavy truss rods and braces designed to give greater strength and durability
  • Both the bed and apron are bored in line to assure the utmost accuracy
  • Counter weights can be moved up or down to adjust desired leverage
  • Stop rod for repeatable bending
  • 16 gauge maximum capacity for mild-steel
  • 14 gauge maximum capacity for aluminum and copper alloys
  • 18 gauge maximum capacity for stainless steel
jet 2 year warranty logo
Detailed Specifications BPB-16100
Part Number 754115
Style (Type) Floor Box and Pan
Mild Steel Capacity (Gauge) 16
Bending Length Capacity (In.) 100
Maximum Box Depth (In.) 4
Maximum Lift of Beam (In.) 2-1/4
Beam Adjustment (Front to Rear) (In.) 1
Number and Width of Fingers (In.) 15 (4 at 12in, 4 at 6in, 3 at 5in, 1 at 4in, 1 at 3-1/2in, 1 at 3in, 1 at 2-1/2in)
Finger Nose Angle (Deg.) 45
Nose Radius (In.) 1/32
Overall Dimensions (L x W x H) (In.) 140 x 30 x 76
Weight (Lbs.) 2,450



jet 2 year warranty logo 2 YEAR WARRANTY AND SERVICE
WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Jet tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.







JT9-752125
40 X 12GA BOX & PAN BRAKE FOOT CLAMP
JET FALL METAL SALE - PRICE REFLECTS AN ADDITIONAL 20% OFF OUR ALREADY GREAT PRICE **SALE ENDS 11/30/2023 OR WHILE SUPPLIES LAST - PROMO CODE: JET28922
Mfg. item #: JT9-752125
WMH752125
lease to own for as little as:$58 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$2,919.20

27
JT9-752127
50 X 14GA BOX & PAN BRAKE FOOT CLAMP
JET FALL METAL SALE - PRICE REFLECTS AN ADDITIONAL 20% OFF OUR ALREADY GREAT PRICE **SALE ENDS 11/30/2023 OR WHILE SUPPLIES LAST - PROMO CODE: JET28922
Mfg. item #: JT9-752127
WMH752127
lease to own for as little as:$66 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$3,287.20

27
JT9-752130
PBF-1650D 16GA X 50 DUAL SIDED BOX & PAN
JET FALL METAL SALE - PRICE REFLECTS AN ADDITIONAL 20% OFF OUR ALREADY GREAT PRICE **SALE ENDS 11/30/2023 OR WHILE SUPPLIES LAST - PROMO CODE: JET28922
Mfg. item #: JT9-752130
WMH752130
lease to own for as little as:$71 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$3,551.20

27
JT9-754105
BPB-1650 BENCH BOX & PAN BRAKE
JET FALL METAL SALE - PRICE REFLECTS AN ADDITIONAL 20% OFF OUR ALREADY GREAT PRICE **SALE ENDS 11/30/2023 OR WHILE SUPPLIES LAST - PROMO CODE: JET28922
Mfg. item #: JT9-754105
WMH754105
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$1,674.72

27
JT9-754110
BPF-1248 FLOOR BOX & PAN BRAKE
JET FALL METAL SALE - PRICE REFLECTS AN ADDITIONAL 20% OFF OUR ALREADY GREAT PRICE **SALE ENDS 11/30/2023 OR WHILE SUPPLIES LAST - PROMO CODE: JET28922
Mfg. item #: JT9-754110
WMH754110
lease to own for as little as:$86 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$4,279.20

27
JT9-754125
BP-1272 12GA X72 FLOOR BOX & PAN BRAKE
JET FALL METAL SALE - CALL 800-458-3687 X1 FOR YOUR EXCLUSIVE BROTHER-IN-LAW PRICE **SALE ENDS 11/30/2023 OR WHILE SUPPLIES LAST - PROMO CODE: JET28922
Mfg. item #: JT9-754125
WMH754125
lease to own for as little as:$139 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$7,063.20

27
JT9-754130
BP-1672, 16GA X 72 FLOOR BOX AND PAN BRAKE, MADE IN CHINA, SHIPS VIA LTL TRUCK FREIGHT-DOCK & WEIGHT = 2290 LBS
CALL 800-458-3687 X1 OR ADD TO CART FOR OUR EXCLUSIVE BROTHER-IN-LAW DEAL ON THIS JET ITEM, DOING BUSINESS SINCE 1926!
Mfg. item #: JT9-754130
WMH754130
lease to own for as little as:$152 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$7,819.00

27
JT9-754115
FALL SALE - JM831EXO - BPF-16100 FLOOR BOX & PAN BRAKE
SAVE UPTO 20% ON THIS ITEM, LIMITED QUANTITY, CALL 800-458-3687 X1 FOR BROTHER-IN-LAW PRICE & AVAILABILITY **SALE ENDS 10/31/23
Mfg. item #: JT9-754115
WMH754115
lease to own for as little as:$186 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$9,503.20

27
JT9-754200
STND FOR HND OR BOX&PAN BRKS (TEXT)
JET FALL METAL SALE - PRICE REFLECTS AN ADDITIONAL 20% OFF OUR ALREADY GREAT PRICE **SALE ENDS 11/30/2023 OR WHILE SUPPLIES LAST - PROMO CODE: JET28922
Mfg. item #: JT9-754200
WMH754200
Factory Direct Ship - Free Shipping ONLY when added to JET, Powermatic or Baileigh Equipment8
$468.20

27
Copyright © 2023 Smith-Hamilton, Inc
0.009 230815 14:01
