Jet 14 inch Vertical Metal / Wood Bandsaw

J-8201K, 14" Metal/Wood Vertical Bandsaw

jet 2 year warranty logo

J-8203K, 14" Metal/Wood Vertical Bandsaw
J-8201K, 14 inch Metal/Wood Vertical Bandsaw J-8203K, 14 inch Metal/Wood Vertical Bandsaw





Click here to download manual

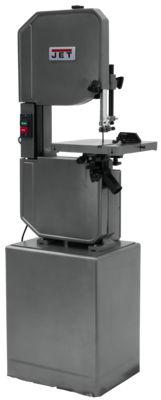

J-8201K, 14 inch Metal/Wood Vertical Bandsaw 414500

The line of JET Metal/Wood Vertical Bandsaws offers machine and fabrication professionals all the power and precision in a package that meets their individual specifications. JET has engineered a gear box that permits cutting of a great variety of materials, then backed it with the industry leading two year warranty

Features:
  • For added safety, the J-8201K follows strict guidelines and electrical requirements to be certified by CSA Group
  • Solid one piece steel base for extra stability
  • Conveniently located on/off switch
  • Gear box design allows wood/metal model saws to be used for a wider variety of metal, wood, non-ferrous metal and plastic cutting applications
  • Miter gauge
  • Dust chute
  • Adjustable table
  • 14 TPI Metal Cutting Blade Included
  • 6 TPI Wood Cutting Blade Included



Specifications
Blade Speeds Metal (SFPM) 39, 57, 78, 107, 142, 196, 278
Blade Speeds Wood (SFPM) 3,300
Height Capacity (Max.) (In.) 6
Throat Capacity (In.) 13-1/2
Table Size (L x W) (In.) 14 x 14
Table Tilt to Right (Deg.) 45
Table Tilt to Left (Deg.) 15
Blade Size (In.) 3/8 x .025 x 92-1/2
Blade Length (In.) 92-1/2
Blade Width (Min.-Max.) (In.) 1/8 - 3/4
Table Height (In.) 44
Motor (HP) 1 HP, 115/230V, 1Ph
Overall Dimensions (L x W x H) (In.) 25-1/2 x 22-3/8 x 73-1/2
Weight (Lbs.) 280

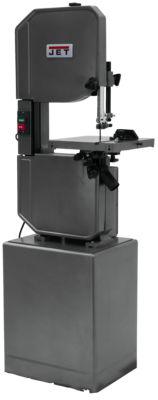

J-8203K, 14 inch Metal/Wood Vertical Bandsaw 414504C

The line of JET Metal/Wood Vertical Bandsaws offers machine and fabrication professionals all the power and precision in a package that meets their individual specifications. JET has engineered a gear box that permits cutting of a great variety of materials, then backed it with the industry leading two year warranty

Features

  • For added safety, the J-8203K follows strict guidelines and electrical requirements to be certified by CSA Group
  • Solid, one-piece steel, base for extra stability
  • Conveniently located on/off switch
  • Variable speed drive system (8201VS)
  • Gear box design allows wood/metal model saws to be used for a wider variety of metal, wood, non-ferrous metal and plastic cutting applications
  • Miter gauge
  • Dust chute
  • Adjustable table
  • 14 TPI Metal Cutting Blade Included
  • 6 TPI Wood Cutting Blade Included
Specifications
Blade Speeds Metal (SFPM) 39, 57, 78, 107, 142, 196, 278
Blade Speeds Wood (SFPM) 3,300
Height Capacity (Max.) (In.) 6
Throat Capacity (In.) 12
Table Size (L x W) (In.) 14 x 14
Table Tilt to Right (Deg.) 45
Table Tilt to Left (Deg.) 15
Blade Size (In.) 3/8 x .025 x 92-1/2
Blade Length (In.) 92-1/2
Blade Width (Min.-Max.) (In.) 1/8 - 3/4
Table Height (In.) 44
Overall Dimensions (H x W x D) (In.)
Motor (HP) 1 HP, 230/460V, 3Ph
Overall Dimensions (L x W x H) (In.) 25-1/2 x 22-3/8 x 73-1/2
Weight (Lbs.) 280



jet 2 year warranty logo 2 YEAR WARRANTY AND SERVICE
WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Jet tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.

JET Red Assurance

At JET not only do we warranty every product we develop, but we ensure that our after sale service and support is number 1. Our customer rated 9 out of 10 Customer Service, Technical Support, 40,000 plus unique parts in stock, and leading warranties guarantee we have the industrys most dependable service and support program.

If a JET tool needs service or repair, one of our 750 Authorized Service Centers located in all 50 states can assist you. In most cases Authorized Service Centers can perform a warranty repair, assist in obtaining replacement parts, perform routine maintenance, and perform a major repair on your JET Tool. For the name and locationof an Authorized Service Center in your area call 1 (800) 274-6848.

From here forward, look for our JET RED Assurance stamp. Whenyou see this logo you can rest assured that behind every product isdecades of Reliability, Expertise, and Dependability.

Models and Accessories
414500 J-8201K, 14 inch Metal/Wood Vertical Bandsaw
414504C J-8203K, 14 inch Metal/Wood Vertical Bandsaw
5782171 Rip Fence for J-8201K 14 inch Bandsaw



JT9-414500
Mfg. item #: JT9-414500
WMH414500
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$2,289.00

11
JT9-414504C
Mfg. item #: JT9-414504C
WMH414504C
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$2,289.00

11
5782171
Mfg. item #: 5782171
WMH5782171
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

702
