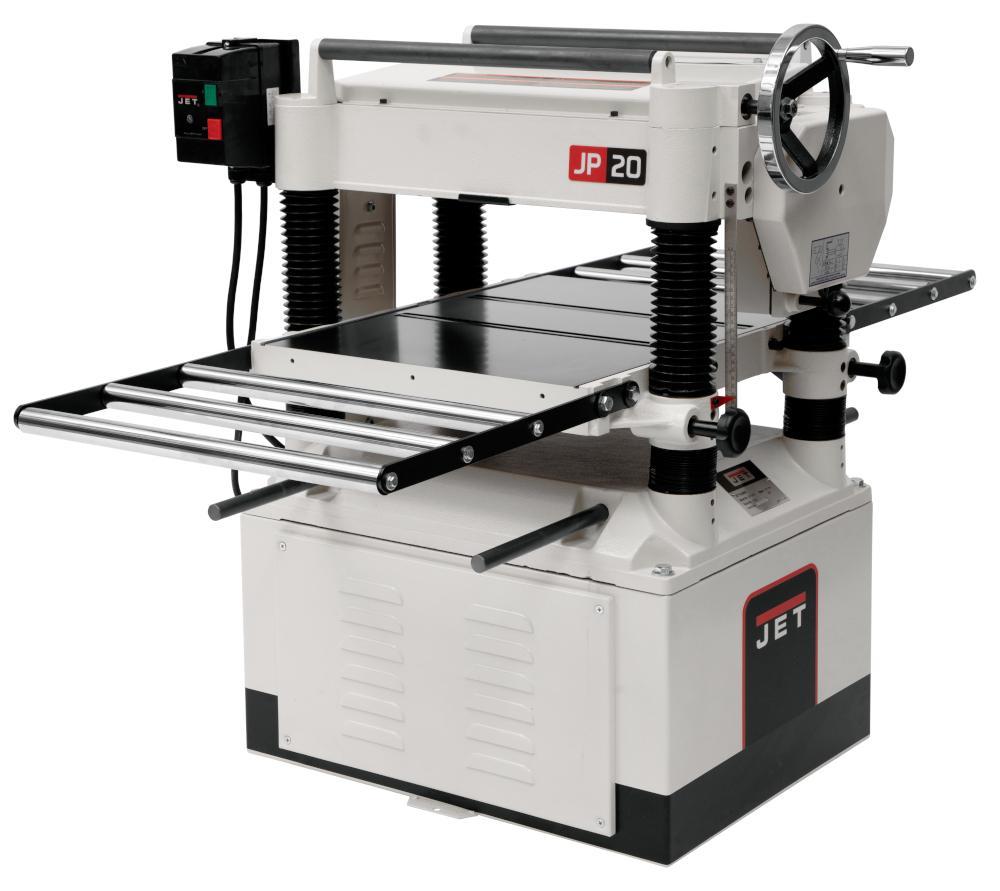

The JET JWP-208-1 planer quickly and quietly transforms rough lumber into smooth boards, with a full 20 inch planing width. Its heavy-duty cast iron and steel
construction keeps the workpiece steady and supported, while the conveniently located two-speed gear box allows for quick and easy feed rate adjustments. This machine means business with a powerful
3 HP induction motor. You will appreciate the sets of three steel infeed and outfeed rollers to help prevent annoying snipe. A large cast-iron table with smooth-as-glass surface makes this planer a
beautiful addition to the shop. And since planers kick up a lot of dust, we made dust collection easy with an exclusive angled 4 inch dust port to keep your hose out of the way.
|
Part Number
|
708528
|
|
Maximum Planing
|
20 inch
|
|
Maximum Planing Thickness
|
8 inch
|
|
Maximum Full Width Depth of Cut
|
3/32 inch
|
|
Minimum Planing Length
|
6-3/4 inch
|
|
Cutterhead Diameter
|
3-3/16 inch
|
|
Cutterhead Speed
|
5000 RPM
|
|
Feed Rate
|
24 and 31 FPM
|
|
Number of Knives
|
4
|
|
Table Size
|
25-3/4 x 20 inch
|
|
Dust Port Diameter
|
5 inch
|
|
Dust Collection Minimum CFM Required
|
400 cu.ft/min
|
|
Blade Size
|
20 x 1 x 1/8 inch
|
|
Amps
|
14 A
|
|
Motor Power
|
3 HP
|
|
Motor Phase
|
1 Ph
|
|
Motor Voltage
|
230 V
|
|
Family Description
|
20 inch WOODWORKING PLANER
|
|
Model Number
|
JWP-208-1
|
|
Brand
|
Jet
|
|
Overall Dimensions
|
26 x 36-5/8 x 41-3/8
|
|
Height
|
43 inch
|
|
Width
|
37.5 inch
|
|
Length
|
29.5 inch
|
|
Net Weight
|
640 pound
|

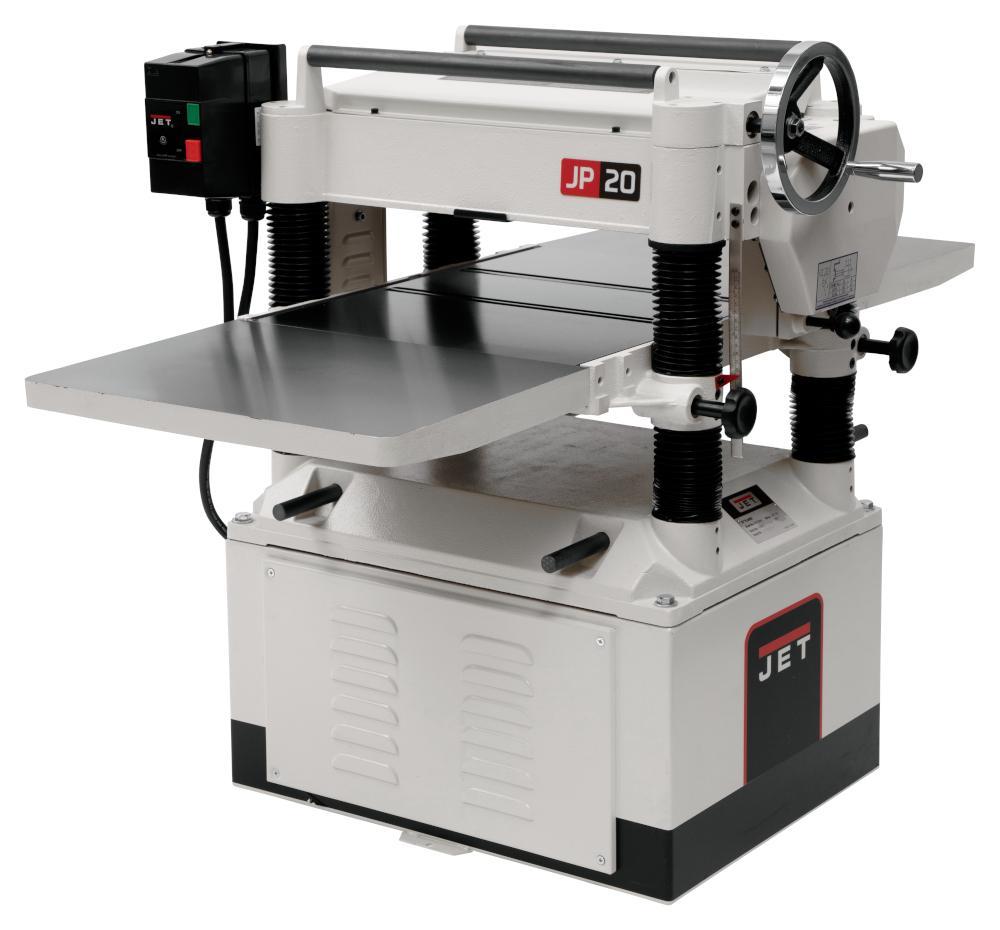

JWP-208HH, 20 inch Planer 5HP 1Ph, Helical Head
JWP-208HH-1 helical head planer quickly and quietly transforms rough lumber into smooth boards, with a full 20 inch planing width. Its heavy-duty cast iron and steel
construction keeps the workpiece steady and supported, while the conveniently located two-speed gear box allows for quick and easy feed rate adjustments. This machine means business with a powerful
5 HP induction motor combined with a helical insert cutterhead housing 92 staggered carbide knives. Youll appreciate the sets of three steel infeed and outfeed rollers to help prevent annoying
snipe. A large cast-iron table with smooth-as-glass surface makes this planer a beautiful addition to the shop.
Features:
-
Helical cutterhead with indexable carbide inserts for a superior finish and quieter cut
-
Heavy-duty cast iron and steel construction for added strength and durability
-
Two-speed gear box with automatic chain tensioner lets you adjust the feed rate to meet your needs
-
Large, cast iron, precision ground table for precise workpiece support
-
Powerful 5 HP TEFC induction motor with three V-belt transmission for smooth and consistent power
-
Positive gear drive moves table quickly and accuratelyCast iron infeed and outfeed tables come with the machine
-
Large handwheel with positive gear drive allows for quick and accurately table adjustments1/16 inch increment height scale lets you make the most precise
adjustments for fine cuts
-
5 inch dust port provides efficient chip and dust collection
-
One-piece welded steel base offers solid support and stability
-
Magnetic controls provide long life and reliability
|
Specifications
|
|
Part Number
|
708544
|
|
Style (Type)
|
Floorstanding Model
|
|
Knife Size (L x W x T)
|
15 x 15 x 2.5
|
|
Cutterhead Speed (RPM)
|
5000
|
|
Cutterhead Diameter (In.)
|
3-3/16
|
|
Number of Knives
|
92 Four-Sided Inserts
|
|
Maximum Full Width Depth of Cut (In.)
|
3/32
|
|
Maximum Planing Width (In.)
|
20
|
|
Maximum Planing Thickness (In.)
|
8
|
|
Minimum Planing Length (In.)
|
6-3/4
|
|
Feed Rate (FPM)
|
24/31
|
|
Number of Speeds
|
2
|
|
Table Size (L x W) (In.)
|
25-3/4 x 20
|
|
Dust Collection Minimum CFM Required (CFM)
|
400
|
|
Dust Port Outside Diameter (In.)
|
5
|
|
Motor Power (HP)
|
5
|
|
Motor Phase (PH)
|
1
|
|
Motor Voltage (V.)
|
230
|
|
Prewired Voltage (V.)
|
230
|
|
Motor Amps
|
27
|
