Mi-T-M 80 Gal Gasoline Two Stage Air Com

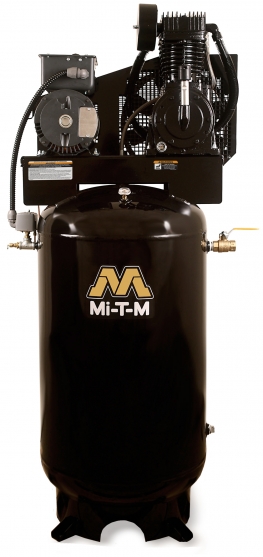

AAS-46305-80V air compressor

Click image to enlarge

2 year pump warranty csa certified
1 year motor warranty


View Product Sheet

  • Compressor Pump: Quality cast iron two stage compressor with venting system for reduced crankcase temperature and pressure, Splash lubricated cast iron crankcase to extend the hours of performance, Cast iron head and cylinder for extended durability, Stainless-steel braided discharge hose, Oil level sight indicator
  • Motor: Low RPM industrial motor
  • Frame: Powder coated ASME coded 80-gallon receiver tank, 3/16-inch base plate to reduce vibration, 14-gauge powder coated totally enclosed belt guard
  • Components: ASME safety valves, Belt tightening system pulls motor straight to ensure constant belt alignment, 16.5-inch fly wheel for extra cooling and longer life, Intake filter/silencer, Tank shut-off valve
Model AAS-46305-80V
CFM @ 175 PSI 17.8
HP/Motor 5.0/460V, 3ph, 6.9A
Bolt Down Dimensions (LxW) 15.63 x 15.63 inches
Net Weight 499 lbs.
Shipping Weight 570 lbs.
Length 33 in.
Width 25 in.
Height 73 in.

Mfg. item #: AAS-46305{00
Call for freight quote on this item or we will confirm freight charges before shipping.1
