Mi-T-M 30 Gal Gasoline Two Stage Air Com

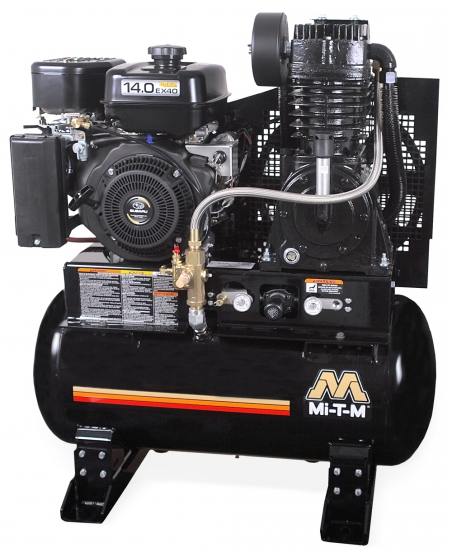

ABS-14S-30H air compressor

Click image to enlarge


2 year pump warranty
3 year engine warranty



View Product Sheet

  • Compressor Pump: Quality cast iron two stage compressor with venting system for reduced crankcase temperature and pressure, Splash lubricated cast iron crankcase to exten the hours of performance, Cast iron head and cylinder for extended durability, Stainless-steel braided discharge hose, Oil level sight indicator
  • Engine: Industrial Subaru OHC engine (Electric start standard - battery and cables not included), Pneumatic idle control to conserve fuel
  • Frame: 3/16-inch base plate to reduce vibration, 14-gauge powder coated totally enclosed belt guard, Tabbed design offers flexible installation, Powder coated ASME coded 30-gallon receiver tank
  • Components: Regulator and two gauges for tank and outlet pressure, ASME safety valves, Belt tightening system pulls engine straight to ensure constant belt alignment, 16.5-inch fly wheel for extra cooling and longer life, Tank shut-off valve
Specifications
Model ABS-14S-30H
CFM @ 175 PSI 29.0
Displacement/Engine 404 Subaru OHC
Bolt Down Dimensions (LxW) 23.75 x 13.5 inches
Net Weight 416 lbs.
Shipping Weight 480 lbs.
Length 42 in.
Width 19 in.
Height 45 in.

ABS-14S-30H
29.0 CFM @ 175 PSI 14.0 HP SUBARU-3
Mfg. item #: ABS-14S-30H
MTMABS-14S-30H
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price
