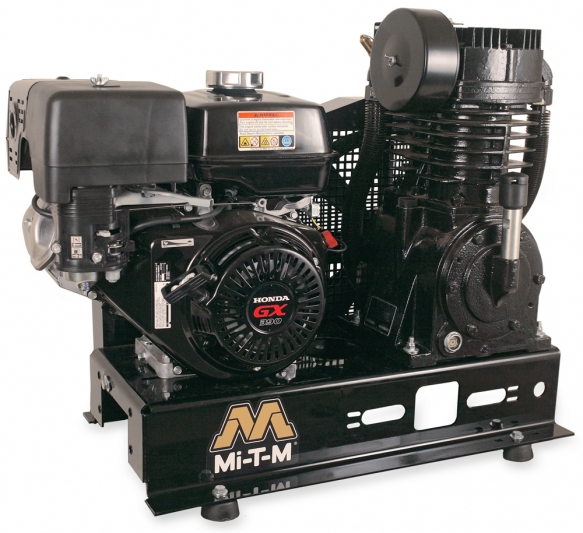

Mi-T-M Base Mount Air Compressor


ABS-14S-B air compressor

Click image to enlarge

3 year motor warranty
2 year pump warranty


View Product Sheet

  • Compressor Pump: Quality cast iron two stage compressor with venting system for reduced crankcase temperature and pressure, Splash lubricated cast iron crankcase to exten the hours of performance, Cast iron head and cylinder for extended durability, Stainless-steel braided discharge hose, Oil level sight indicator
  • Engine: Industrial Subaru OHC engine (Electric start standard - battery and cables not included), Pneumatic idle control to conserve fuel
  • Frame: 3/16-inch base plate to reduce vibration, 14-gauge powder coated totally enclosed belt guard, Tabbed design offers flexible installation
  • Components: Regulator and two gauges for tank and outlet pressure, ASME safety valves, Belt tightening system pulls engine straight to ensure constant belt alignment, 16.5-inch fly wheel for extra cooling and longer life, Tank shut-off valve
Model ABS-14S-B
CFM @ 175 PSI 29.0
Displacement/Engine 404cc Subaru OHC
Bolt Down Dimensions (LxW) 21 x 13.5 inches
Net Weight 215 lbs.
Shipping Weight 279 lbs.
Length 36.5 in.
Width 19 in.
Height 28 in.

29.0 CFM @ 175 PSI 14.0 HP SUBARU-N
Mfg. item #: ABS-14S-B
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price
