Mi-T-M 120 Gal Electric Two Stage Air Co

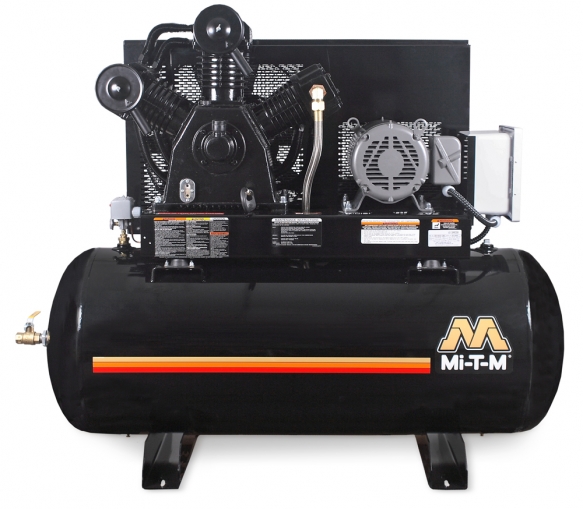

ADS-20310-120H air compressor

Click image to enlarge


2 year pump warranty
1 year motor warranty



View Product Sheet

  • Compressor Pump: Quality cast iron two stage compressor with venting system for reduced crankcase temperature and pressure, Splah lubricated cast iron crankcase to extend the hours of performance, Cast iron head and cylinder for extended durability, Stainless-steel braided discharge hose, Oil level sight indicator
  • Motor: Low RPM industrial motor
  • Frame: Powder coated ASME coded 120-gallon receiver tank, 3/16-inch base plate to reduce vibration, 14-gauge powder coated totally enclosed belt guard, Tabbed design offers flexible installation
  • Components: ASME safety valves, Belt tightening system pulls motor straight to ensure constant belt alignment, 20 7/8-inch fly wheel for extra cooling and longer life · Intake filter/silencer, Tank shut-off valve
Specifications
Model ADS-20310-120H
CFM @ 175 PSI 34.2
HP/Motor 10.0/200V, 3ph, 30.8A
Bolt Down Dimensions (LxW) 34.5 x 23.5 inches
Net Weight 785 lbs.
Shipping Weight 904 lbs.
Length 74 in.
Width 26.5 in.
Height 58 in.
Air Compressor Accessories
10 inch puncture proof tires 10-inch Puncture-Proof Tires
3/8-inch Filter/Regulator AT-4011-M 3/8-inch Filter/Regulator AT-4011-M
Air Chucks Air Chucks
Air Filter Canisters Air Filter Canisters
Air Filter Elements Air Filter Elements
Air Hoses Air Hoses
Air/Water Adapter Kit Air/Water Adapter Kit
Blow Guns Blow Guns
Brass Fittings Brass Fittings
Coupler Test Bar Coupler Test Bar
Couplers Couplers
Couplers/Plug Sets Couplers/Plug Sets
Electric Compressor Drain Electric Compressor Drain
Engine Oil Drain Kits Engine Oil Drain Kits
Filters Filters
Gauges Gauges
In-Line Lubricators In-Line Lubricators
leader hose Leader Hose
Plugs Plugs
Regulators Regulators
Replacement Pumps Replacement Pumps
Steel Hex Nipples Steel Hex Nipples



ADS-20310-120H
AIR COMPRESSOR 120 GAL H
Mfg. item #: ADS-20310-120H
MTMADS-20310{00
lease to own for as little as:$102 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$5,096.85
