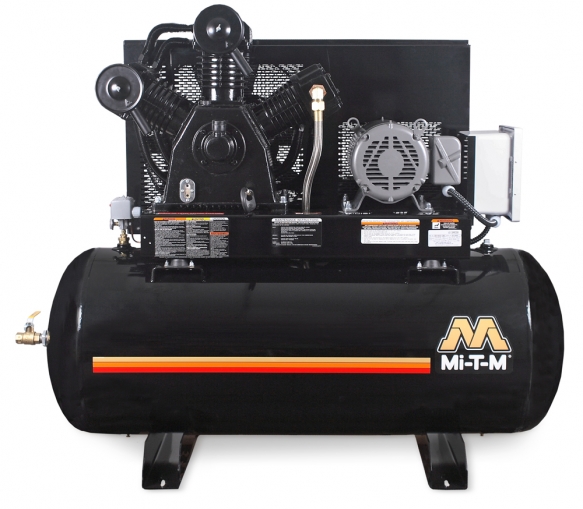

Mi-T-M 120 Gal Electric Two Stage Air Co
View Product Sheet
-
Compressor Pump: Quality cast iron two stage compressor with venting system for reduced crankcase temperature and pressure, Splah lubricated cast iron crankcase to
extend the hours of performance, Cast iron head and cylinder for extended durability, Stainless-steel braided discharge hose, Oil level sight indicator
-
Motor: Low RPM industrial motor
-
Frame: Powder coated ASME coded 120-gallon receiver tank, 3/16-inch base plate to reduce vibration, 14-gauge powder coated totally enclosed belt guard, Tabbed
design offers flexible installation
-
Components: ASME safety valves, Belt tightening system pulls motor straight to ensure constant belt alignment, 20 7/8-inch fly wheel for extra cooling and longer
life, Intake filter/silencer, Tank shut-off valve
Specifications
|
Model
|
ADS-46310-120H
|
CFM @ 175 PSI
|
34.2
|
HP/Motor
|
10.0/460V, 3ph, 13.4A
|
Bolt Down Dimensions (LxW)
|
34.5 x 23.5 inches
|
Net Weight
|
785 lbs.
|
Shipping Weight
|
904 lbs.
|
Length
|
74 in.
|
Width
|
26.5 in.
|
Height
|
58 in.
|
AIR COMPRESSOR 120 GAL H
Mfg. item #: ADS-46310-120H
MTMADS-46310{00
lease to own for as little as:$105 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
