Mi-T-M 120 Gal Electric Two Stage Air Co

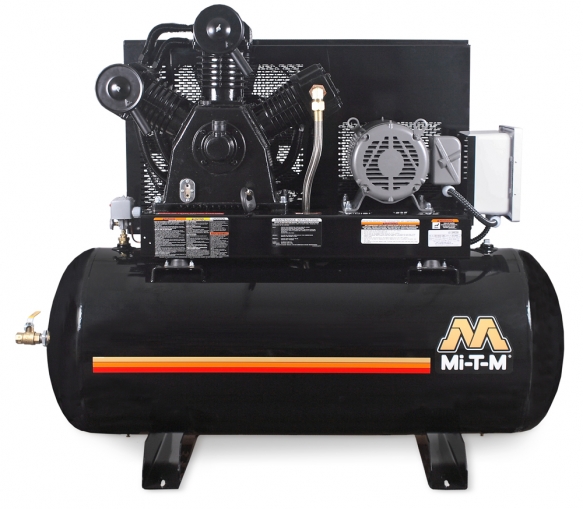

AES-46315-120H air compressor

Click image to enlarge

2 year pump warranty
1 year motor warranty


View Product Sheet

  • Compressor Pump: Quality cast iron two stage compressor with venting system for reduced crankcase temperature and pressure, Splah lubricated cast iron crankcase to extend the hours of performance, Cast iron head and cylinder for extended durability, Stainless-steel braided discharge hose, Oil level sight indicator
  • Motor: Low RPM industrial motor
  • Frame: Powder coated ASME coded 120-gallon receiver tank, 3/16-inch base plate to reduce vibration, 14-gauge powder coated totally enclosed belt guard, Tabbed design offers flexible installation
  • Components: ASME safety valves, Belt tightening system pulls motor straight to ensure constant belt alignment, 24 3/4-inch fly wheel for extra cooling and longer life, Intake filter/silencer, Tank shut-off valve

Model AES-46315-120H
CFM @ 175 PSI 46.5
HP/Motor 15.0/460V, 3ph, 19.0A
Bolt Down Dimensions (LxW) 34.5 x 23.5 inches
Net Weight 876 lbs.
Shipping Weight 995 lbs.
Length 74 in.
Width 26.5 in.
Height 58 in.

Mfg. item #: AES-46315-120H
lease to own for as little as:$123 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
