Mi-T-M AG Single Stage Air Compressor Ge

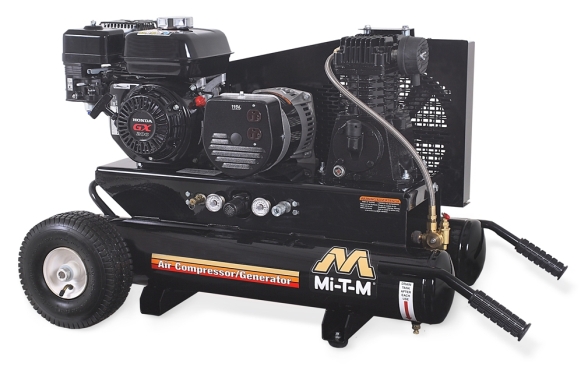

AG1-PH65-08M1 air compressor

Click image to enlarge

2 year pump warranty nema 5-15r
3 year motor warratny


View Product Sheet

  • Compressor Pump: Quality cast iron single stage compressor, Durable stainless-steel braided discharge hose for longer life, Splash lubricated cast iron crankcase to extend the hours of performance, Cast iron head for heat dissipation, Large canister intake filter
  • Generator: Brushless alternator, Industrial 1800-watt generator with two NEMA 5-15R receptacles
  • Engine: Industrial Honda OHV engine
  • Frame: Powder coated 8-gallon twin tank receivers, 3/16-inch base plate to reduce vibration, 14-gauge powder coated two-piece belt guard with 1/4-turn release for quick access to belts, Convenient lifting handles, Pneumatic tires with tubes and steel hubs
  • Components: Regulator and two gauges for tank and outlet pressure, Manual drain valves for proper maintenance, 12-inch flywheel for extra cooling and longer life, Quality pilot valve unloader, Belt tightening system pulls engine straight to ensure constant belt alignment
Model AG1-PH65-08M1
CFM @ 100 PSI 11.6
CFM @ 125 PSI 10.9
Max. AC Output 1800 watts
Continuous with Compressor On Load 600 watts
Continuous with Compressor Off Load 1600 watts
Receptacles (2) NEMA 5-15R
Displacement/Engine 196cc Honda OHV
Net Weight 207 lbs.
Shipping Weight 257 lbs.
Length 44.5 in.
Width 26 in.
Height 27.5 in.

Mfg. item #: AG1-PH65-08M1
Call for freight quote on this item or we will confirm freight charges before shipping.1
