Mi-T-M 8 Gal Gasoline Single Stage Air C

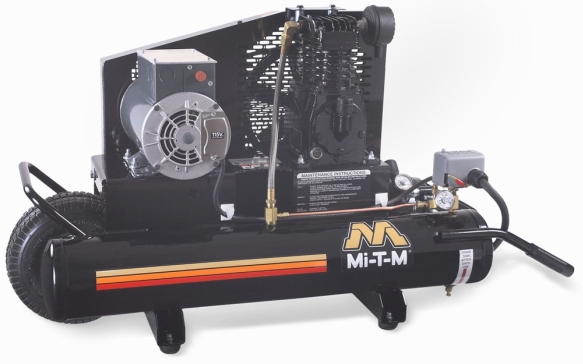

8-Gallon Single Stage Electric






AM1-PE02-08M

The popular 8-gallon electric air compressor features advanced technology and performance so you can power up everything from drills to grinders and paint guns. Its portability makes it a great choice on many jobsites.

Compressor Pump: Quality cast iron single stage compressor · Stainless-steel braided discharge hose · Splash lubricated cast iron crankcase to extend the hours of performance Â· Cast iron head for heat dissipation · Large canister intake filter · Oil level sight indicator

Motor: Industrial UL-listed electric motor · Auto start/stop (continuous run optional) · Thermal overload protection

Frame: Powder coated 8-gallon twin tank receivers · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard with 1/4-turn release for quick access to belts · Convenient lifting handles · 10-inch flat-free tire

Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · Industrial grade pressure switch · 10-inch flywheel for extra cooling and longer life Â· Belt tightening system pulls engine straight to ensure constant belt alignment

Specifications
Model AM1-PE02-08M
CFM at 90 PSI 9.2
HP/Motor 2.0/120V, 18.8A Electric
Compressor Single stage, cast iron
Plug Type NEMA 5-20P
Net Weight 183 lbs.
Shipping Weight 203 lbs.
Length 44.5 in.
Width 18.5 in.
Height 25 in.
Options
AX-0078 Stationary option
AX-0005 Dual control - continuos run and auto start/stop
AX-0003 Manual drain/regulator/metal bowl
AX-0002 Auto drain/regulator/plastic bowl



AM1-PE02-08M
Mfg. item #: AM1-PE02-08M
MTMAM1-PE02-08M
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$1,028.01

80
AX-0078
Mfg. item #: AX-0078
MTMAX-0078
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
Call for Price

80
AX-0005
Mfg. item #: AX-0005
MTMAX-0005
FREE shipping when ordered with a machine from this manufacturer.20
$98.42

80
AX-0003
Mfg. item #: AX-0003
MTMAX-0003
FREE shipping when ordered with a machine from this manufacturer.20
$185.55

80
AX-0002
Mfg. item #: AX-0002
MTMAX-0002
FREE shipping when ordered with a machine from this manufacturer.20
$252.81

80
